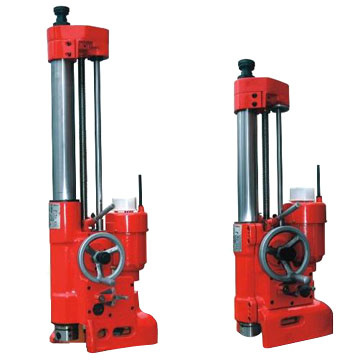

Cylinder Boring Machine

Name: Cylinder Boring Machine
Brand: ibuyautoparts.com
SKU: 400072525
Availability: InStock
Rating: 4.6 (115 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1Set
Pay Type:	T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

This boring machine is mainly used for reboring engine cylinders of motor cycles, automobiles and middle and small tractors.To conduct the reboring operation, the machine can be set directly onto the cylinder block by aligning its boring bar with the cylinders axis and clamped by means of an anchoring device.

Model	Boring diameter	Max. boring depth	Spindle speed	Spindle feed	Spindle rapid reset
T8014A	Φ 65- Φ 140 mm	300 mm	250;380 r/min	0.11 mm / r	636 mm / min
T8016A	Φ 80- Φ 165 mm	400 mm	200;300 r/min	0.12 mm / r	780 mm / min

Model	Motor			Overall dimensions	Packing dimensions	Weight
Model	Voltage	Power	Speed	Overall dimensions	Packing dimensions	Weight
T 8014A	220/380 V	0.25/0.37 Kw	1440 r/min	320×330×850 mm	540×470×1030 mm	62 Kgs
T 8016A	220/380 V	0.25/0.37 Kw	1440 r/min	360×345×1100 mm	500×490×1270 mm	85 Kgs

Prod Model:	T8014A/T8016A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

SJMC Corporation, founded in 1997, is a national foreign-trade company combined with production and technology which is wellknown in supplying the service of Overall Mechanical processing solution in the filed.

SJMC' products are widely used in automotive, manufacturing, aerospace and defense, construction and farming equipments, oil and energy field, mold and die industries, etc. From the beginning, our company made it as our mission to provide machines of good quality at competitive price to all customers. Rely on good relationships with many famous manufactories and final assembly these inputed products in our house to realize our concept of reducing the cost.

SJMC Machines involve all kinds of machine tools and motor maintenance equipments, e. G. Vertical and horizontal machining centers, lathe, milling machine, drilling machine, boring machine, grinder, measuring equipments etc. Which offer users high throughput, high quality, reliable solution and cost effective to production machining operations.

SJMC has developed successfully of its own corporate philosophy of High quality, Cost effective, first-rate service and has underpinned the development of world's manufacturing by offering machine tools that satisfy manufacturing makers. These years, SJMC has set up close business co-operation with many companies in the world through good services and mutual trust.

Choosing SJMC as your machining partner, you are free to imagine a more productive, cost effective solution and we assure you that we can together to make your dream come true.
