Cylinder Block Surface Grinding-Milling Machine (MG-1400B)

Name: Cylinder Block Surface Grinding-Milling Machine (MG-1400B)
Brand: ibuyautoparts.com
SKU: 666690921
Availability: InStock
Rating: 4.3 (62 reviews)

Price:	NegotiableSet
Trade Terms:	FOB,CFR,CIF
Min Order:	1Set
Pay Type:	L/C,T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

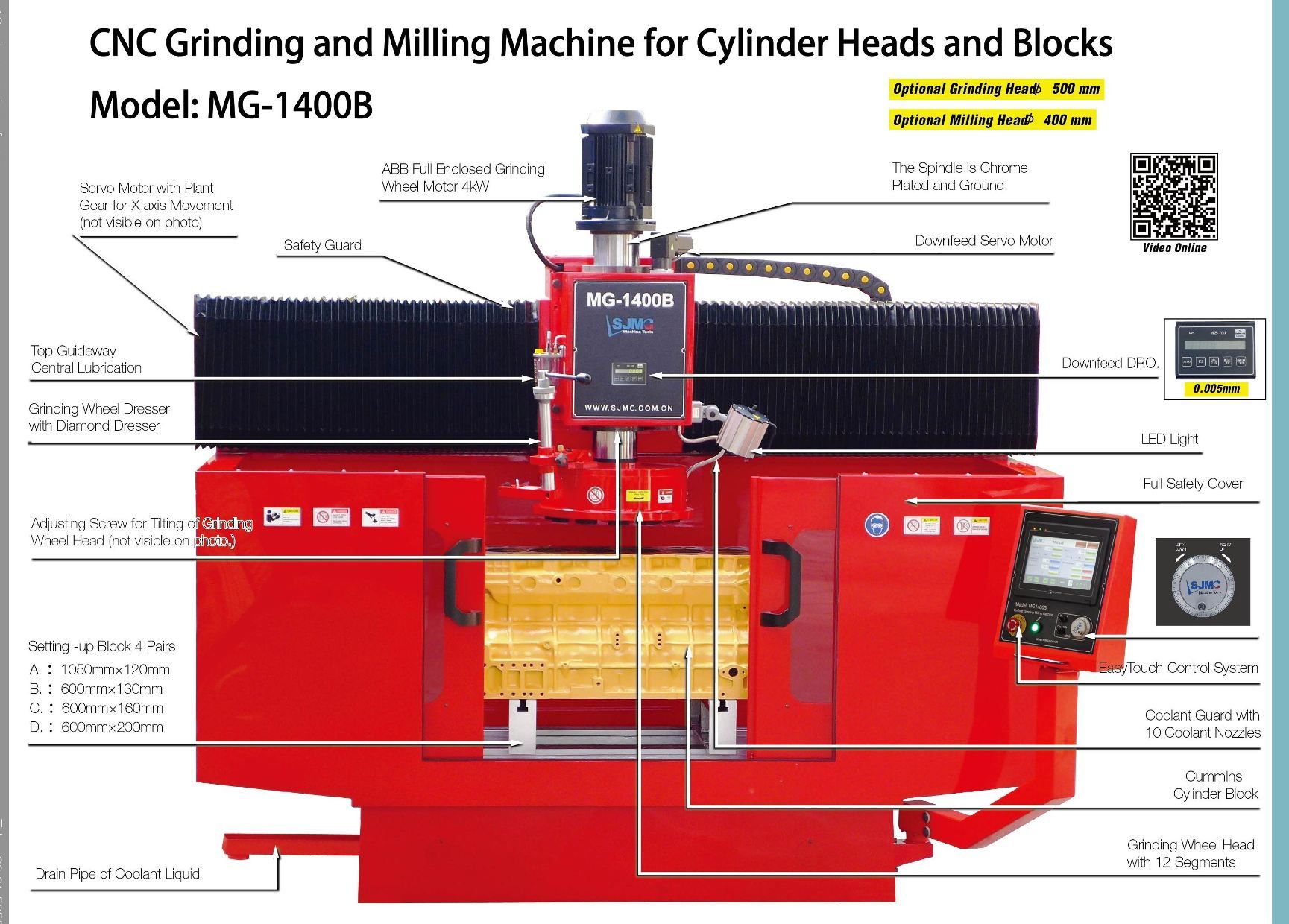

CNC grinding and milling machine for cylinder heads and blocks Model: MG-1400B is new solution for medium and large size engine reconditioning needs. The Grinding head longitudinal moving and vertical moving are controlled by servo motor with high precision ball screws, the vertical moving is also equipped DRO. & linear scale for grinding/milling feed. The spindle speed can be controlled from 150 to 1400 rpm, so that the machine can be used for any type of machining application (milling and grinding) and material, thus providing extremely high quality surfacing without increased cycle times.

Main Specifications

Model	MG-1400B
Control System	EasyTouch 3 Axis
Spindle Speed	150 ~ 1400 rpm stepless
Grinding Wheel Motor	4 kW
Grinding Wheel Traverse Motor	0.75 kW
Downfeed Motor	0.4 kW
Coolant Pump Motor	0.12 kW
Capacity of Coolant Tank	100 Litres
Max. Grinding Length	1400 mm
Max. Grinding Width	400 mm
Max. Height of Work Piece	800 mm
Working Table Surface ( L×D )	1400×600 mm
Grinding Head Diameter	400 mm
Number of Segments	12 piece
Vertical Movement of Grinding Wheel	180 mm
Grinding Wheel Traverse Speeds , Stepless	200 ~ 2000 mm / min
Length of Machine	2200 mm
Width of Machine	1080 mm
Max. Height of Machine	2250 mm
Min. Height of Machine	2100 mm
Flatness for Grinding	0.015 mm / 300 mm
Surface Roughness for Grinding	Ra 0.45
Package Size ( L×D×H )	3000×1150×2250 mm
N.W.	3500 Kg
G.W.	4000 Kg

Prod Model:	MG-1400B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control:	CNC Touch Screen for Automatic 2 Axis
Precision:	High Precision
