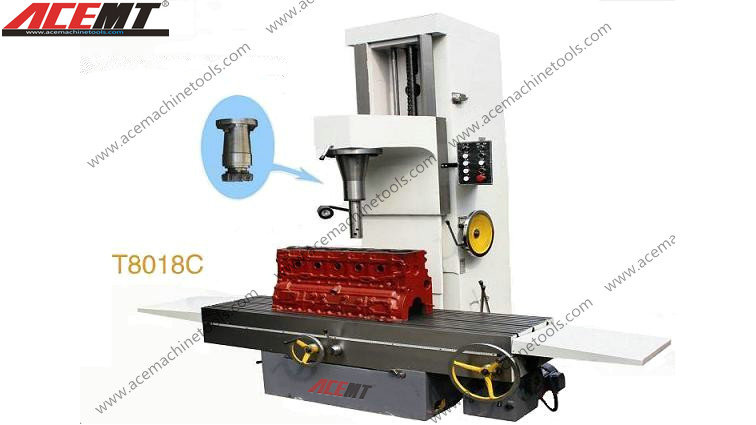

Cylinder Boring Machine (T8018C)

Prod Model:	T8018C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machining Diameter Mm:	42-180
Spindle Speed R/Min:	175,230,300,350,460,000
Main Motor Power Kw:	3.75

Product Description

Product Description:
This machine is mainly used for reboring single line cylinders and V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.

 Machining Diameter mm   42-180
Spindle Speed R/Min         175,230,300,350,460,000
Main Motor Power kw         3.75



Features:
1) Reliable performance, processing accuracy and high productivity
2) Easy and flexible operation
3) Air-floating location
4) Quick and precise automatic pressure
5) Spindle speed is suitable
6) With tool setting and measuring devices
7) With a vertical measuring device
8) Good rigidity


Features:
1) Reliable performance, processing accuracy and high productivity
2) Easy and flexible operation
3) Air-floating location
4) Quick and precise automatic pressure
5) Spindle speed is suitable
6) With tool setting and measuring devices
7) With a vertical measuring device
8) Good rigidity

Features:
1) Reliable performance, processing accuracy and high productivity
2) Easy and flexible operation
3) Air-floating location
4) Quick and precise automatic pressure
5) Spindle speed is suitable
6) With tool setting and measuring devices
7) With a vertical measuring device
8) Good rigidity


Main Specifications	T8018C
Machining Diameter mm	42-180
Max. Boring Depth mm	650
Spindle Speed r/min	175,230,300,350,460,000
Spindle Feed mm/r	0.05,0.10,0.20
Main Motor Power kw	3.75
Overall Dimensions mm(L x W x H)	2680 x 1500 x 2325
N.W/G.W kg	3500/3700
