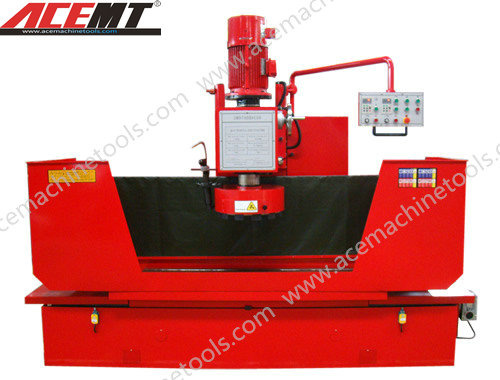

Cylinder Blok Surface Grinding-Milling Machine (3M9740B)

Name: Cylinder Blok Surface Grinding-Milling Machine (3M9740B)
Brand: ibuyautoparts.com
SKU: 797255255
Availability: InStock
Rating: 4.7 (113 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

The main features of the machine;
1. This machine is a vertical grinding and milling machine, with high grinding efficiency and accurate.
2. The table movement of this machine is driving by gear motor and ball screw ,
stpeless speed frequency control, convenient and stable adjustment.

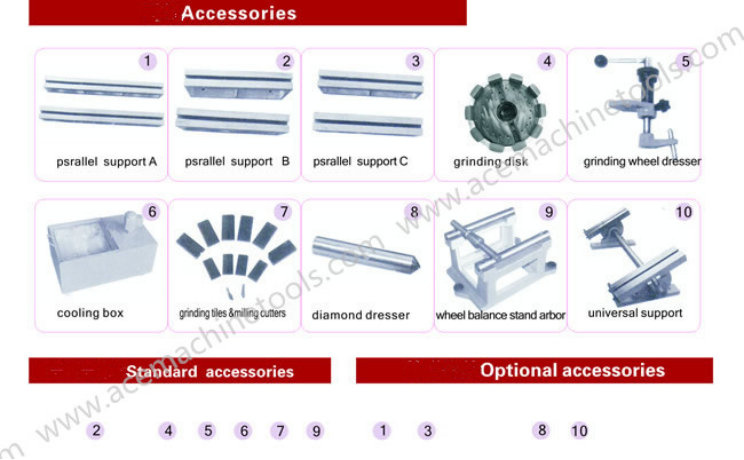

3. coupled with special fixtures to achieve multi-angle grinding cylinder and head.
4. The casting part of this machine is resin sand casting, deformation is small neat appearance.
5. The main spindle use inverter motor,stepless speed control.

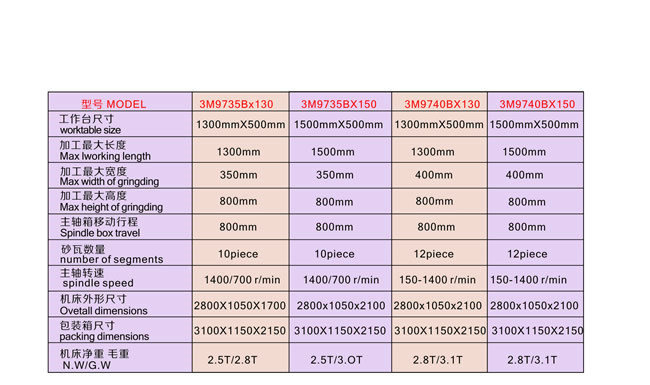

Technical Specification:

Prod Model:	3M9740B
Worktable Size:	1300*500mm
Spindle Speed:	1400/700 R/Min
