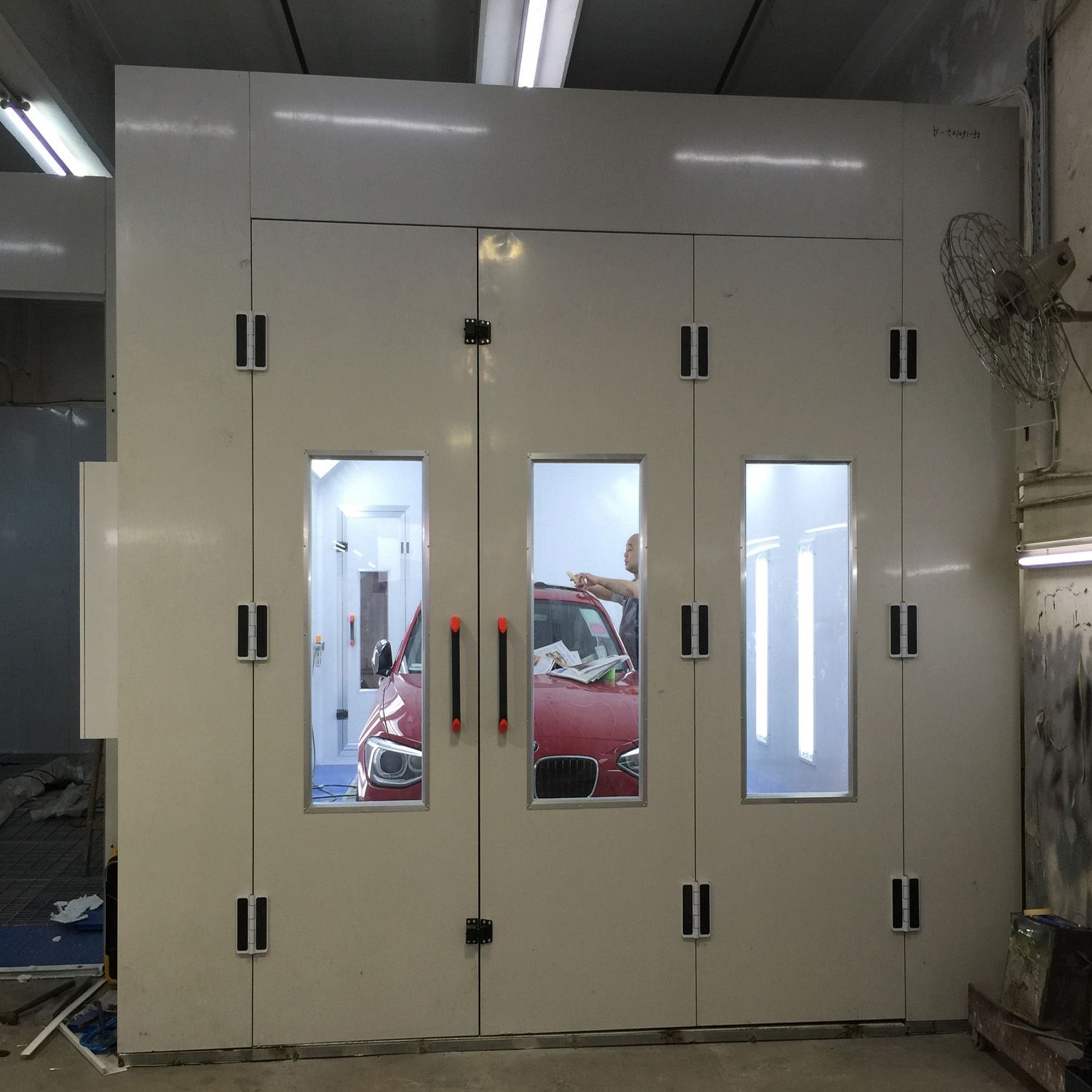

Customized Environmental Water-Based Painting Room for Cars
| Price: |
US $ 5000-15000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
Customized |
| Empty Loaded Air Speed: |
+/-0.25m/S |
| Motor Brand: |
Ce |
| Voltage: |
380V Your Speical Voltage Is Accepted. |
| Warranty: |
2 Years |
| Total Fan Capacity: |
28000m3/H |
| Brightness: |
1000lux |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
Product Description
Environmental water-based painting room for car1. High quality and competitive price, our main partners are BMW, Audi, Land Rova, Toyota, Hitachi etc.
2. Excellent pre-sales and after-sales service.
3. Schneider brand components for the control system.
4. Timely delivery.
Specifications:
| Internal size | 7500×3900×2500 mm(L×W×H) |
| External size | 7600×5556×3150 mm(L×W×H) |
| Basement | 300mm height metal basement assembled by corrosion resistant steel frame and galvanized steel sheet, four rows flat steel grids with 5cm suppressive type of steel grating and 10mm twisted steel, two rows metal non-slip diamond plates.
Air-operated ramp, L3000×W2900mm, double lifting airbag |
| Entrance door | 2+1 structure, Double Construction with Insulations EPS, 0.6mm color steel plate, 2900×2700mm(W×H), tempering glass observation window, snowy white |
| Working door | 1 set, 800×1800mm(W x H), aluminium alloy edge wrapping, tempering glass observation window, with mechanical pressure lock |
| Wallboard | High quality double construction fireproof insulation rock wool panel, thickness: 50mm, 1150mm wide, 0.476mm color steel plate, color: snowy white, powder coated |
| Roof panel | Single-layered galvanized steel plate bending forming |
| Lighting | Ceiling lighting: 10 units: each 4 x 16W
Side lighting: 10 units: each 2 x 16W, 4 units on the left, 4 units on the right and 2 units on the back; illumination: 1000LUX |
| Inlet/Exhaust system | 2 sets of inlet centrifugal fan, belt drive, electric motor power: 5.5kw, total pressure: 700Pa, total air volume: 30000m3/h, with simple manual damper |
| 1 set of exhaust centrifugal fan, belt drive, total air volume: 28000m3/h, electric motor power: 11kw, total pressure: 700Pa, with electric damper |
| Pipeline | 0.8mm galvanized steel plate for the pipeline |
| Heating system | Adopt Italy RIELLO single-stage diesel burner G20(180.000kcal/H), with air-operated damper |
| Water-based device | At 4 top corners of cabin installs 4 sets of 0.25kw centrifugal fans, increase system air supply capacity to dry quicker, air volume: 1000m3/h
Install 4 rows of luxury air nozzles at 4 corners of the cabin, totally 32 pieces. |
| Filtration system | Primary filter, 600G high efficient filter, fiber glass filtration, square activated carbon filtration |
| Control system | Schneider brand components
Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication, round pressure gauge, power supply switch
Water-based switch, Water-based device time control, electric damper, digital display for the time control |
| Voltage frequency | 380V Your special voltage is accepted. |
| Max. working temperature | 80ºC |
| Empty loaded air speed | ≥0.25m/s |
| Gross power | 24KW |

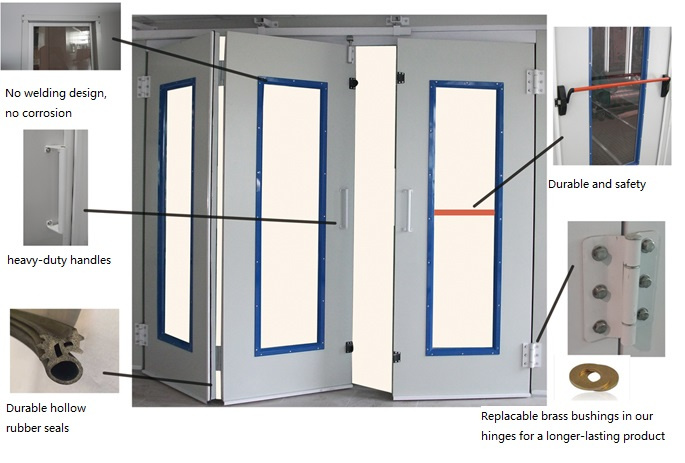

Entrance door:
Lighting: CE certified electronic rectifier, lighting box's dustproof and waterproof grade reaches IP54 grade.

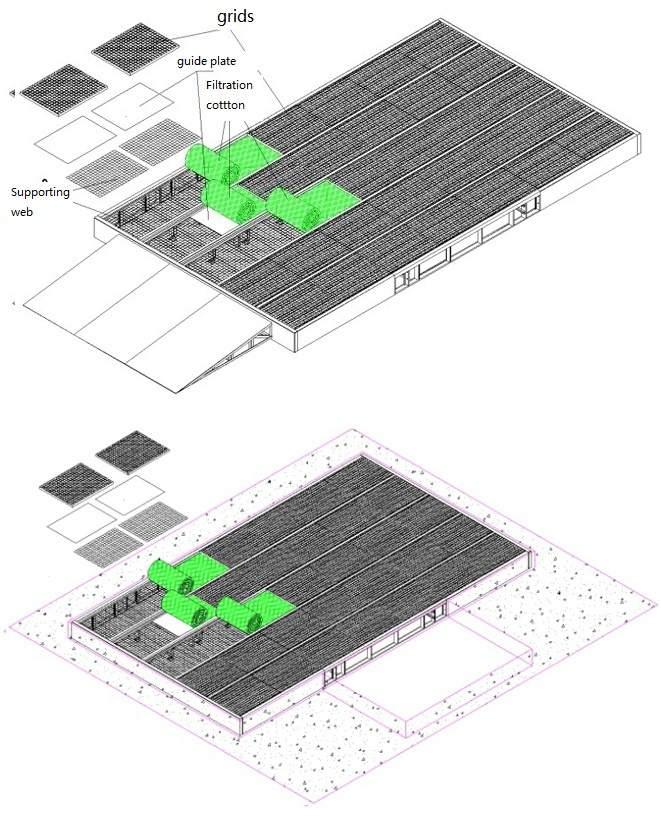

Base air return system:

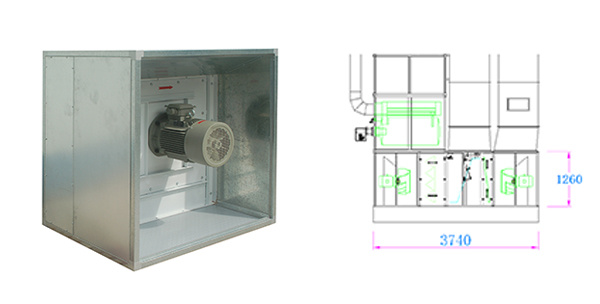

Inlet / Exhaust Fan: Fan is in line with non-sparking design, and perfectly conforms to EN13355-2004.
Company Profile: Guangzhou Infitech Mechanical and Electrical Equipment Co.,Ltd. specializes in design, manufacturing, sales and installation of industrial coating equipment. We supply high quality spray booths, spray lines, prep stations, powder coating equipment, sandblasting machines etc. at competitive price.
Factory address:
No.2, TaiGang Road, BaiYun District, Guangzhou, Guangdong, China (22 minutes drive from GZ Baiyun Airport)
Welcome to vist our plant!
Service Commitment
Before you buy
Product quality commitment:
1. Product manufacturing and testing have quality record and test files.
2. Product performance test. User will be invited to attend the complete test procedure. Once product is qualified, then proceed with package and delivery.
Product price commitment:
1. Use well-known brand raw materials to ensure high reliability.
2. Provide the most favorable price and will not be at the cost of reducing product performance.
Are buying
Delivery commitment:
Product delivery time: comply with client's requirements. If the goods need to be finished in advance, we will arrange production and erection to satisfy clients.
After purchase
After-sales service commitment:
1. Service purpose: fast, decisive, exact, considerable, thorough.
2. Service target: quality service to win customer satisfaction.
3. Service principle: 2-year warranty, the supplier freely replaces damaged parts caused by quality reasons within warranty. Beyond the warranty, the supplier provides spare parts at cost. If the equipment is damaged due to human factors, the supplier repairs or provides spare parts at cost; our service people provide technical support in 24 hours after receiving your report of the problems.

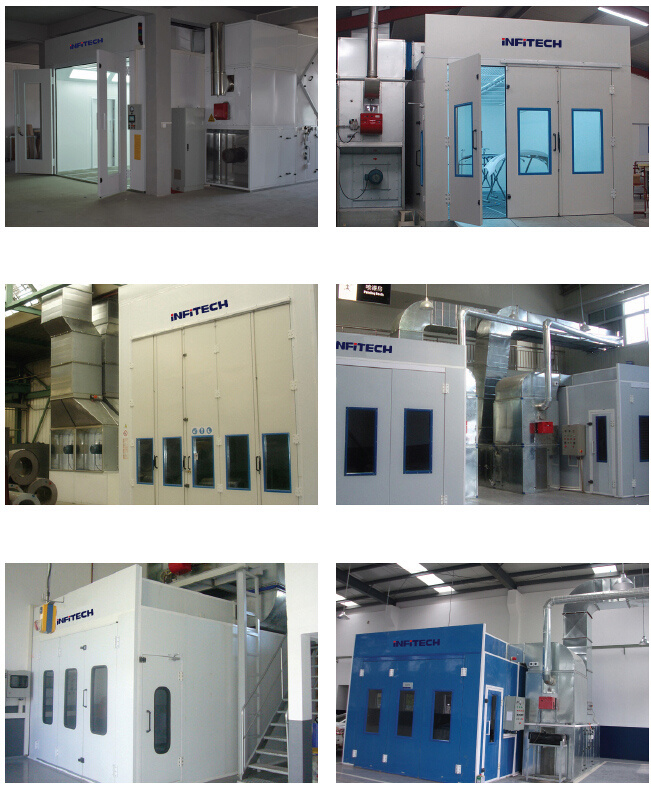

Successful cases:
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.
Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
