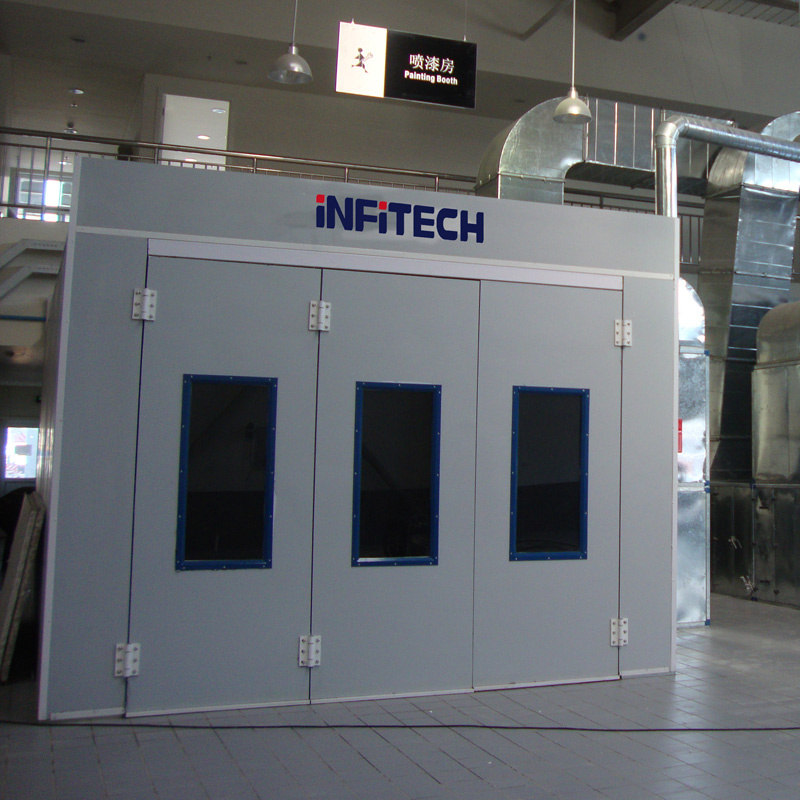

Customized Car Paint Spraying Booth
| Price: |
US $ 11000/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
| Prod Model: |
Non-standard Coating Machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Product: |
Spray Booth, Prep Station,Sand Blasting Chamber |
| Color: |
White(Optional) |
| Design: |
Flat-Top Design |
| Voltage: |
1X220V, 3X380V, Your Special Voltages Are Accepted |
| Technology: |
German Technology |
| Internal Dimension: |
7000 X 4000 X 2800mm (L X Wx H) |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
Product Description
Customer customization is our expertise, 10 years of project experience, perfect technical system, for your comprehensive design. From design to installation to provide you with intimate service.
Just let us know if you have any question.Just let us know if you have any question.
**CE certificate approval,European standard.
**Factory price, energy saving.
**It fits for auto cars spraying and painting,which indicates also suitable for 4S shop and end-user. | STANDARD DESIGN | BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 |
| BOOTH DIMENSION | |
| The internal dimension | 7000 X 4000 X 2800mm (L X WX H) |
| The external dimension | 7110 X 5570 X 3810mm (L X W X H) |
| BASEMENT | |
| Base design forming | Galvanized sheet bending forming, full grids
Basement(H): 350mm and can adjustable |
| The carrying capacity of the grid | 650 kg/wheel |
| Filter area | 28m2 |
| Drive-in-ramps | 3pieces;size:2000*1030*320,diamond structure |
| Grid description | Size:997X 756mm, 40X3mm, pressed steel grating grille instead of the traditional twisted steel for the rail steel grating. Aesthetics, durability, stress resistance of such steel grating is the most important feature |
| CABIN | |
| Cabin structure | Vertical wall plug |
| Plenum height | 600mm |
| WALL PANEL | |
| Wall panel | 50mm wall panel, wallboard filler material:heat-resistant rock wool panel |
| Top material | 50mm wall panel, wallboard filler material:heat-resistant rock wool panel |
| Material edging | 1.2mm galvanized plate bending forming |
| DOOR | |
| Form | Manual door, 2 + 1 structure |
| Size | 3200 X 2700 mm (W X H) |
| Arrangement and number | Parts of door: 1 set |
| Door description | Containing frame, filling heat-resistant EPS |
| WORKING DOOR | |
| Form | Frame structure |
| Size | 800×2000 mm (W×H) |
| Number | 1 set |
| Door description | With safety glass observation window |
| SIDE LIGHTING | |
| Quantity and power | 8 sets of boxes, each 2 X 36W, 576W total |
| Lighting arrange way | On both sides |
| Lighting description | Protection grade IP55, CE certified electronic ballasts, OSRAM lamp |
| CEILING LIGHTING | |
| Number and power | 8 sets the boxes, each 4X36W, a total of 1152W |
| Lighting arrange way | On both sides |
| Lighting description | Protection grade IP55, CE certified electronic ballasts, OSRAM lamp |
| Brightness | > 1200Lux |
| FILTRATION SYSTEM | |
| Pre-filter | G3 grade pre-filter plate filter |
| Ceiling filter | F5 class filter cotton, Model SP-600G |
| Bottom paint mist-collecting | Fiberglass paint-resistance filters |
| Exhaust filter | Fiberglass paint-resistance filters with large ventilation quantity, small resistance and flame resistance, etc. |
| INLET SYSTEM | |
| Inlet fan | Direct-type turbine fan |
| Inlet fan power and motor description | 7.5KW,970 rpm, 380 V, 50 Hz,Siemens motor |
| Parameter inlet | 28000m3/h ,650pa |
| EXHAUST SYSTEM | |
| Exhaust fan | Direct-type turbine fan |
| Exhaust fan power and motor description | 7.5KW,970 rpm, 380 V, 50 Hz,Siemens motor |
| Parameter of exhaust fan | 28000m3/h ,650pa |
| Equipment empty loaded | +/- 0.28m |
| NOISE | <78db |
| HEATING SYSTEM | |
| Heat exchanger material | Stainless steel 1Gr18Ni9Ti(SUS304) |
| Heat power | 200KW |
| △ T temperature capability | 20° C (from -10°C to 10°C under painting state) |
| The maximum operating temperature | 80°C |
| Heating time | 3-5minutes (from 20°C to 60°C under baking state) |
| Model diesel burner | RG5S |
| PIPELINE CONFIGURATION | |
| Straight | 4 pieces |
| Rain hat | 1 piece |
| reducers | 2 pieces |
| Manual damper | 1 piece |
| Electric damper | 1 piece |
| CONTROL SYSTEM | |
| Implementation of standards | Standard Y/Δ Drop Starting Control System |
| PLC programmable logic controller | There, the PLC control, higher reliability, lower failure rate |
| Pressure detection | Pressure gauge indicates the pressure in room |
| Features | Painting, heating painting, leveling, paint, emergency stop switch, failure indication,over-temperature alarm indication, baking delay stop protection |
| SPECIAL ITEM | Rated power:20KW |

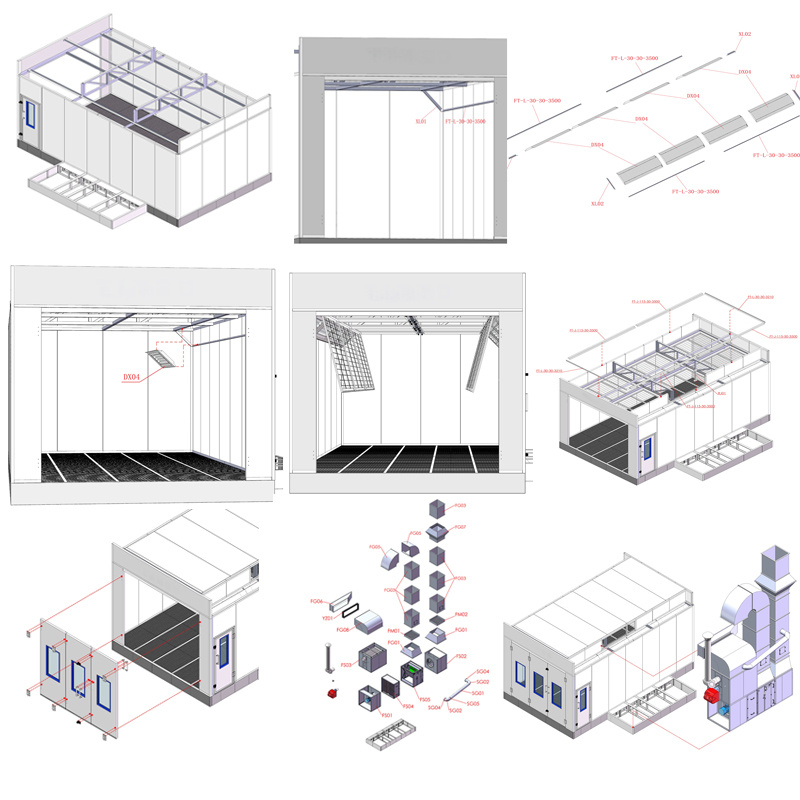

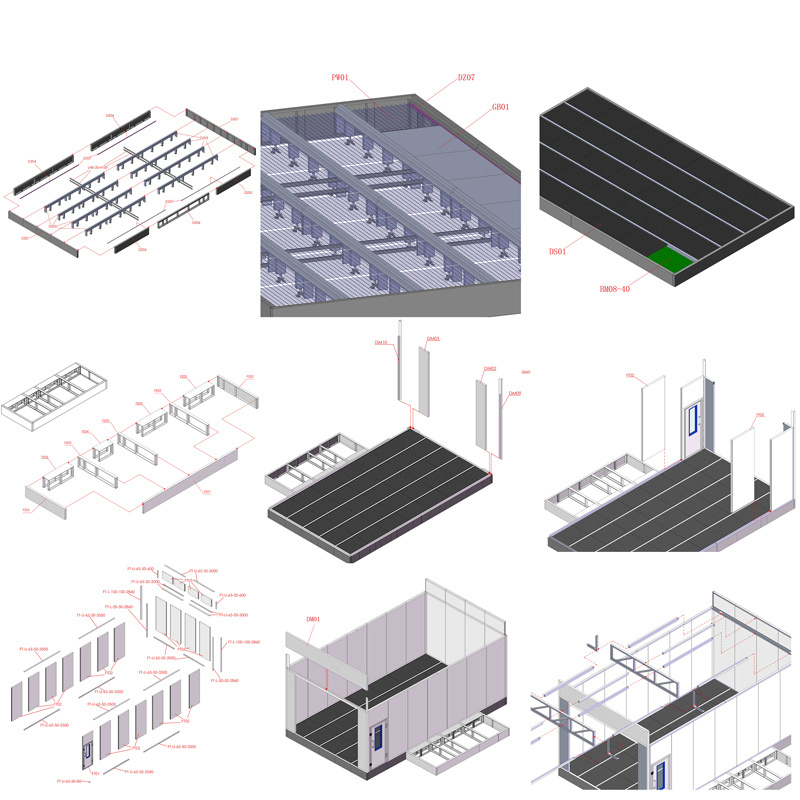

Installation guide
