| Prod Model: |
25-14.00/1.5 |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East |
| Material: |
Steel |
| Type: |
Rim |
| Certification: |
DOT |
| Drive Wheel: |
OTR Wheel |
| Wheel Hub Diameter: |
25" |
| Finishing: |
Painting |
| Wheel Hub Brand: |
Oasisland |
Product Description

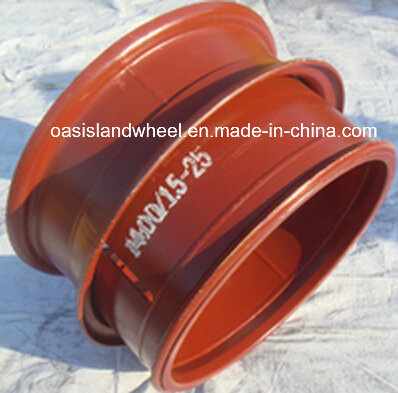

Construction wheel 25-14.00/1.5 of OTR 17.5-25 for loader
Specification:Size: 25-14.00/1.5 3pc/5pcType: Tubeless
Fitted tyre: 17.5-25 17.5R25Certificate: DOT, TUVParameter: 10/335/281 / According to requestDisc: 16mmSpecification: | Rim Size | Recommemded Tire | Dimensions (mm) |
| A | G | P | D | E | F |
| 25-10.00/1.5 | 14.00-25 | 254 | 38 | 65 | 635 | 590 | 563 |
| 25-12.00/1.3 | 15.5-25 | 305 | 33 | 60 | 635 | 590 | 563 |
| 25-14.00/1.5 | 17.5-25 | 355.5 | 38 | 65 | 635 | 590 | 563 |
OTR Rim factory quality control:To ensure product quality, the company established the ISO9001 quality system, and configure the universal testing machine, air tightness testing machine, chemical detector and many other test equipment. Product quality by customers.
Main Sizes (3Piece 5 Piece )
| Wheel Size | Recommend Tire Size |
|
| 25×10.00/1.5 | 14.00-25 |
| 25×11.25/2.0 | 16.00-25 |
| 25×13.00/2.5 | 18.00-25 |
| 25×14.00/1.5 | 17.5-25 |
| 25×15.00/3.0 | 21.00-25 |
| 25×17.00/2.0 | 20.5-25 |
| 25×19.50/2.5 | 23.5-25 |
| 33×13.00/2.5 | 18.00-33 |
| Dia | Rim Size | Fitted Tyre | Bolt Hole | PC Dia | Center Hole Dia | Offset/ET |
| No. | Dia. |
| 29" | 29-17.00/3.5 | 24.00-29 | DOUBLE DISC A=520 B=290 |
| 29-17.00/3.5 | 24.00-29 | WITHOUT DISC A=40 B=648 |
| 29-24.00/3.5 | 776/65R29 | WITHOUT DISC A=40 B=648 C=672 |
| 29-24.00/3.5 | 776/65R29 | 19 | 27 | 500 | 451.5 | 117.8 |
| | | | | | | | |
| Dia | Rim Size | Fitted Tyre | Bolt Hole | PC Dia | Center Hole Dia | Offset/ET |
| No. | Dia. |
| 33" | 33-13.00/2.5 | 18.00-33 | 12 | 28 | 595 | 547 | 130 |
| 33-13.00/2.5 | 18.00-33 | 16 | 22 | 480 | 420 | 100 |
| 33-13.00/2.5 | 18.00-33 | WITHOUT DISC A=35 B=747 C=776 |
| 33-28.00/3.5 | | 31 | 26 | 551 | 500 | 262 |
| 33-28.00/3.5 | | 38 | 26 | 693 | 617 | 347 |
| 33-28.00/3.5 | | WITHOUT DISC A=45 B=740 C=775 |
| | | | | | | | |
| Dia | Rim Size | Fitted Tyre | Bolt Hole | PC Dia | Center Hole Dia | Offset/ET |
| No. | Dia. |
| 34" | 34-14.00/1.3 | | 19 | 21 | 511.18 | 462 | 27 |
| 34-14.00/1.3 | | 24 | 20 | 375 | 330 | 135 |
| 34-16.00/1.5 | 53x18-34 | 20 | 21 | 511.8 | 462 | 60 |
| | | | | | | | |
| Dia | Rim Size | Fitted Tyre | Bolt Hole | PC Dia | Center Hole Dia | Offset/ET |
| No. | Dia. |
| 35" | 35-15.00/3.0 | 21.00-35 | WITHOUT DISC A=25 B=774 C=824 |
| 35-15.00/3.0 | 21.00-35 | DOUBLE DISC A=467 B=290 |
| 35-15.00/3.0 | 21.00-35 | 12 | 32 | 710 | 659 | 110.5 |
| 35-15.00/3.0 | 21.00-35 | 14 | 36 | 704.85 | 644.7 | 44.8 |
| 35-15.00/3.0 | 21.00-35 | 16 | 22 | 400 | 350 | -11 |
| 35-17.00/3.5 | 24.00-35 | 12 | 32 | 710 | 659 | 156 |
| 35-17.00/3.5 | 24.00-35 | WITHOUT DISC A=45 B=795 C=825 |
| 35-22.00/3.5 | | 23 | 24 | 483 | 431 | 268 |
| 35-22.00/3.5 | | WITHOUT DISC A=40 B=495 C=826 |
| | | | | | | | |
| Dia | Rim Size | Fitted Tyre | Bolt Hole | PC Dia | Center Hole Dia | Offset/ET |
| No. | Dia. |
| 49" | 49-17.00/3.5 | 24.00-49 | DOUBLE DISC A=425 B=430 |
| 49-17.00/3.5 | 24.00-49 | DOUBLE DISC A=425 B=430 |
| 49-19.50/4.0 | 27.00-49 | WITHOUT DISC A=20 B=1120 C=1184 |
| 49-19.50/4.0 | 27.00-49 | 36 | 20.6 | 500 | 460 | 15 |
| | | | | | | | |
| Dia | Rim Size | Fitted Tyre | Bolt Hole | PC Dia | Center Hole Dia | Offset/ET |
| No. | Dia. |
| 51" | 51-22.00/3.0 | | 36 | 20.6 | 597.66 | 558.2 | 0 |
| 51-28.00/4.5 | | 38 | 26 | 693 | 617 | 405 |
| | | | | | | | |
| Dia | Rim Size | Fitted Tyre | Bolt Hole | PC Dia | Center Hole Dia | Offset/ET |
| No. | Dia. |
| 63" | 63-36.00/5.0 | 53/80R63 | WITHOUT DISC A=88 B=1430 C=1498.6 |

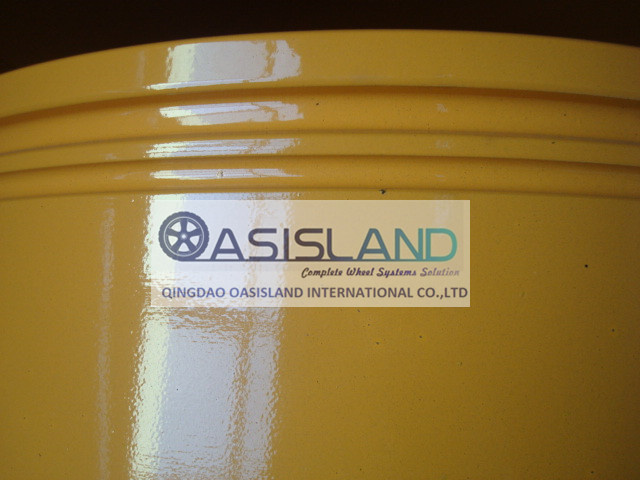

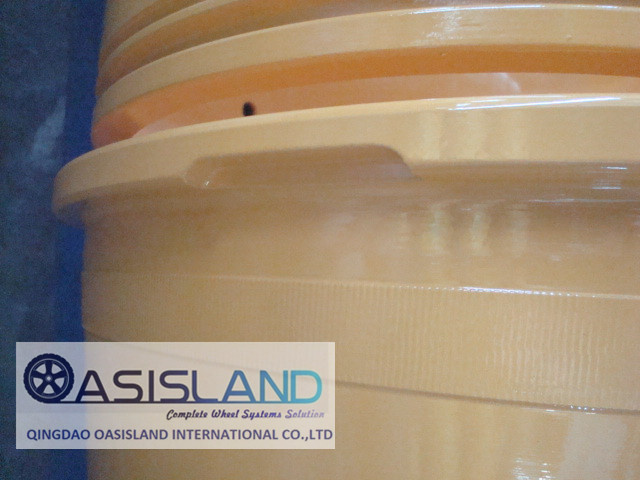

Detail of Wheel rims:

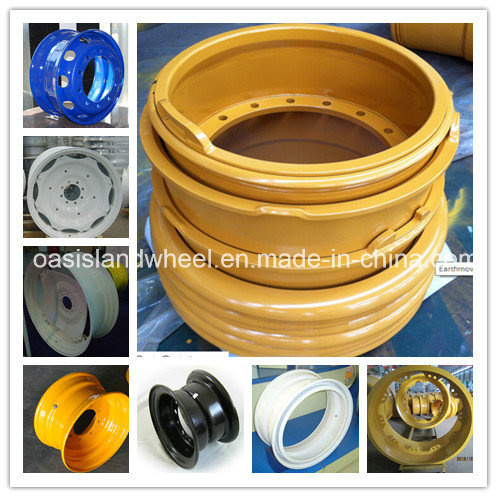

Wheel Products Ranges:
Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials
All products we supply will be with quality and guarantee...
For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.
For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.
Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
