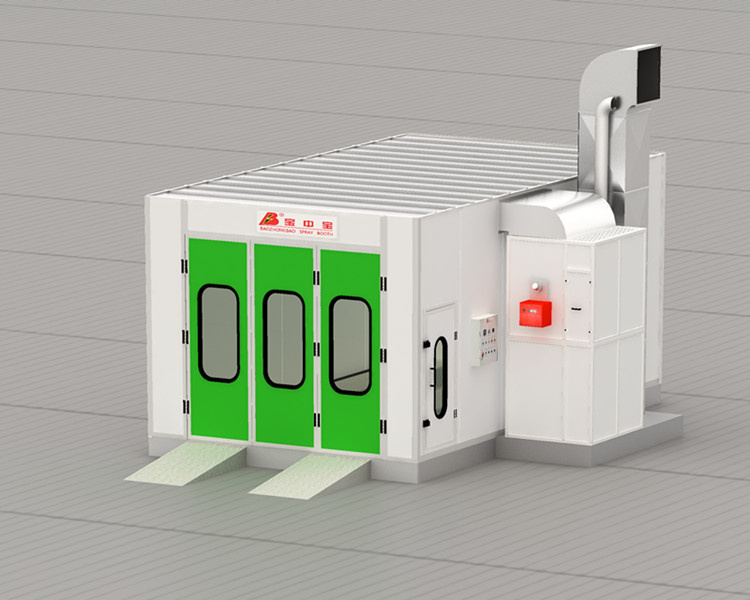

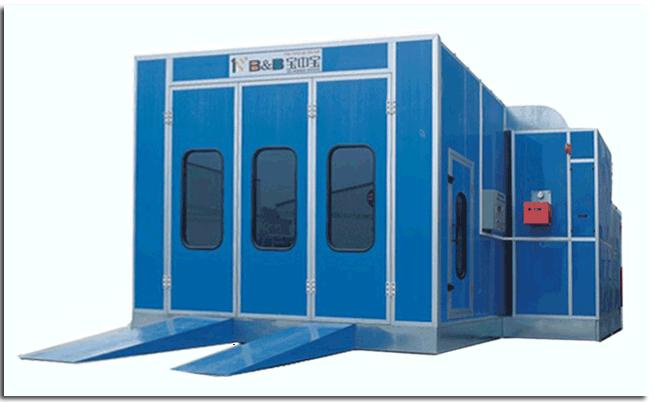

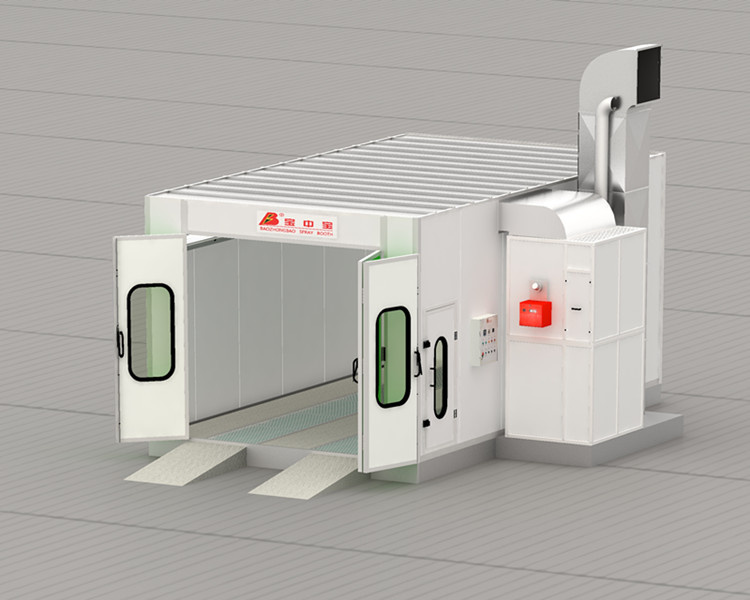

China Origin Down Draft Spray Booth

Name: China Origin Down Draft Spray Booth
Brand: ibuyautoparts.com
SKU: 669462945
Availability: InStock
Rating: 4.6 (138 reviews)

Price:	US $ 5500-8650/Set
Trade Terms:	others
Min Order:	1/Set
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Eastern Asia,Western Europe
Color:	as Require
Voltage:	as Require
Certification:	CSA
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Bzb

Product Description

We are the most professional spray booth manufacturer in China. We have been manufacturing spray booth for 10 years.

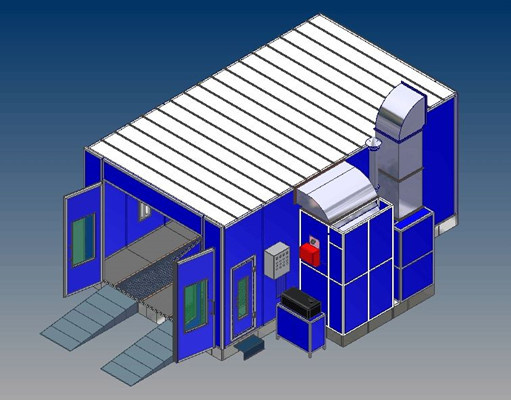

BZB-8400 MODEL
External Size (mm)	7000x5560x3430
Internal Size (mm)	6900x4000x2650
Cabin System	1.Wallboard	EPS (epispastics polystyrene)Colorful Steel Skin Boards,50mm Thick, Tongue & Groove Style,Compound Construction, Anti-flame and Heat-Insulation Galvabized Roof Panal


	2.Basement	Galvanized Steel Sheet and Square Steel Pipe assembling, Two Rows Grid & Three Embossed Plate

	3.Ramp	Two Ramps, Embossed Steel Plates.
Circulation system	Inhaling Ventilator		Model: YDW 4.5L1	Exhaust Ventilator	Model: YDW 5.6S
			Blower capacity: 12000m 3 /h		Blower capacity:15000m 3 /h
			Pressure: 815Pa		Pressure: 810Pa
			Rolling speed: 900rpm		Rolling speed: 900rpm
			Power: 4kw		Power: 5.5kw
			Quantity: 2 sets		Quantity: 1set

	Air Volume: 24000m 3 /h; Air Speed: 0.35m/s
Air Purification System	Dual Filtering Structure, The Primay Filter Can Capture Granules Larger than 10 μm. Ceiling Filter Capture Granules Bigger than 5μm. The Whole Purification System Has Capacity of Large Volume of Dust. Its Filtering Rate Reaches 98%. Air Pressure Balance Gauge, TSP≤1.4mg/m 3




Heating System	1.Burner	Italy Riello Brand,G20 Diesel Burner, 180000Kcal/h, 10N Damp Motor


	2.Heat Energy Converters	Stainless Steel, Argon Arc Welding, The Heat Exchange Rate 85%


	Max Temp:80 centi degree, Heating Time: 4-5min(20-60 centi degree), Fuel Consumption: 4-5kg/vehicle

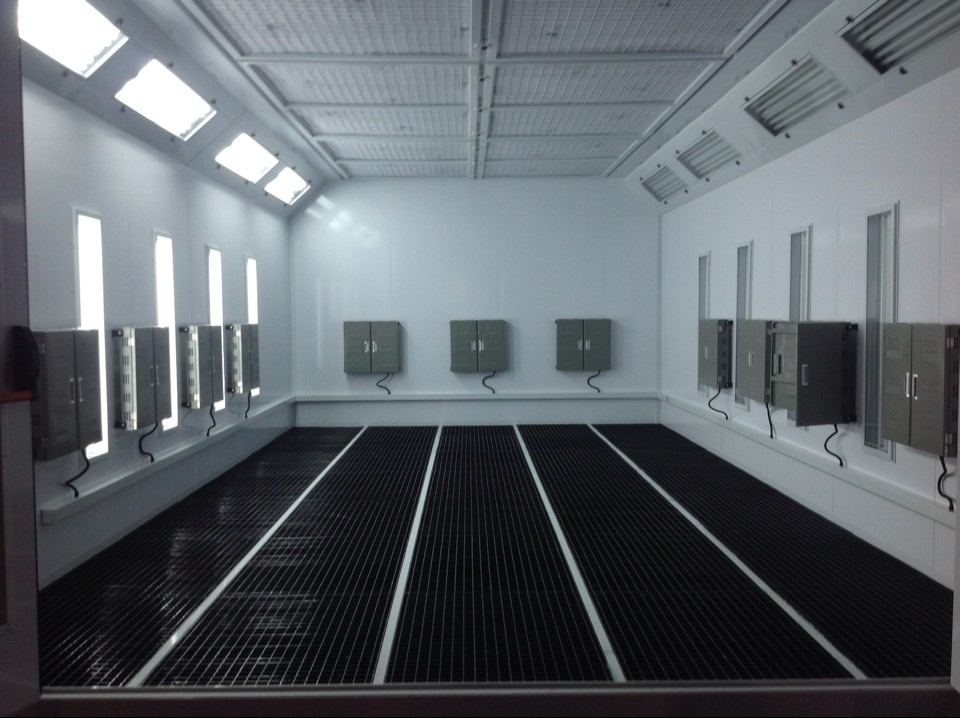

Light System	Ceiling Light: 24 pcs 36w Philips Lamp; Bottom Light: 16 pcs 36w Philips Lamp, 900 Lux


Electric controlling system	Micro-Computer Programme Controlling, Spray & Baking Switch, Light Switch,Emergency Stop, Breakdown Alarm

Environmental Conversation System	Multi-Layer Fiberglasss Filter

Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd is an enterprise specializing in the development, manufacture and sales of industrial painting equipment. It is located to the 20 kilometers southeast of Baiyun International Airport with an area of 18060m² And staffs of 318, among which 38 are medium and senior engineering technical personnel and administrative personnel.

Its core products are Baozhongbao brand environment-friendly dry type spraying&baking booth, whirlpool spraying&baking booth, pump spraying&baking booth, bridge style baking room, room type baking room, water test booth, frame machine and large industrial painting assembly line for car, bus, mechanical equipment etc.

It has offices in almost all the provincial capitals in China and it has agents in the countries mentioned above.
