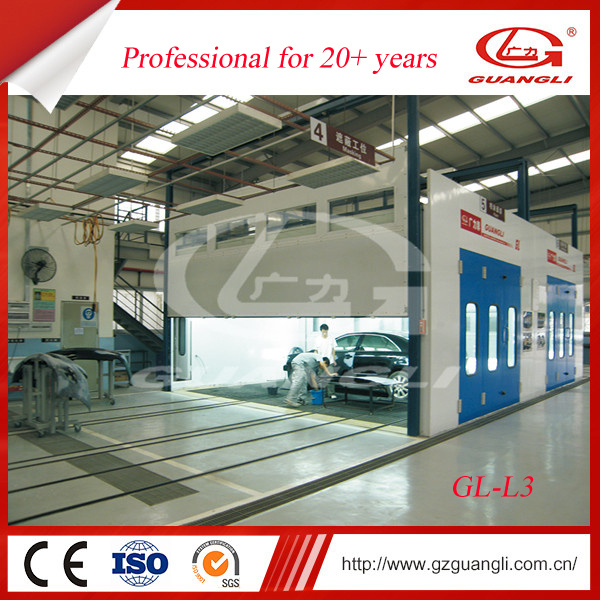

China Leading Manufacturer Powder Coating Spray Paint Equipment Oven Bake Booth for Car
| Price: |
US $ 2000-25780/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
China Leading Manufacturer Powder Coating Spray Paint Equipment Oven Bake Booth for Car

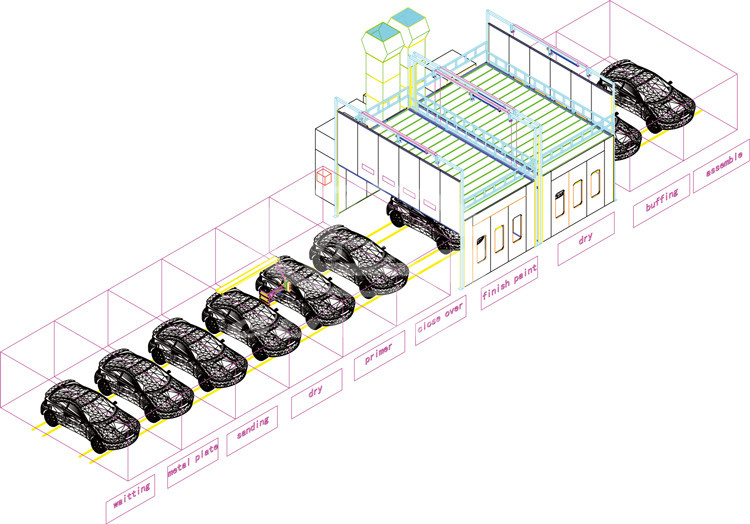

Auto Works Painting Line FeatureMulti-bays Line: Prep station + Paint booth + Baking booth + Polishing area Working processPark the vehicle on the four movable jacks in the waiting area.
Push the vehicle to the wanted working area in order, and then carry out Body works, Sanding, Priming, Masking, finishing paint, Drying, Polishing and Assembly in this line.
The transition in different areas is realized by moving vehicles along the jacks.Structure:Painting and barking are working separately in this line, vehicle can through from the moving door in side wall. With close curtain at two side of optional prep station.
This line consists of painting room, baking room, rails and movable jacks. Prep station and infrared light are for option.
Painting room and baking room are connected in parallel. Ventilation and heating system placed at rear.
The transition in different area is realized by moving vehicles along the jacks.
Pull& Push Folding Door is standard, automatic control vertical suspending door and sectional suspending door for option.
If specified with vertical suspending door, the height of workshop should be at least 5800mm.

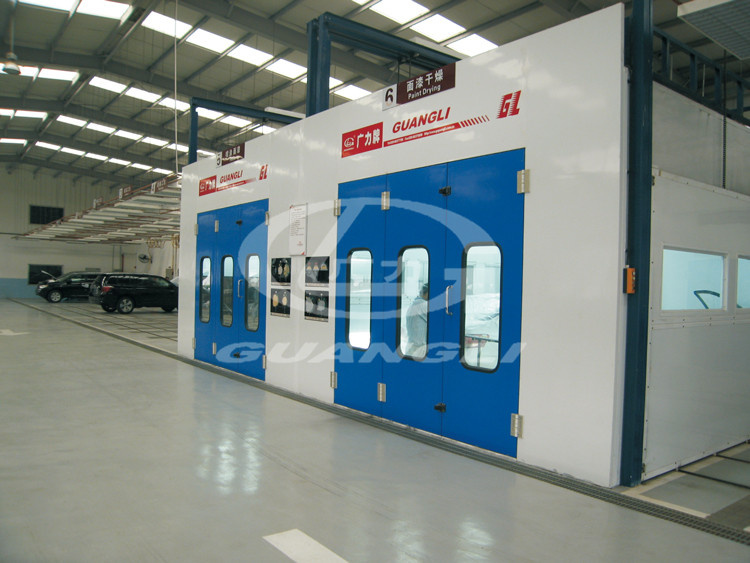

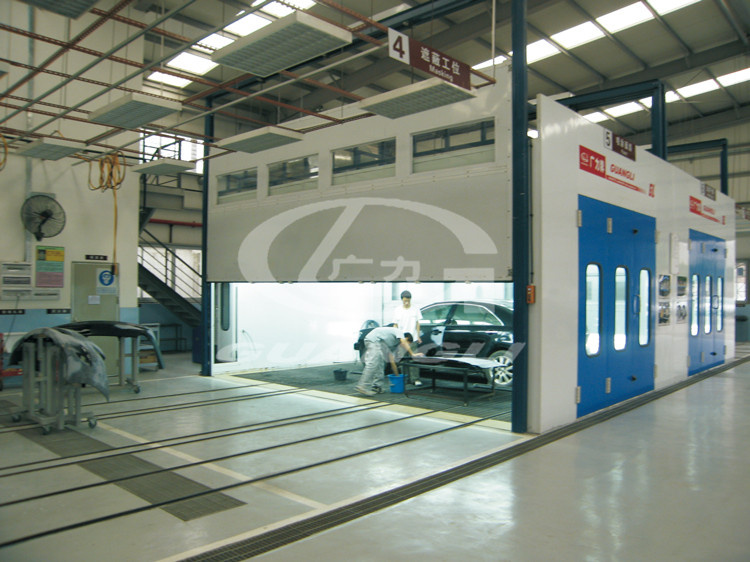

A small spray booth can be installed outside the line to do the painting and baking for parts.Auto Works Painting Line Show
| Technical Specifications | GL-L3 |
| Painting line Length(m) | 36.4 |
| External Size Internal Size | 8.3x8.4x5.5 |
| Painting booth Internal Size | 6.9x3.9x2.8 |
| Baking Booth Internal Size | 6.9x3.9x2.8 |
| Painting booth Air Flow(m³/h) | 25000 |
| Baking Booth Air Flow(m³/h) | 18000 |
| Total Power (kw) | 23 |
| Standard Movable Jacks(sets) | 44 |
| Rail(m) | 5x36.4 |
Remark: 1.Wet sand, vertical suspend door without exhaust system.
2.The model about are suitable for saloon car, concrete basement made by user.
3.Nonstandard design plan can be made as requirement.
Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Good pre-sales and after-sales service.Company InformationGZ GUANGLI EFE CO.,LTD is professional spray booth and car lift manufacturer in China for more than 20 years technical and production experience.
Founded in 1994, Guangli started to build our own enterprise headquarters, which covers 58,000M2 of grounding area and 36,000M2 of building area.
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.
Certificate
Our products spray booth and car lifts have got CE certificate and our company has passed ISO9001.

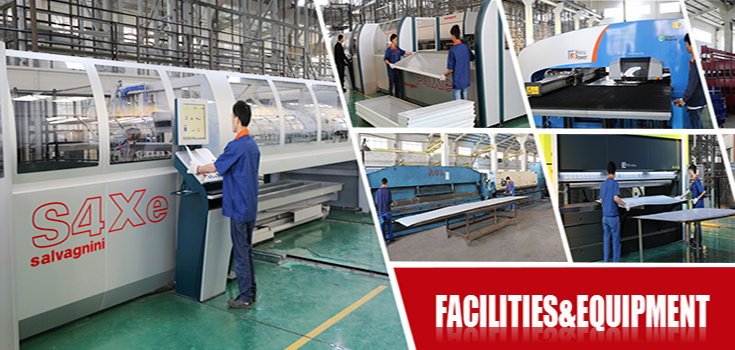

Equipment
We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China
Exhibition
For more details,please feel free to contact me.
Contact: Sunnie Di
Tel:+86-20-86569629
Mobile:+8613925061383
| Prod Model: |
GL-L3 |
| Painting Line Length(M): |
36.4 |
| External Size Internal Size(M): |
8.3X8.4X5.5 |
| Painting Booth Internal Size(M): |
6.9X3.9X2.8 |
| Baking Booth Internal Size(M): |
6.9X3.9X2.8 |
| Painting Booth Air Flow(M3/H): |
25000 |
| Baking Booth Air Flow(M3/H): |
18000 |
| Total Power (Kw): |
23 |
| Standard Movable Jacks: |
44 Sets |
| Rail(M): |
5X36.4 |
| Voltage(V): |
380V/50Hz/3pH |
| Certification: |
UL |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Guangli |
Founded in 1994, Guangli Electromechanical Engineering Facilities Co., Ltd. is the first automobile spray booth manufacturers in China. Now the largest one in South China in this line. GUANGLI has our own enterprise headquarters and production base, which covers 58, 000M2 of production area and36, 000M2 of building area. With the advanced machines, strong and professional R&D
Team and material sources, our products are excellent in performance and craftsmanship.
We have employees about 300, among which are over 60 technical Engineers. Our main products is spray/baking booth, auto post lift, powder coating production line, automobile lifts tester and cleaner for electronic nozzle, dustless workshop, washing units etc. We have two brands about these products, Guangli and Ritian.
