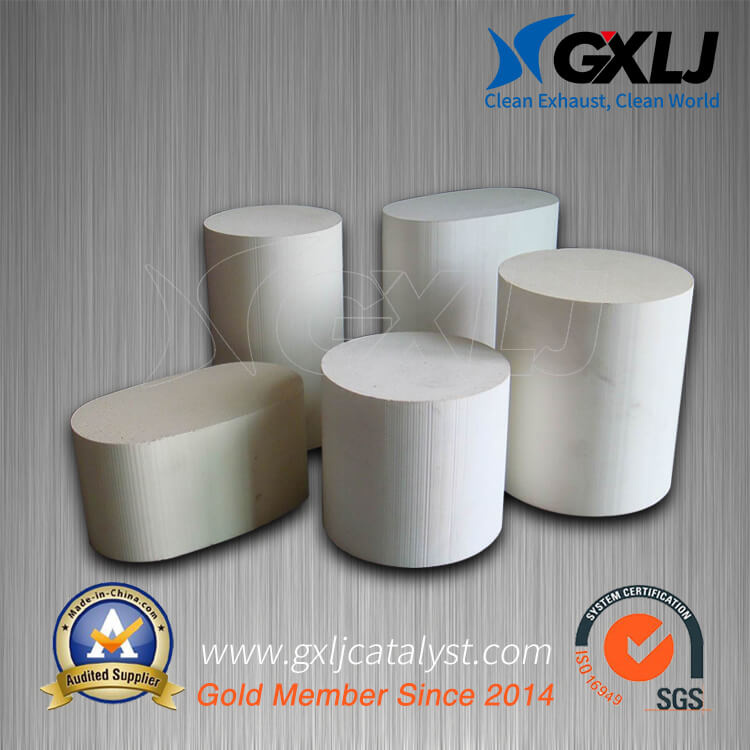

Ceramic/Metallic Honeycomb Products for Doc/ SCR/ DPF Catalytic Converter Substrate

Ceramic/Metallic Honeycomb Products for Doc/ SCR/ DPF Catalytic Converter Substrate
Price: US $ 20-30/Piece
Min Order: 2/Piece
Pay Type: L/C,T/T
Prod Model: LJFZ000
Fitment: Fit for Catalytic Converter for Diesel Engine or P
Emission Standard: Universal Fit ,Without Coating Catalyst
Core Shape: Round, Ellipse, Racetrack,Triangular or Abnormity
Core Material: Cordierite
Size: Customized According to Customers' Requirements
Cell Density: 100cpsi,200cpsi,300 Cpsi , 400 Cpsi,600 Cpsi (Cell
Wall Thickness: 0.15-0.3mm
Soften Temperature: ≥1400ºC
Water Absorption: 23-27%
Filter Efficiency: >=95%
Discharge Standard: Euro V
Certification: CCC
Type: Honeycomb Ceramic Substrate
Body Material: Cordierite
Component: Core of Catalytic Converter

Product Description

Honeycomb ceramic substrate is a new kind of catalyst carrier, which is widely used in automobile emissions purifying system and industrial exhaust gas treatment system.After coating with catalysts, this product is applied in catalytic converter of diesel or gasoline vehicle to catalyze , convert and purify the exhaust, making vehicle exhaust reaching standards of Euro IV and Euro V.We can produce different materials of DPF: cordierite particulate filter and silicon carbide diesel particulate filter .We also supply Catalytic Converter, Catalytic muffler, Motorcycle catalytic converter, DOC Catalyst, SCR catalyst ,Ceramic honeycomb monolith , Metal honeycomb carrier, ect. Our management system has been certified the ISO9001 and TS16949 by SGS company.

We can supply both ceramic element coated with noble metals of Pt,Pd,Rh and ceramic element without noble metals


Advantage of Honeycomb Ceramic Substrate
    Thin wall, high Surface area.Low coefficient of thermal expansion.Low back pressure, good air flow.Good thermal shock resistance and heat resistance.High temperature resistance and chemical corrosion resistance.High compressive strength and stable water absorption rate.Accurate size control,good for encapsulation.Low light off temperature and high conversion efficiency.Ideal matching with different catalysts.

Physical & Chemical Properties of Honeycomb Ceramic Substrate
ItemsIndex
Chemical CompositionSiO250.9±1%
Al2O335.2±1%
MgO13.9±1%
Cordierite Crystal Phase ≥90%
Wall Thickness100 CPSI0.42-0.48mm
200 CPSI0.32-0.38mm
300 CPSI0.25-0.31mm
400 CPSI0.17-0.20mm
600 CPSI0.12-0.15mm
Compression StrengthLengthways≥15MPa
Horizontal≥3 MPa
Coefficient of Thermal Expansion(20-800ºC)≤ 1.2x10-6/ºC
Water Absorption 23-27%
Soften Temperature≥1400 ºC
Refractory≥1600ºC
Thermal Shock Resistance(Indoor Temperature-550ºC)550ºC Three time (Air cool)
Tolerance of Outside Dimensions±1%
Bulk Density0.40-0.50Kg/L

Specification




100 CPSI-600 CPSI Round Products
Regular Diameter Size Regular Height Size
Φ76.2 mm(3 inch )2 inch,4 inch
Φ80 mm(3.15 inch )2 inch,2.36 inch,3.74 inch
Φ83 mm(3.27 inch )2.36 inch,3.15 inch,3.35 inch,3.94 inch,4 inch,4.53 inch,5 inch
Φ87 mm(3.43 inch )2.36 inch
Φ88 mm(3.46 inch )3.35 inch,6.7 inch
Φ92 mm(3.62 inch )3.54 inch
Φ93 mm(3.66 inch )2.36 inch,2.95 inch,3 inch,3.35 inch,3.48 inch,3.94 inch,4 inch,4.33 inch, 4.65 inch, 5.12 inch,6 inch,6.7 inch
Φ97 mm(3.82 inch )3.5 inch,4.5 inch ,6.7 inch
Φ101.6 mm(4 inch )2 inch,3 inch,3.54 inch ,3.94 inch, 4.86 inch,6 inch
Φ103 mm(4.06 inch )5.12 inch
Φ105.7 mm(4.16 inch )5.12 inch,5.81 inch,6 inch
Φ106.1 mm(4.18 inch )3.95 inch,6 inch
Φ107.1 mm(4.22 inch )3.15 inch,3.95 inch,5.12 inch
Φ110 mm(4.33 inch )3.15 inch,5.12 inch,6.5 inch
Φ118.4mm(4.67 inch )2 inch,2.17 inch,2.36 inch,2.95 inch,3.74 inch,3.94 inch,4.5 inch,4.67 inch,4.72 inch,5 inch,5.51 inch ,6 inch
Φ132.1 mm(5.2 inch )3.94 inch
Φ144 mm (5.67 inch )2.95 inch,4 inch,5 inch,5.91 inch,6 inch,7 inch,
Φ150 mm(5.91 inch )2.6 inch, 3.94 inch,5.91 inch,6 inch
Φ170 mm (6.7 inch )2 inch,2.76 inch,3.94 inch
Φ180 mm(7.09 inch )2.36 inch,2.76mm ,3.94 inch,4 inch,5 inch,5.91 inch, 6 inch
Φ190.5 mm (7.5 inch )3.94 inch,4 inch,5 inch,5.91 inch,6 inch




100 CPSI-600 CPSI Race Track and Oval Products
Regular SeriesRegular Size
80 mm (3.15 inch )80x57x108mm (3.15x2.24x4.25 inch)
95 mm (3.15 inch )95x115x132mm (3.74x4.53x5.2 inch)
99.5 mm (3.92 inch )99.5x68x120mm (3.92x2.68x4.72 inch)
99.8 mm(3.93 inch )99.8x68.1x120.6mm(3.93x2.68x4.75 inch)
112 mm(4.4 inch )112x60x90 mm(4.4x2.36x3.54 inch)
114 mm(4.49 inch )114x105x105mm (4.49x4.13x4.13 inch)
120.6 mm(4.75 inch )120.6 x 80x 50 mm (4.75x3.15x1.97 inch)
120.6x 80 x 76 mm(4.75x 3.15x 3 inch)
120.6 x 80x 100 mm (4.75x3.15x3.94 inch)
120.6x 80 x 120 mm(4.75x 3.15x 4.73 inch)
120.6 x 80x 125 mm (4.75x3.15x 4.92 inch)
120.6x 80 x 140 mm(4.75x 3.15x 5.51 inch)
120.6 x 80x 152.4 mm (4.75x3.15x 6 inch)
125.3 mm(4.93 inch )125.3x 80.2x 101.6 mm(4.4x 2.36x 3.54 inch)
125.3x 80.2x 152.4 mm(4.4x 2.36x 3.54 inch)
127 mm(5 inch )127x 63.5x107mm(5x2.5x4.21 inch)
144 mm(5.67 inch )144x 68x 125 mm(5.67x 2.68x 4.92 inch)
144.3 mm(5.68 inch )144.3x 68.1x45mm (5.68x 4.13 x 1.77 inch)
144.3x 68.1x125mm( 5.68x 4.13 x 4.92 inch)
144.3x 68.1x152.4mm (5.68x 4.13 x 6 inch)
144.8 mm (5.7 inch)144.8x 81.3x 50mm (5.7x 3.2 x 1.97 inch)
144.8x 81.3x 76mm (5.7x 3.2 x 3 inch)
144.8x 81.3x152.4mm (5.7x 3.2 x 6 inch)
146 mm (5.75 inch)146x 77x152.4mm (5.75x 3.03 x 6 inch)
147 mm (5.79 inch)147x 84x125mm (5.79x 3.3 x 4.92 inch)
147x 95x 50mm (5.79x 3.74 x 1.97 inch)
147x 95x120mm (5.76x 3.74 x 4.73 inch)
147x 95x140mm (5.76x 3.74 x 5.51 inch)
147x 95x152.4mm (5.76x 3.74 x 6 inch)
148 mm (5.83 inch)148x 84x 76mm (4.49x 4.13 x 4.25 inch)
148x 84x 96mm (4.49x 4.13 x 4.26 inch)
148x 84x115mm (4.49x 4.13 x 4.27 inch)
148x 84x125mm (4.49x 4.13 x 4.28 inch)
148x 84x140mm (4.49x 4.13 x 4.29 inch)
148x 84x152.4mm (4.49x 4.13 x 4.30 inch)
152.4 mm(6 inch)152.4x 84x125mm (6x 4.13 x 4.28 inch)
169.7 mm(6.68 inch)169.7x 80.8x110mm (6.68x 3.2 x 4.33 inch)
169.7x 80.8x115mm (6.68x 3.2 x 4.53 inch)
169.7x 80.8x127mm (6.68x 4.13 x 5 inch)
169.7x 80.8x152.4mm (6.68x 4.13 x 6 inch)


Remark: customized specification can be allowed .
Add us to your favorite sellers list & Recommend our  store to your friends and  family!
Don't forget to regularly pass-by as we are constantly adding new products, special offers and unbeatable deals to our listings!
General Description

Our cost-effective solutions to tighter emissions standards, Guangxi Huihuang Langjie environmental &Tech. Co., Ltd, specializing in the development and manufacture of exhaust emissions catalytic converter/catalyst solutions for all applications.

Since 2001, GXLJ has integrated complete product design, testing and manufacturing. Today, GXLJ is a premier supplier and manufacturer of high performance catalytic converters and substrates for diesel and gas fueled engines, with shorter lead times, greater quality control and superior service - all at greatly reduced cost.

GXLJ Catalytic Converter

Advantage

Our integrated approach and superior product quality allows us to provide highly customized solutions to manufacturers around the world. At GXLJ, we are dedicated to meeting and exceeding customer needs and requirements. Our staff is continually trained to stay current with cutting-edge developments in the field, for ongoing product improvement.

By controlling the design and manufacturing process, GXLJ is able to ensure strict quality control, by adhering to our TS16949 certification. Share your goals and business challenges with us. We will ask questions, listen, and respond to create solutions that fit like they were made for you - because they are.

GXLJ Catalyst for Exhaust emissions

Advantage

GXLJ specializes in the manufacture of high performance catalytic converters and metal/ceramic substrates. The cores offer a significant advantage, being more economical and less restrictive, while maintaining high durability.

With our cores you'll also experience additional advantages:

1. They are more cost effective in larger diameters

2. They have a quicker "light off"

3. The metallic cores experience 15%-30% less pressure drop than a ceramic of the same size and cell density

4. They provide more cost effective canning methods

5. Reduction of overall size of packaging

6. Can be produced to weld directly in exhaust system

7. They have higher thermal shock resistance

Welcome to consult us!
