Guangzhou Clean-Link Filtration Technology Co., Ltd. >> Ceiling Filter for Auto Painting Booth Factoy (S-600G)

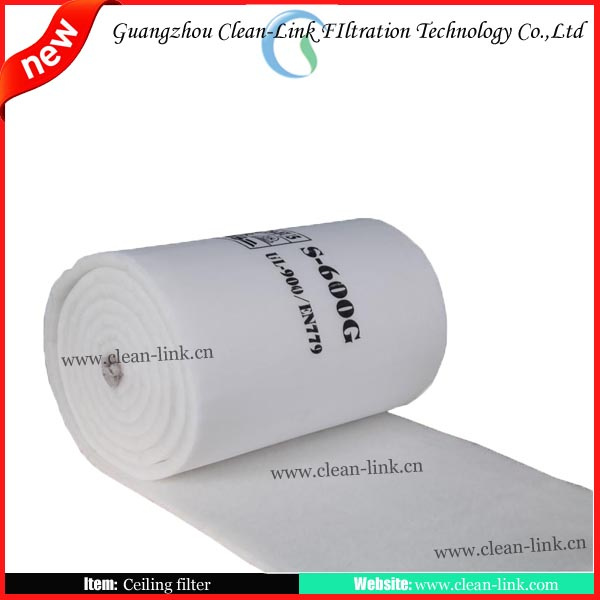

Ceiling Filter for Auto Painting Booth Factoy (S-600G)

Ceiling Filter for Auto Painting Booth Factoy (S-600G)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 5/Roll
Pay Type: T/T
S-600G Ceiling fitler

1. It is made from the anti-break organic synthesis fiber in high-powered high melt way;
2. The wind surface of the mesh is specially compact, this structure make the filtering material keep the:

High filteringefficiency
Large dust holding capacity;
Even more;
Working life;
Saves the systems operation cost;

3. It is at the customers' choice that the material have the entire coherency, the surface viscosity, dry processin

Using

1. Applied to the air filtration for the painting factory, the spray workshop, stoving varnish room and so on.
2. Applied to automotive factory, the auomobile repair shop, the motorcycle fctory, the bicycle factory, the operating system of the household appliances painting.
Type C- 6 00G C-5 6 0G C-350G AF- 6 00G FS- 6 00G S- 6 00G
Material Polyester
Initial resistance 30Pa 35Pa 30Pa 45Pa 35Pa 35Pa
Final resistance 450Pa 430Pa 400Pa 430Pa 450Pa 450Pa
Dust holding at tested final 6 50g/m² 580g/m² 380g/m² 430g/m² 6 20g/m² 6 80g/m²
Filtration class F5
Resistance humidity 100%
Temp.resistance 120°c 120°c 110°c 120°c 120°c 120°c
Temp.short peaks 140°c 140°c 120°c 140°c 140°c 140°c
Thickness 22mm
Roll sizes standard 1. 6 *21
2.0*21
1.0*21

Prod Model: S-600G
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight: 600g
Model Number: F5
Dimension: 1.6/2.0*21m*22mm
Thickness: 22mm
Temp.Resistance: 125oc
Type: Air Filter
Function: Air Filter
Transfer Function: Low Pass
Structure: Filtering Machine
Type11: Qualitative
Material: Fiber
Guangzhou Clean-Link Filtration Co., Ltd. is a wealth of the industry has many years of experience, Specializing in the production of air filter and has remarkable achievements enterprises, We occupy 6000 square meters of the area of our workshop, 3 import production lines, With research and development, manufacturing powerful technical force. Our products sell well to Japan, South Korea, Australia, the US, and so on many countries and the area.
