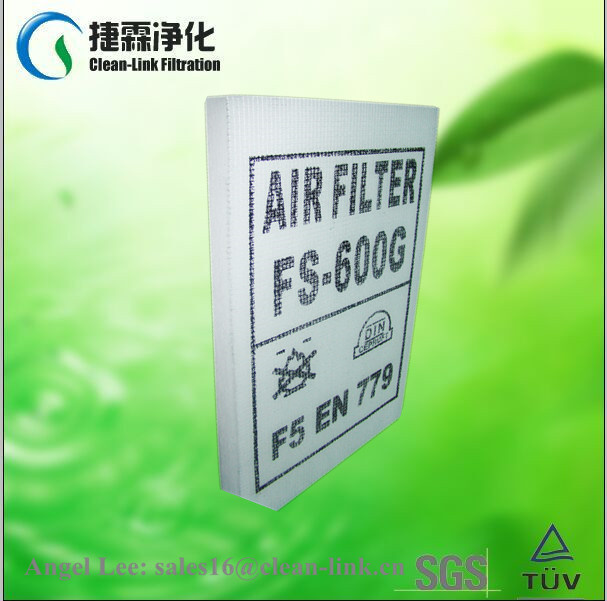

25mm Thick 600 Gram Weight Roof Filter for Car Painting Booth/Car Painting Room

Speciality:
1.It is made from the anti-break organic synthesis fiber in high-powered high melt way.
2.Gradual structure,use the technology which encrypts gradually the multi-layered.
3.The fiber density increases gradually toward pure air.
4.It is at the customers' choice that the material have the entire coherency, the surface viscosity, dry processing.
5.Conform to European and American classifications for nonflammability.

Using:
1.Apply to the air filtration for the painting factory, the spray workshop, stoving varnish room and so on.
2.Apply to automotive factory, the automobile repair shop, the motorcycle factory, the bicycle factory, the operating system of the household appliances painting

Remark:based on customer's requirements , the whole roll and all the size are supplied.

type	C-600G	C-560G	S-560G	AF-600G	FS-600G	S-600G
Material	Polyester	Polyester	Polyester	Polyester	Polyester	Polyester
efficiency	38%	35%	35%	41%	38%	38%
Avg.arrestance	99%	98%	96%	98%	98%	97%
Air velocity	0.25m/S	0.25m/S	0.25m/S	0.25m/S	0.25m/S	0.25m/S
Rated air flow	900 m³/h	900 m³/h	900 m³/h	900 m³/h	900 m³/h	900 m³/h
Initial resistance	38Pa	35Pa	30Pa	45Pa	35Pa	35Pa
Final resistance	450Pa	430Pa	400Pa	430Pa	450Pa	450Pa
Dust holding at tested final	430 g/m³	400 g/m³	380 g/m³	400 g/m³	430 g/m³	450 g/m³
Filtration class	F5	F5	F5	F5	F5	F5
Resistance humidity	100%	100%	100%	100%	100%	100%
Temp.resistance	120ºC	120ºC	110ºC	120ºC	120ºC	120ºC
Temp. short peaks	140ºC	140ºC	120ºC	140ºC	140ºC	140ºC
Normal thickness	22mm	22mm	22mm	22mm	22mm	22mm
Roll sizes standard	1.6*21 2*21 1*21	1.6*21 2*21 1*21	1.6*21 2*21 1*21	1.6*21 2*21 1*21	1.6*21 2*21 1*21	1.6*21 2*21 1*21
