Ce Standard Automobile Maintenance Equipment Car Spray Booth Baking Oven (GL4000-A2)
Price: |
US $ 2000-25780/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |

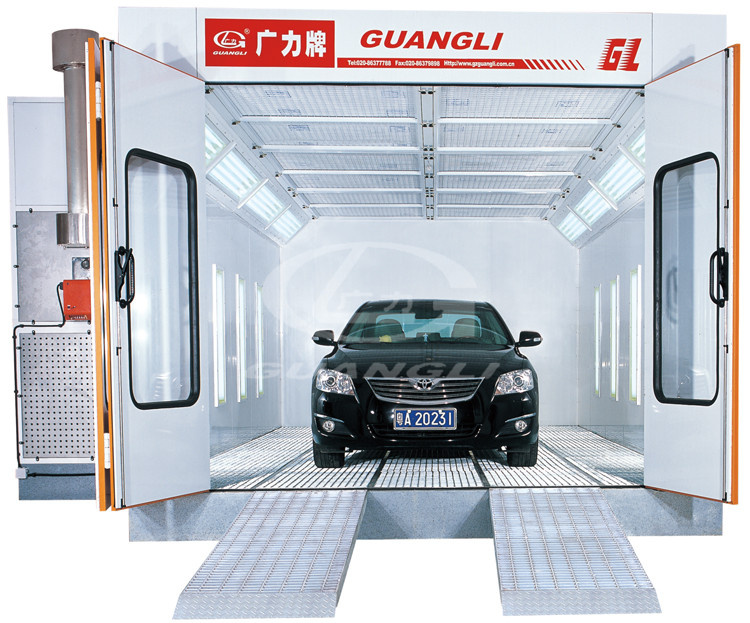

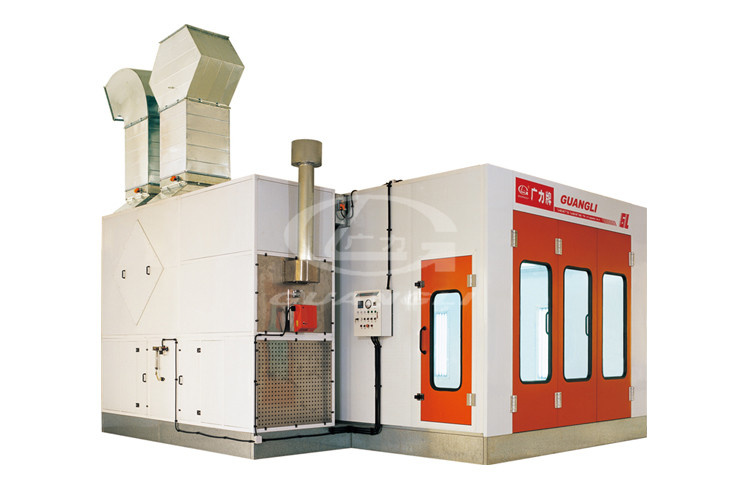

CE Standard Automobile Maintenance Equipment Car Spray Booth Baking Oven(GL4000-A2)Description--Wall panel :sandwich style,δ=50mm,rock wool.(polystyrene is optional)
--Basement :steel strucutre,full grids .ramp:2 pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pc of emergency door with pressure lock.
--One unit of 11kw intake fan and one unit of 11kw exhaust fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,4m straight chimney and 2 small bends.
--Electrical VCD. One pressure meter.
--spraying/baking transition damper,automatically air controlled.
--Fire protection equipment:1set,the inductor controll closed;energy-saving equipment:1 set.
--Heat exchanger:stainless steel.Riello /RG5S burner.
--Roof filter:6 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5 pcs of floor filter and 2 pcs of air mouth filter.
--upper light :10sets,4*40W per set. side light:8sets,4*40w.
--Control box: imported components,overload,overheat,phase-lacking, phase-locking protection,Motor soft start.
--Automatically stop when preset time is up.
--Constant temperature spraying.Model | GL4000-A2 |
External size (m) | 7.0x5.6x3.5 |
Internal size (m) | 6.9x3.9x2.7 |
Entrance Width(m) | 3.0 |
Entrance Height(m) | 2.66 |
Fan capacity( m 3 /h ) | 30000 |
Air velocity (m/s) | 0.3-0.5 |
Drying Temperature | 60-80 |
Oil consumption (L/unit) | 6-8 |
Power (kw) | 25 |
Suitable Automobile Type | Saloon Car |
Guangli Spray Booth ShowGuangli Spray Booth Series

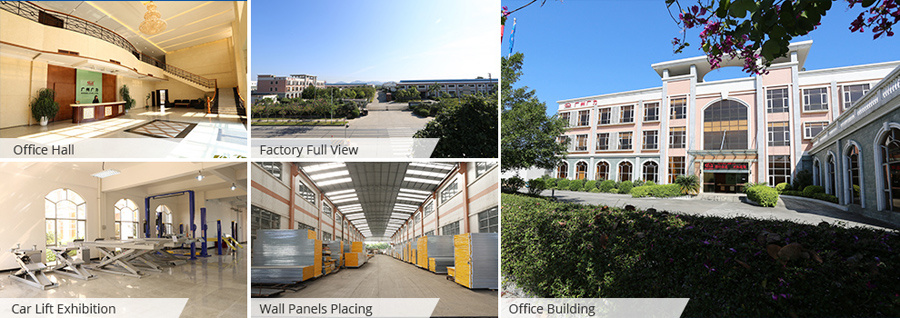

Company ProfileGZ GUANGLI EFE CO.,LTD is a professional manufacturer specializing in manufacturing Spray Booth and
Car Lift since 1994,which covers 58,000M2 of grounding area and 36,000M2 of building area,having a
good reputation among Chinese auto-maintenance enterprise.GuangLi Brand is one of the best brand in
China and exported to 90 different countries, the sales volume of Spray booth ranks top in this field. Our
products have been approved and authorized in many car manufacturers' and thought highly of:Guangzhou

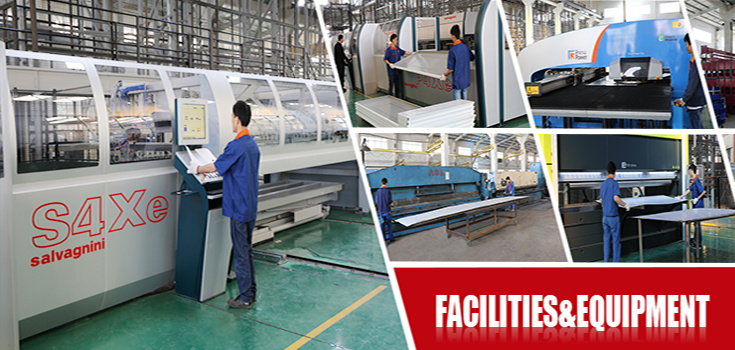

Honda,Dongfeng Honda,FAW Toyota,Dongfeng Peugeot,Dongfeng Nissan,BMW South China etc.EquipmentWe have the most-advanced sheet metal production line imported from Europe and have achieved the
world-class production level among this industrial.Service after the SaleOur relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency. FAQ1.Q:Are you Manufacturer or Trading company?
A:We are a professional manufacturer with our own export department.
2.Q:Where is your company located? How can I visit there?
A:Our company is located in Guangzhou.All clients, from home and abroad, are warmly welcomed to visit us.
3.Q:How about the quality of the products?
A:With the advanced machines, strong and professional R&D team and material
sources,our products are excellent in performance and craftsmanship.
4.Q:Can we customize our product?
A:Yes,you can.Customized material and standard are acceptable. We can provide
different standards according to your market and favor.
5.Q:What's the MOQ for each items?
A:We accept one piece/set each time.
6.Q:What's the delivery time?
A:If the product you ordered is our standard configurations, it's 7 workdays. Why Choose Us 1.More than 20-year experience in Spray booth and car lift field. 2.Superb unique technology and Automatic production line.3.Large order can be placed.4.Advanced equipment and exquisite workmanship.5.Durable and reliable.6.Excellent pre-sales and after-sales service.Warmly welcome to contact:Sunnie Di
Tel: 0086 20-86378972
Fax: 0086 20-86569629
Mobile: 0086 139 2506 1383
WEB: http://www.gzguangli.com
Prod Model: |
GL4000-A2 |
Door Width(M): |
3.0 |
Door Height(M): |
2.66 |
Air Flow (M3/M): |
30000 |
Filters: |
High Efficiency Filter |
Color: |
Red Blue Orange White |
Usage: |
Car Painting Baking |
Vehical Suited: |
Saloon Car |
Warranty: |
Yes |
Heating System: |
Riello Brand Diesel Burner |
Lighting System: |
LED |
Certification: |
GS |
Airflow Direction: |
Fully Undershot-type |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Type: |
Painting Spray Booth |
Brand: |
Guangli |
Founded in 1994, Guangli Electromechanical Engineering Facilities Co., Ltd. is the first automobile spray booth manufacturers in China. Now the largest one in South China in this line. GUANGLI has our own enterprise headquarters and production base, which covers 58, 000M2 of production area and36, 000M2 of building area. With the advanced machines, strong and professional R&D
Team and material sources, our products are excellent in performance and craftsmanship.
We have employees about 300, among which are over 60 technical Engineers. Our main products is spray/baking booth, auto post lift, powder coating production line, automobile lifts tester and cleaner for electronic nozzle, dustless workshop, washing units etc. We have two brands about these products, Guangli and Ritian.
Ritian Electromechanical Engineering Facilities Co., Ltd. is a professional marketing company selling GuangLi /Ritian brand auto maintenance equipment and other special tools home and aboard. It has two permanent exhibition halls at Guangzhou and is an agent to market many famous domestic and foreign equipments and tools for automobile Repair. Ritian Company has more than 60 marketing employees who are ready at all time to provide automobile repair workshops and service station with desired services. Our products are not only well sold at home, but also enjoy a good reputation worldwide such as USA, Japan, Australia, New Zealand, Germany, South Africa, Russia, Thailand, Burma, Vietnam, Saudi Arabia, Yemen, Cambodia etc. In consentience with high-quality policy, we passed ISO 9001 when established our factory. Furthermore, after years of dramatic development, Guangli is distinguished as one of the best auto maintenance equipment manufacturers. Looking forward, Guangli will be insisted in high-quality policy, optimize customer service, focus on innovation, upgrade administration level, confront changes with full confidence.
