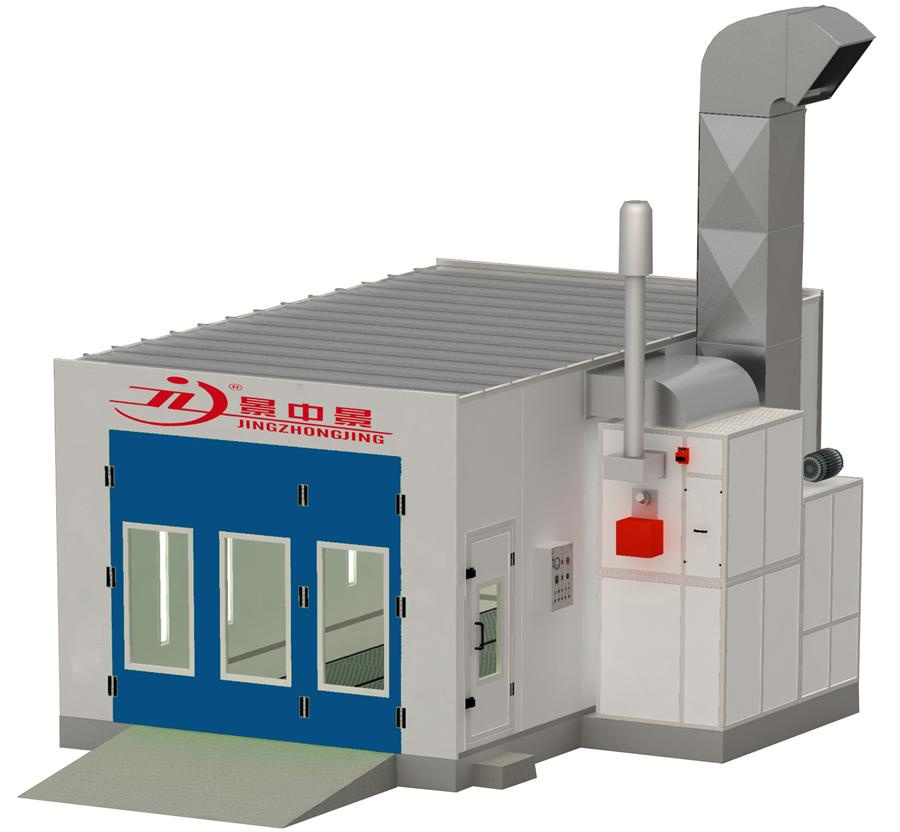

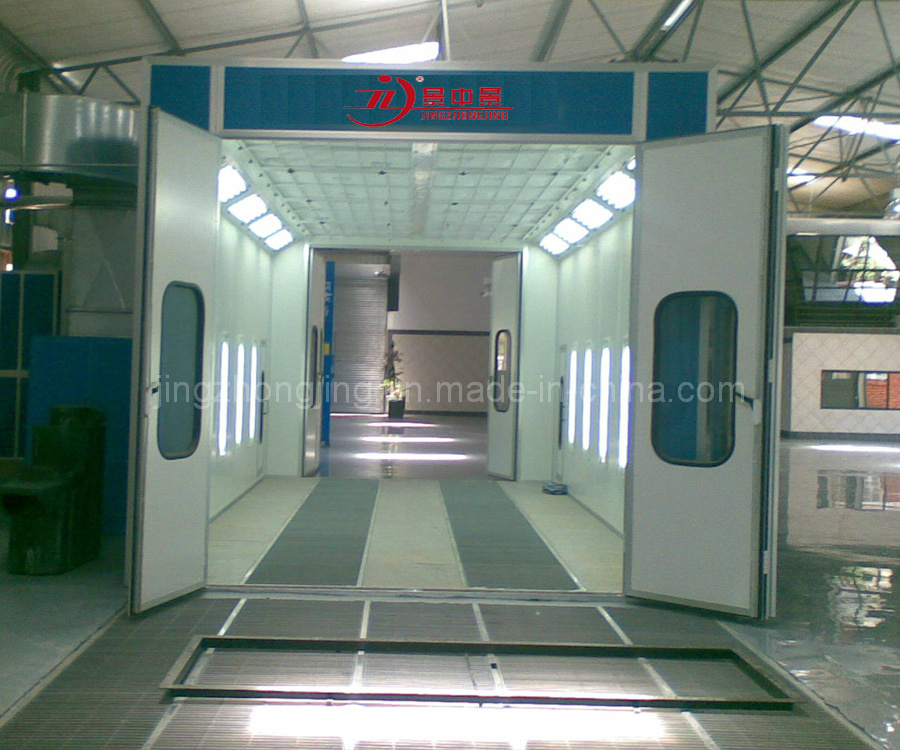

CE Proved Car Spray Booth / Paint Booth / Baking Oven
| Price: |
US $ 6000-13000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
JZJ-9400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Sea Blue, Red, Orange, White |
| Certification: |
ISO9001 |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Jzj |
Product Description
Technical Parameters for Paint Baking Booth:
1. Outside dimension (L x W x H) mm: 7000*5350*3450
2. Inside dimensions (L x W x H) mm: 6900*4000*2650
3. Large Door Size (W x H) mm: 3000×2600
4. Capacity of Blower fan: 25000m3/h
5. Capacity of exhausted fan: 25000 m3/h
6. Inside air speed: m/s:0.3
7. Air exchange volume time/h:280
8 Top temperature: 80ºC
9. Heating time(20ºC-80ºC)/min:5-6
10. Lighting volume: 1000LUX
11. Noisy: ≤80dB
12. TSP: mg/m3:≤1.4
13. gas consumption:8-10m3/h
14. Power:18kW
| Outside Dimension (mm) | 7006*5556*3450(L*W*H) | Inside Dimension(mm) | 6900*4000*2650(L*W*H) |
| Front Door(mm) | 3000*2600(W*H) | Service door (mm) | 1800*650(W*H) |
| Total Power | 18KW |
| Cabin system | Wall panel | 50mm EPS sandwich panel, steel sheet thickness: 0.426mm |
| Ceiling panel | 0.8mm Galvanized steel sheet. |
| Ramps | Three pieces 2000*900mm ramps |
| Basement | 300mm depth, middle with grids, side with checkered plates. |
| Glass | 4mm safety tempered glass |
| Windows | Square glass windows |
| Air Make-up System | Air Inlet fan system | 2*4kw centrifugal fan |
| Exhausted fan system | 1*7.5KW centrifugal fan |
| Ai capacity for fresh air | 24000m3/h |
| Air Flowing speed | 0.25m/s in empty booth |
| Exhausted ducting | 4meters straight ducting, one 90°elbow and one 30°elbow. |
| Purification System | Pre-filter | G3 grade |
| Ceiling filter | EU5 / F5 |
| Floor filter | fiber glass filter / G3 grade |
| Exhausted fan Filters | fiber glass filter and active carbon |
| Heating System | Heat Exchanger | SUS304 material, argon arc welding. |
| Heating burner: | RielloG20 diesel oil burner(gas burner for option) |
| Heating productivity | 180000Kcal/h |
| Spray to baking switch | 20N BELIMO brand electrical damper |
| Chimney ducting | 3 meters stainless ducting and one chimney elbow |
| Max heating temperature | 80degrees |
| fuel consumption | 6-8L/vehicle |
| Lighting System | Ceiling lights | 8 Units, each 4 * 36W Philips lamps, Total 1152 W |
| Side lights | 8 Units, each2 * 36W Philips lamps, Total 576W |
| Illumination | 1200LUX |
| Controlling system | Micro-computer programming system | Spraying & baking switch, lighting switch, emergency stop,
breakdown alarm, failure alarm, pressure gauge |
Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.
We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.
Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.
Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.
Welcome the customers from China and all over the world to join us!
