Launch Tlt445W Car Lifting Machine Wheel Alignment 4 Post Lift (Rated Capacity: 5.5 Ton) Lifting of Various Vehicles

Launch TLT445W car lifting machine Wheel Alignment 4 Post Lift (Rated Capacity: 5.5 Ton) lifting of various vehicles

Product Description









TLT445W Features

Two-layer concealed plate structure, excellent synchronizing performance with the horizontal precision of 1mm.
Front wheel turn plate's position is adjustable and rear wheel sliding plate is extended for various vehicle type.
Deployed with rolling jack with small scissor hydraulic lifting and lowering. can be moved back and forth and easy to adjustment  tire.
Positioning level's accuracy is adjustable, distance between platforms is adjustable, wheel base in certain scope is adjustable .
Driven by hydraulic cylinder , full-scope mechanical safety locking by locking latch ,manual lowering.
Cable rupture safety system ,effectively protects vehicle from overturn.
Four connected steel cables force synchronized movement of the lift, effectively prevent vehicles from sloping.
Cylinder travel limit device effectively protects cylinder and extends its lifespan.
Electric controlled lifting and lowering type is optional.
The installation position of turntable and side slip plate can be moved backwards and forwards .
Applicable for vehicles with different wheel base.
CE certificated.

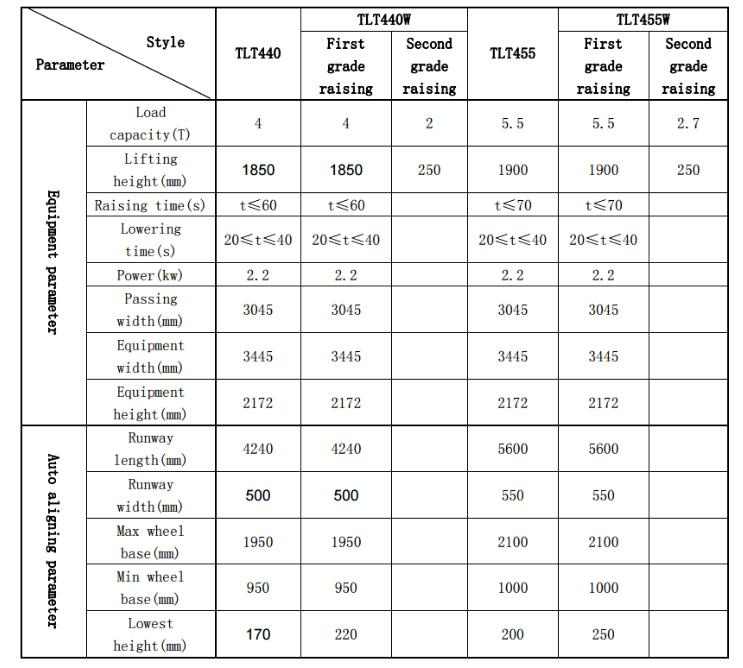

TLT445W Parameter


Rated load:    5500kg
Lifting height:    1900mm
Initial height:    250mm
Lifting time:    ≤70s
Lowering time:    ≥20s≤40s
Max. drive-on width:    3045mm
Platform length:    5600mm
Platform width:    550mm
Overall width:    3445mm
Overall height:    2172mm
Motor power:    2.2kw
Motor voltage:    3 phase/380v or Single phase/220V

Secondary lift
Platform length:    915-1450mm
Platform width:    215mm
Lifting time:    ≤ 45s
Lowering time:    ≥10s ≤20s
Lifting load:    2700kg
Lifting height:    450mm
Working noise:    ≤70dB(A)
Working oil pressure:    16MPa
Working air pressure:    0.5-0.7 MPa
