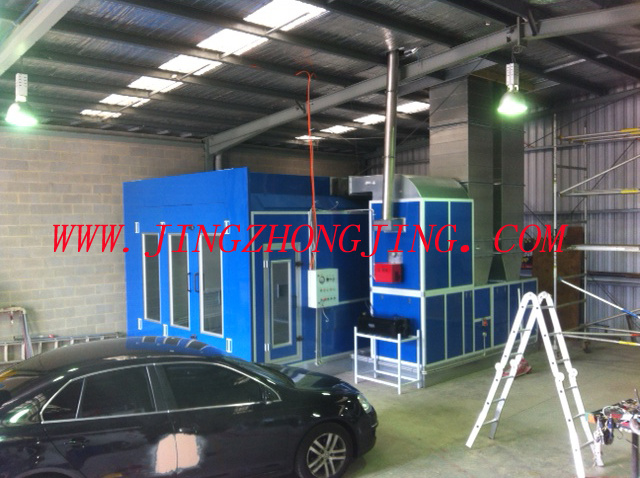

CE Certificate Car Spray Booth / Paint Booth / Baking Oven of Australia Standard
| Price: |
US $ 8000-10000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
JZJ-8000 AU |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standards: |
Australia Standard |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Jzj |
Product Description
Hight quality spray booth with low priceModel:JZJ-8000AU spray booth for Australia Market
Any Size Requirements Can Be Met
with better ventilation and strong powerA. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.WarrantyThe goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.JZJ ProductsHigh quality and advanced technology are applied in JZJ product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.
Specification: | Outside Dimension (mm) | 7006 * 5656 * 3450(L*W*H) | Inside Dimension(mm) | 6900 * 4000 * 2650(L*W*H) |
| Front Door(mm) | 3000*2900 (W*H) | Service door (mm) | 1800*650(W*H) |
| Total Power | 16.5KW |
| Cabin system | Wall panel | 50mmEPS panel, double face steel sheet thickness: 0.6mm |
| Ceiling panel | Galvanized steel sheet |
| Basement | 300mm depth, full twisted galvanized grids |
| Ramp | 3pcs 2000 x 900mm ramps |
| Glass | 6mm safety tempered glass |
| Windows | Square glass Windows |
| Air Make-up System | Air Inlet fan system | 1 * 7.5kw turbo fan, proof-explosion motor, Ex rated |
| Exhausted fan system | 1 * 7.5kw turbo fan, proof-explosion motor, Ex rated |
| Ai capacity | 25000m3/h |
| Air Flowing speed | 0.3m/s in empty booth |
| Air Control method | One manual damper for air inlet and exhausted system |
| Exhausted ducting | 12 meters air duct, one flop damper and one weather hood and 4pcs 45degrees offsets |
| Purification System | Pre-filter | G3 grade. Pockets filter. |
| Ceiling filter | EU5 / F5 |
| Floor filter | green fiber glass filter / G3 grade |
| Exhausted fan Filters | Pocket filter or M green fiber glass filter. |
| Heating System | Heat Exchanger | SUS304 material, argon arc welding. |
| Heating burner: | Riello G20 diesel oil burner(gas burner for option) |
| Heating productivity | 200000Kcal/h |
| Spray to baking switch | 20N BELIMO brand electrical damper |
| Chimney ducting | 3 meters stainless ducting and one chimney elbow |
| Max heating temperature | 80ºC |
| Heating time | 4-6min(20-60ºC) |
| fuel consumption | 5-6Litters /vehicle |
Lighting System
(Must external type) | Ceiling lights | 8 Units, each 4 x 36W Philips lamps, Total 1152 W |
| Side lights | 8 Units, each 2 x 36W Philips lamps, Total 576 W |
| Illumination | 1100LUX |
| Controlling system | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge |
Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.
We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.
Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.
Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.
Welcome the customers from China and all over the world to join us!
