CE Approved Full Down Draft Environmental Car Spray Equipment Automotive Paint Spray Baking Booth
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Money Gram |
CE Approved Full Down Draft Environmental Car Spray Equipment Automotive Paint Spray Baking BoothGL9-CE Description--Wall panel :sandwich style,δ=50mm,polystyrene.(Rock wool as optional.)
--Basement:steel structure,full grids.
--Ramp:2pcs of grids.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--Frame:steel,powder coated.
--One 11kw intake fan.One 7.5kw exhaust fan.11kw exhaust fan as optional. Intake duct as optional.
--5m straight exhaust ducts,one 90° bend,and one 60°bend,5m straight chimney and 2 small bends.
--Spraying/baking transition damper:automatically air controlled.
--Heat exchanger:stainless steel.Burner: RIELLO /G20S Burner.
--Roof filter:8pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--5pcs of floor filter and 2pcs of M style air mouth filter .
--Upper light:12sets,4*40w per set.Side light:10sets,4*40w per set.
--Control box: imported components,overload,overheat,phase-lacking protection,straight driven motor.
--Automatically stop when preset time is up.
--Constant temperature spraying.-- 22.5kw power.| Model | GL9-CE |
| External size (m)(LxWxH) | 8.7x5.63x4.23 |
| Internal size (m)(LxWxH) | 8.6x4.0x3.4 |
| Entrance width(m) | 3.0 |
| Entrance height(m) | 3.35 |
| Fan capacity( m 3 /h ) | 36000 |
| Air velocity (m/s) | 0.25-0.35 |
| Oil consumption (L/unit) | 6-8 |
| Power (kw) | 22.5 |
| Exhaust type | Full-undershot,Bilateral,Semi-down,Unilateral etc |
| Drying Temperature(ºC) | 20-80 |
| Water-based paint device | As option |
| Color | Orange,Blue,Red,White,or Client's Requirements |
| Suitable Automobile Type | Midsize Bus |

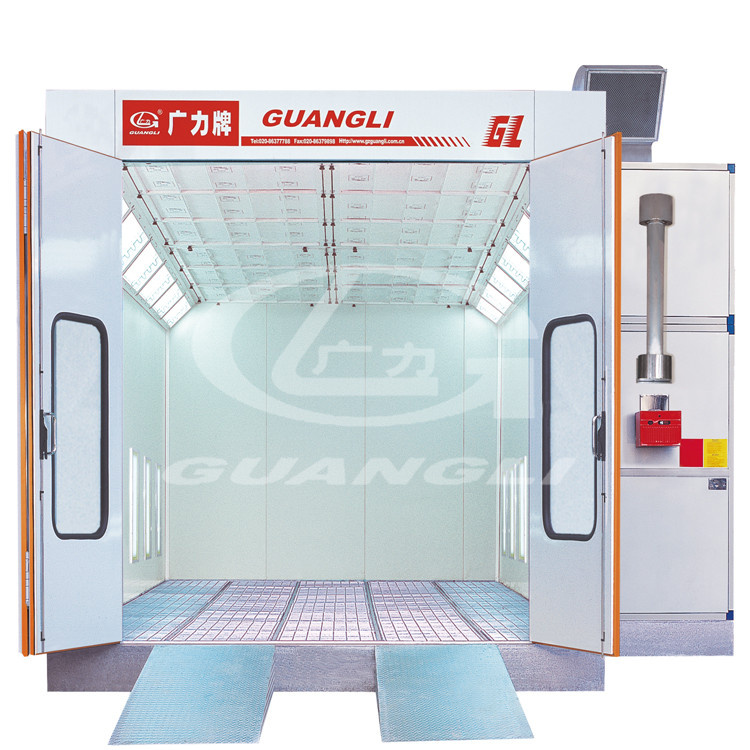

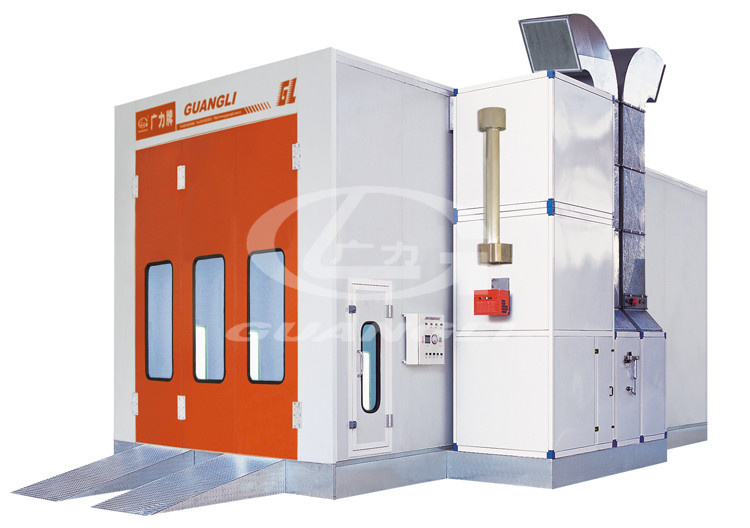

GL9-CE Spray Booth Show

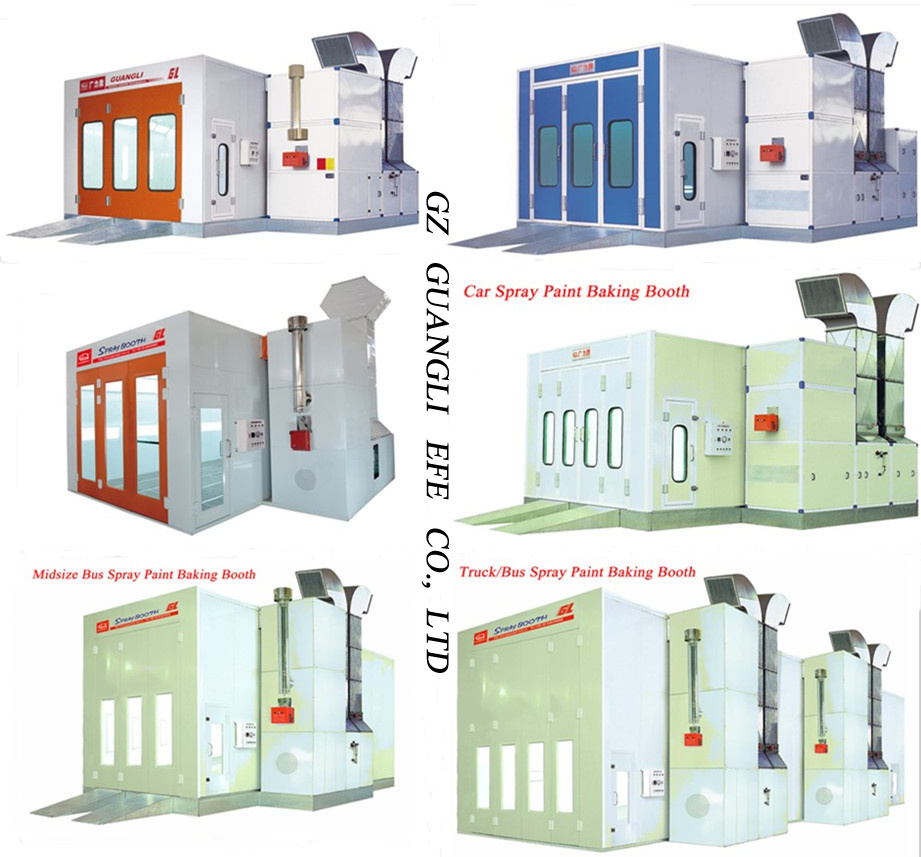

Guangli Spray Booth Designs

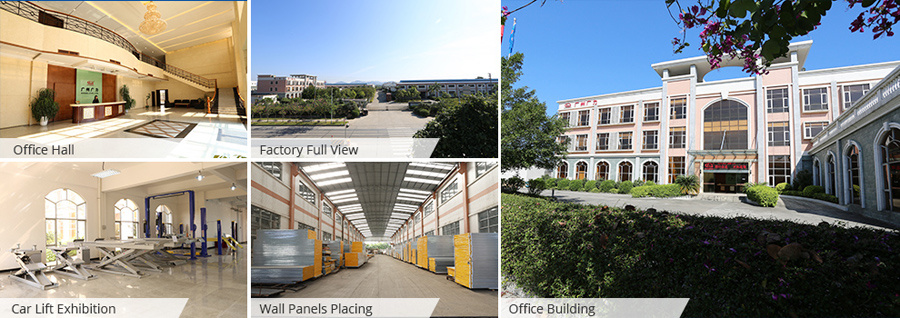

Company profileGZ GUANGLI EFE Co., Ltd is professional spray booth and car lift manufacturer in China for more than 20 years technical and production experience. Founded in 1994, Guangli has our own enterprise headquarters and new factory, which covers 58, 000M2 of grounding area and 36, 000M2 of building area. All our Spray booth, painting booths and car lifts have passed the CE certificate, CCS certificate and our company has passed ISO9001. Our products have been used in many car manufacturers' and thought highly of: Guangzhou Honda,
Dongfeng Honda, FAW Toyota, Dongfeng Peugeot, Dongfeng Nissan, BMW South China etc.
EquipmentWe have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.

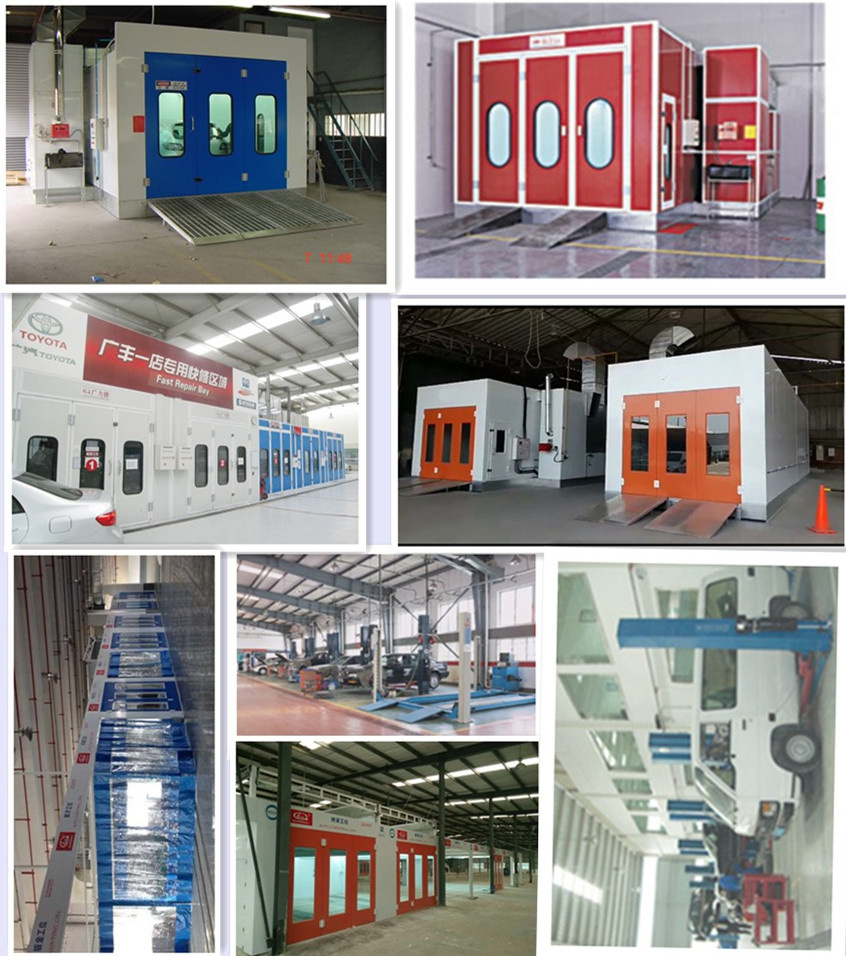

Successful Projects
Service after the SaleOur relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency. FAQQ1. What is your terms of packing?
A: Generally, we pack our goods in Iron frame packing and Carton packing.
Q2. What is your terms of payment?
A: 1.T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
2.L/C.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery
time depends on the items and the quantity of your order.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends
with them, no matter where they come from.Warmly welcome to Contact:
Tel:+86-20-86378972
Mobile: +86 13925061383
Website:www.gzguangli.com
| Prod Model: |
GL9-CE |
| Door Width(M): |
3.0 |
| Door Height(M): |
3.35 |
| Air Flow (M3/H): |
36000 |
| Technology: |
European technology |
| Lighting System: |
Upper Light+Side Light |
| Filters: |
High Efficiency Filter |
| Color: |
Red Blue Orange White |
| Usage: |
Car Painting Baking |
| Warranty: |
Yes |
| Heating System: |
Riello Brand Diesel Burner/Gas Burner |
| Certification: |
GS |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Painting Spray Booth |
| Brand: |
Guangli |
