Honeycomb Ceramic Substrate Used In Vehicle

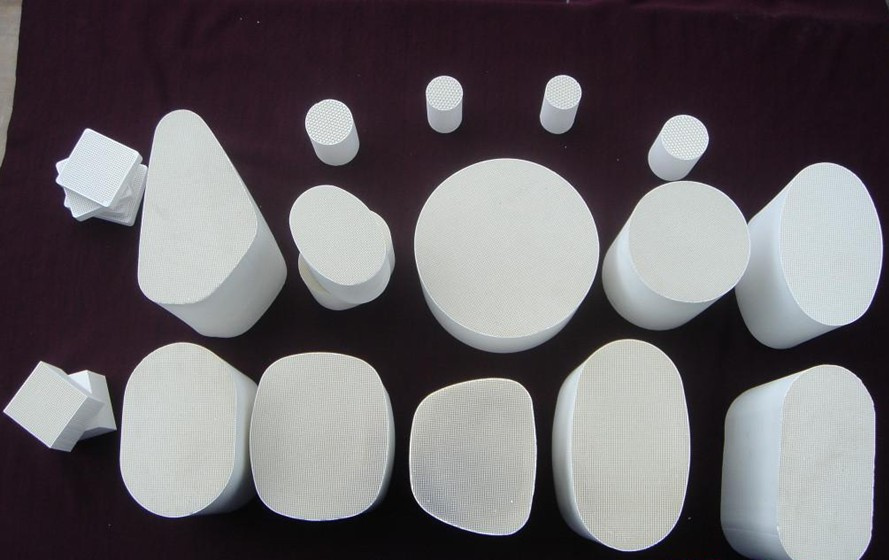

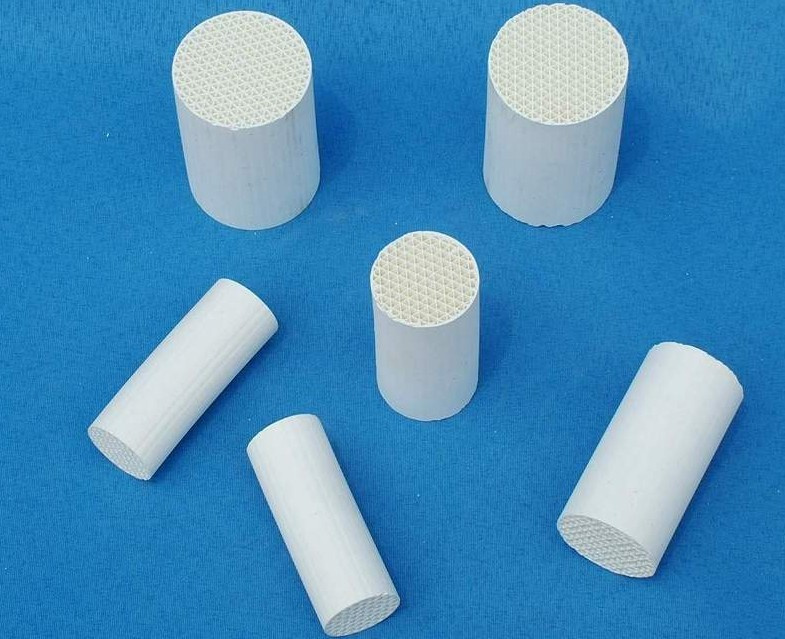

Honeycomb ceramic substrate is made of cordierite, and is used for car catalytic converter. The cells density can be 100 cpsi, 300 cpsi or 400 cpsi. The shape will be round, oval or racetrack. We can supply both ceramic element coated with noble metals of PT, Pd, Rh and ceramic element without noble metals.
The corundum/mullite and cordierite/mullite complex thermal storage honeycomb ceramic developed by our company has the following notable characters: perfect high temperature resistance, anticorrosion, perfect thermal shock stability, high mechanical strength, large thermal storage capacity, advantaging heat conduction property, energy conserving result and service life are improved greatly.
Specifications
*Advanced ceramic catalyst substrate manufacturer
*Thin wall thickness, high surface area, good thermal shock
*Strong production capacity, we both produce catalyst and catalyst substrate
*Leading technology level, the most experienced experts and advanced production
*Using advanced scientific formula, offer best products and service to every customer
| Index | Metric Unit | Value | British Unit | Value |
| Material Density | g/cm3 | 2.3-2.6 | Lb/ft3 | 151 |
| Average Linear Expansion (20-800) | 10-6/k-1 | <2.5 |
|
|
| Special Heat Capacity | KJ/Kg | 900-1200 |
|
|
| Heat Conductivity | W/MK | 1.8-3.0 |
|
|
| Maximum Application Temp. | celsius degre | 1350 |
| 2450 |
| Acid resist strength wt.loss | % | <4 |
|
|
| Water Absorption | % | <5 |
|
|
| Item | Test result | Test method |
| Cordierite principal crystalline phase (wt %) | ≥90 | X-Ray |
RT Mpa
(Mpa) | A axis | ≥16 | universal materials tester |
| B axis | ≥2 |
| C axis | ≥0.15 |
| Water absorption(%) | ≥20 | gravimetric hygrometer |
| Softening temperature(celsius degree) | ≥1360 | high-temperature
electric resistance furnace |
Coefficient of thermal expansion
(R~800celsius degree) (cm/cm/celsius degree) | ≤1.5×10-6
(550celsius degree) | thermal dilatometer |
≤1.2×10-6
(800celsius degree) |
| Maximum service temperature (celsius degree) | 1400 | / |
Thermal shock resistance
(R~850celsius degree) | 30 mins not crack, 5 circles | Air cooling |
Beihai Xiaoming International Imp&Exp Co., Ltd Established in 2008, which is a Private High-tech company located in Beihai city, China that is famous for its Silver Beach. We are a professional manufacturer and exporter of producing and exporting SiC/Al2O3/Zirconia Ceramic Foam Filter, Honeycomb Ceramic Heater for RTO, Infrared Cramic Plate, Cordierite/SiC Diesel Particulate Filter, Ceramic/Metal Honeycomb Substrate etc chemical products.
Beihai Xiaoming International Imp&Exp Co., Ltd is in the production, sales as a whole, and in cooperation with a number of large Group companies of major export commodities operated enterprises with a good reputation. For many years, with exports to Europe, and many countries in Southeast Asia, and received high praise.
We have a number of domestic and international famous academia senior adviser, own an innovation R & D team and sales elite. We have an excellent team of R & D\Production\Management and Sales, with passionate and responsibility. Currently, we have applied more than 30 patents for products developed and got certificates issued by international authorities such as TUV, IEC, UL, CE.
With the spirit of innovation during R&D, we were, we are and we will always be perfecting our products with the philosophy of " science, precision, accuracy and high efficiency". We hereby make our commitment: We offer our clients with the most effective and satisfying service, and this is our every person in our company to constantly pursuit.
