Car Rearview Camera System for Heavy Duty (BR-RVS7001)

Name: Car Rearview Camera System for Heavy Duty (BR-RVS7001)
Brand: ibuyautoparts.com
SKU: 753540235
Availability: InStock
Rating: 4.6 (94 reviews)

Price:	US $ 93.5-103.9/Piece
Trade Terms:	EXW
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

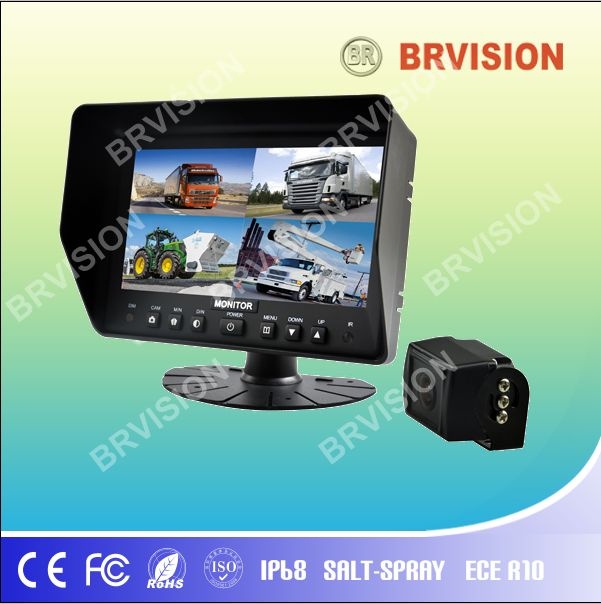

Rearview System/7inch Quad Split Monitor and Rear View Camera
Monitor Specification:
. Screen size: 7 inch new TFT panel
. Aspect Ratio: 16:9 image
. Input: 4-way video input with 4 reversing cable
. System: PAL and NTSC auto switching
. Resolution: 800 x R.G.B x480
. Brightness: 450cd/m2
. Power supply: 9-36V DC
. Built-in speaker
. Operation Temperature: -20ºC~+70ºC.RH95% Max
. Storage Temperature: -30ºC~+80ºC.RH95% Max

BR-RVC06

Camera Specification:

Image Sensor : 1/4 Color CCD
- TV System: N TSC/ PAL
- IP Rating: IP68
- Vibration Rate: 10G
- Ef fective Pixels N: 510×492 pixels P: 500×582 pixels
- Horizontal Resolution: 700TVL
- Video Output : 1.0vp- p,75Ohm,
- Built-in Lens:1.8mm
- Wide angle: 170°
- Power Supply: 12V DC(+/-10%)
- Power consumption: <3W
- Silver Alluminium housing.
- Oper at i ng Temp: - 20C° t o +70C°
- Storage Temp: - 30C° t o +80C°

Prod Model:	BR-RVS7001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	7 Inches
System:	PAL and NTSC Auto Switching
Resolution:	800 X R.G.B X480
Brightness:	450CD/M2
Power Supply:	9-36V DC
Image Sensor:	1/4 Color CCD
IP Rating:	IP68
Definition:	420TVL
Chip:	CCD
Waterproof Grade:	IP68
Interface:	4 Pin Connector

BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products

Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.

Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.

It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.

BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.

We specialize in:

. Vehicle Rearview Camera(CCD or CMOS)

. Vehicle TFT LCD Monitor

. Wireless Transmitter and Receiver

. Surveillance Camera

. OEM and ODM Project

BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
