Car Baking Oven with PLC Control System
| Price: |
US $ 8000-8500/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
YFT-F501 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Airflow: |
Full Downdraft |
| Burner Model: |
G20 |
| Color: |
as Requst |
| Brightness: |
>1200 Lux |
| Total Fan Capacity: |
28000 M3/H |
| Heating Exchange Capacity: |
158kw |
| Rated Power: |
18.5kw |
| Voltage: |
380V/400V/415V,Your Special Voltages Are Accepted |
| Empty Loaded: |
+/- 0.28m |
| Inside Dimention: |
7000X4000X2800mm |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Infitech |
Product Description

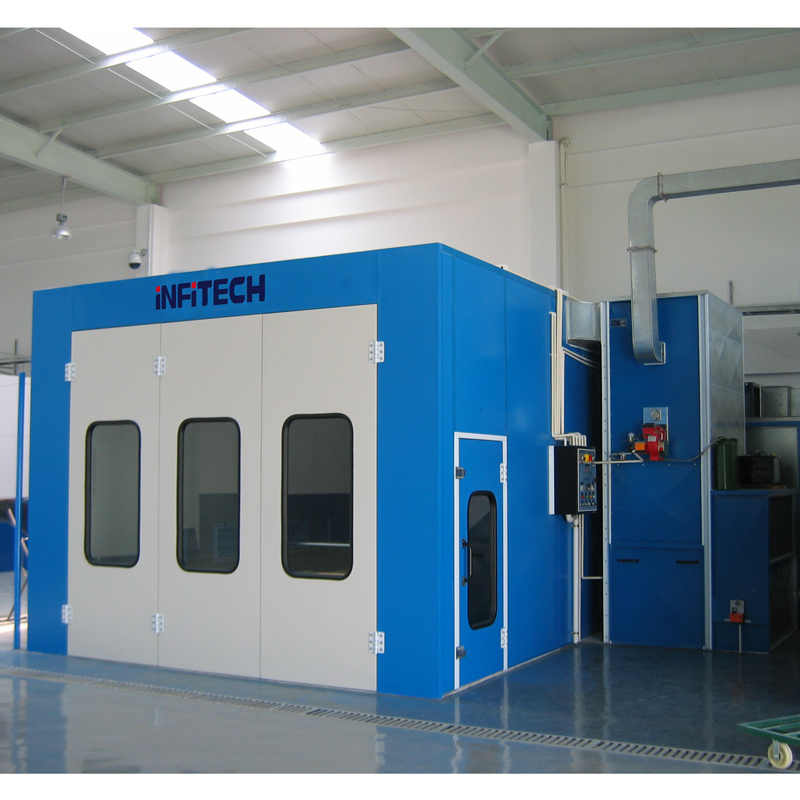

Car Baking Oven with PLC Control System
1.Advantages of this itemA. Touching screen man-machine interface device
B. Programmable intelligent control system
C. 158KW Burner with Over Temperature Protection
D. Big impeller Fan, Sparkproof Design2.Specification | STANDARD DESIGN | BS EN 13355: 2004 + A1: 2009
BS EN 60204: 2006 + A1: 2009 |
| Cabin structure | The internal dimension | 7000X4000X2800mm (L×W×H) |
| The external dimension | 7110X5560X3610mm(L×W×H) |
Base
| Base design | Full grid; Basement(H):350mm |
| Carrying capacity of the grid | 650kg/wheel |
| Filter area | 28m2 |
| Drive-in-ramp | 2000X1030X320mm,diamond structure |
| Grid description | 997X756mm, 40X3mm,
Pressed steel grating grille |
| Plenum height | 400mm |
| Wall panel | Wall Panel | 50mm wall panel:heat-resistant rock wool |
| Top material | 50mm wall panel:heat-resistant rock wool |
| Material edging | 1.2mm galvanized plate bending forming |
Door | Entrance door | 3200 X 2700 mm (W X H); 2 + 1 structure;
Containing frame |
| Working door | 800×2000 mm (W×H) ;Frame structure
With safety glass observation window |
Lighting
| Side lighting | 8 sets of boxes, each 2X36W, 576W total |
| Ceiling lighting | 8 sets of boxes, each 4X36W,1152W total |
| Lighting description | Protection grade IP55, CE certified electronic
ballasts, OSRAM lamp |
| Brightness | >1200Lux |
Filtration system
| Pre-filter | G3 grade pre-filter plate filter |
| Ceiling filter | F5 grade filter cotton, Model SP-600G |
| Bottom paint mist-collecting | G2 grade fiberglass paint-resistance filters |
| Exhaust filter | Fiberglass paint-resistance filters |
Inlet outlet system | Fan | Direct-type turbine fan |
| Fan power and motor | 1X7.5KW/1X5.5KW,970 rpm, 380 V, 50 Hz |
| Parameter inlet | 28000 m3/h, 650pa |
| Empty loaded | +/- 0.28m |
| Noise | <78 db |
| Heating system | Heat exchanger material | Stainless steel 1Gr18Ni9Ti(SUS304) |
| Heat power | 158KW |
| Temperature capability | 20° C (from -10°C to 10°C under painting state) |
| The Max working Temp. | 80°C |
| Heating time | 10-15minutes (from 20°C to 60°C under baking state) |
| Model diesel burner | G20 |
| Control system | Features | Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication |
| Pipeline | Straight:4 pieces; 90°: 1 piece; 45°: 1piece; Reducers: 1piece |
| Rated power | 18.5KW |

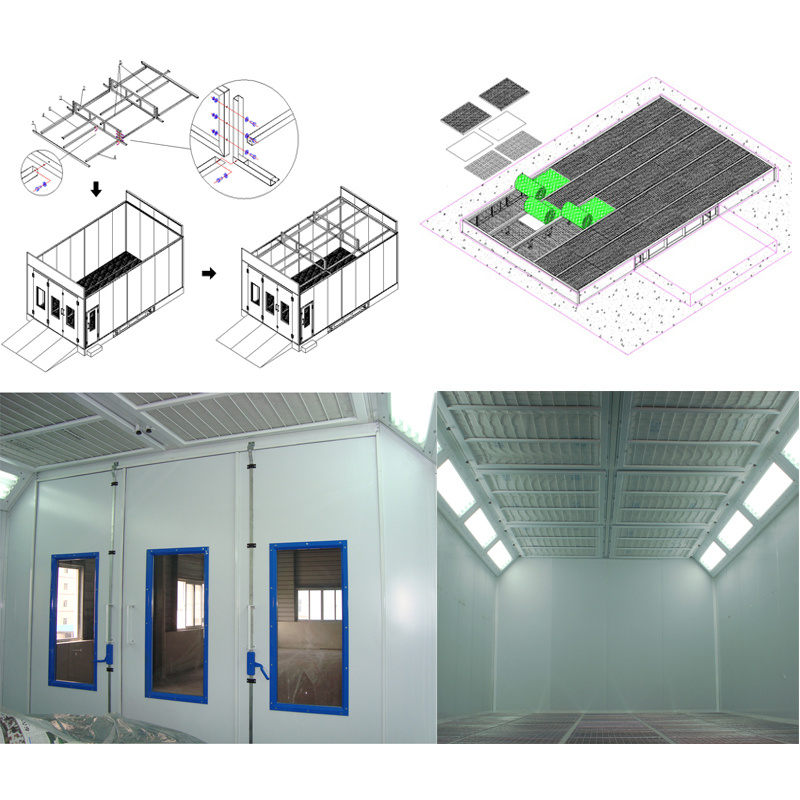

3.Component pictures
Cabin structure
Cabin structure adopt standard modular design, the staircase structure of the top external boxes, high strength and easy to install.
Lighting system
Adopting IP54 protection grade , the light box fully meet EU standards.
Base return air system
-Assembly structure can not be adjusted.
-Kinds of choice diversified the way of ground exhausting and mist-handling.
-Plug in new grid structure, flat contact surface touch, full grids cover the ground, steel grating load 650KG/ wheel, safe and reliable for supporting vehicles.
-Laying fiberglass paint-resistance filters on the bottom of grid,G2 Grade, accommodate paint of 6KG/m2.
-We support drive-in-ramp, according to the require of customer , we will provide the technology guidance of the base plane embedded beneath the ground zero.
-Other form of exhausting and mist-collecting disposal, please consult our sale engineer,we will provide the perfect pre-sale service and technical guidance.4.Why Choose Us
1.More than 10-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.

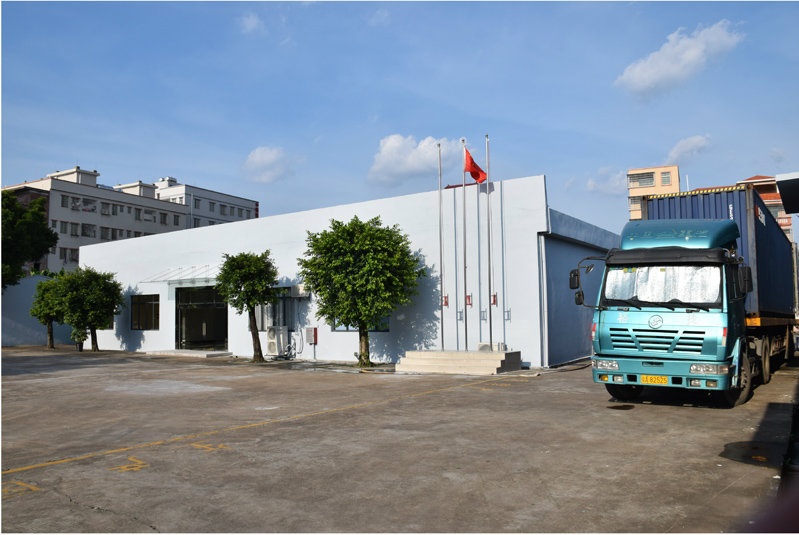

6.Excellent pre-sales and after-sales service.5.Factory View
