Bus and Truck Paint Oven with High Quality

Name: Bus and Truck Paint Oven with High Quality
Brand: ibuyautoparts.com
SKU: 714995862
Availability: InStock
Rating: 4.6 (120 reviews)

Price:	US $ 53500/Set
Min Order:	1/Set
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

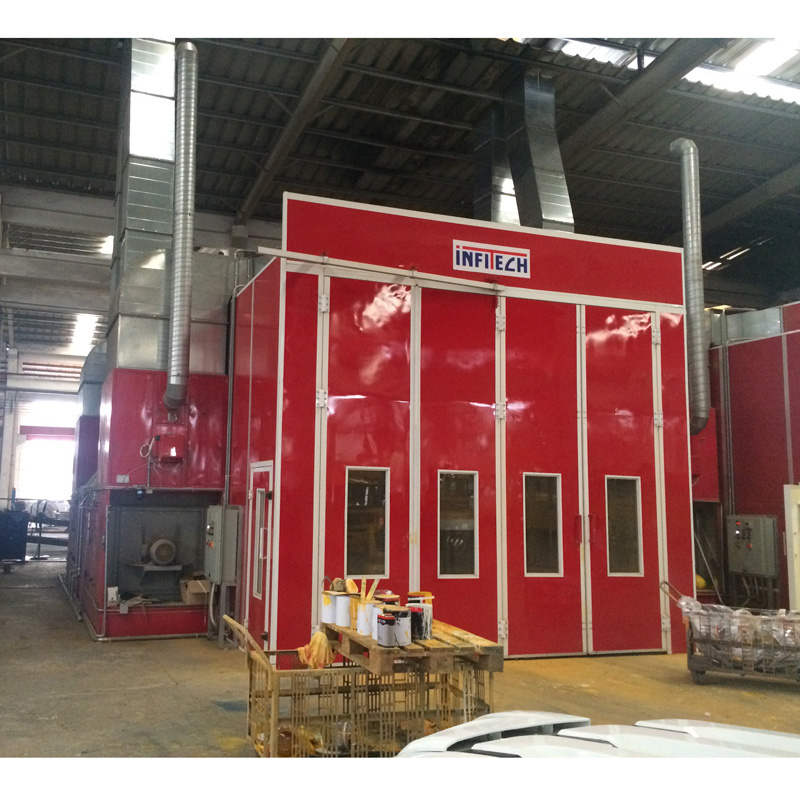

Bus and Truck Paint Oven with High Quality

Certification: CE
Management Certification: ISO9001: 2000
Warranty Time: 2 Years
Parameter:

Airflow	Internal Size (mm)	External Size (mm)	Heating Modes	Inlet/Exhaust fan	Ceiling Lights	Side lights	Air Speed
Full downdraft	13000X5000X4000	13160x6960x4660	Oil	4X11KW	18 set/3X36W IP65	22 set/2X36W IP65	0.3 m/s

Airflow
1.Downdraft for spray .
2.Innovative high efficient big impeller fan ,sparkproof design .
.
Entrance door
1.3+1structure, 4 observation windows with armoured glass 4300×3800 mm (W×H).
2.Safe door,observation windows with armoured glass,emergencylamp,door closer .

Cabin structure
1.Full grids, 900kg/ wheel.
2.75mm heat-resistant rock wood panel,base plate thickness:0.6mm.
3.600mmheight plenum chamber.
4.European bulge roof design.

Heating system
1.232KW high efficient , energy-saving heating exchanger
2.Cabin pressure self-adjusting
3.Double protection with over temperature

Control system
1.Invert energy saving system.
2.Water-based paint high efficient model
3.Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication.

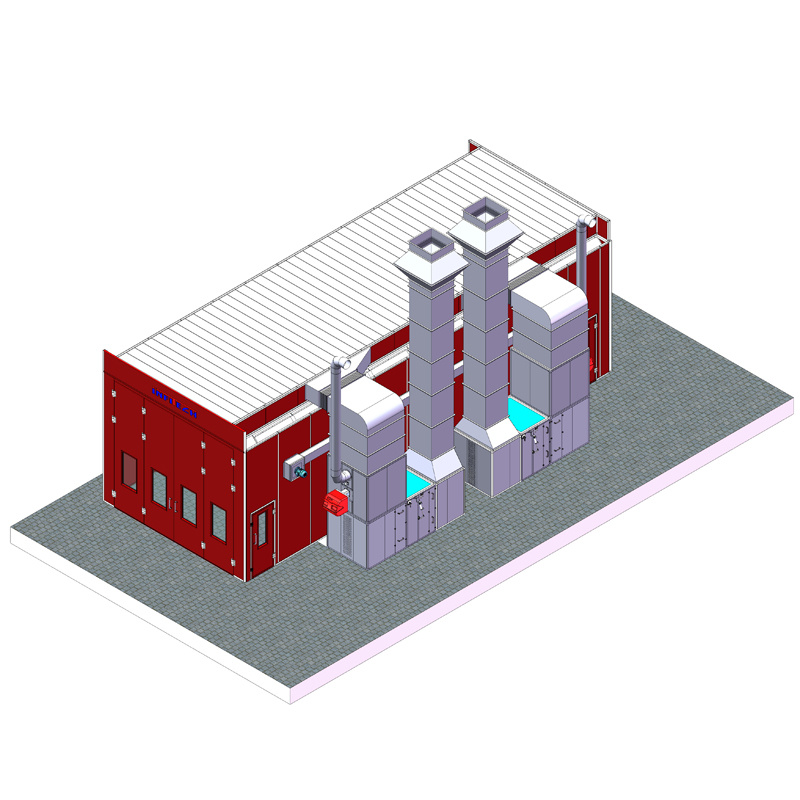

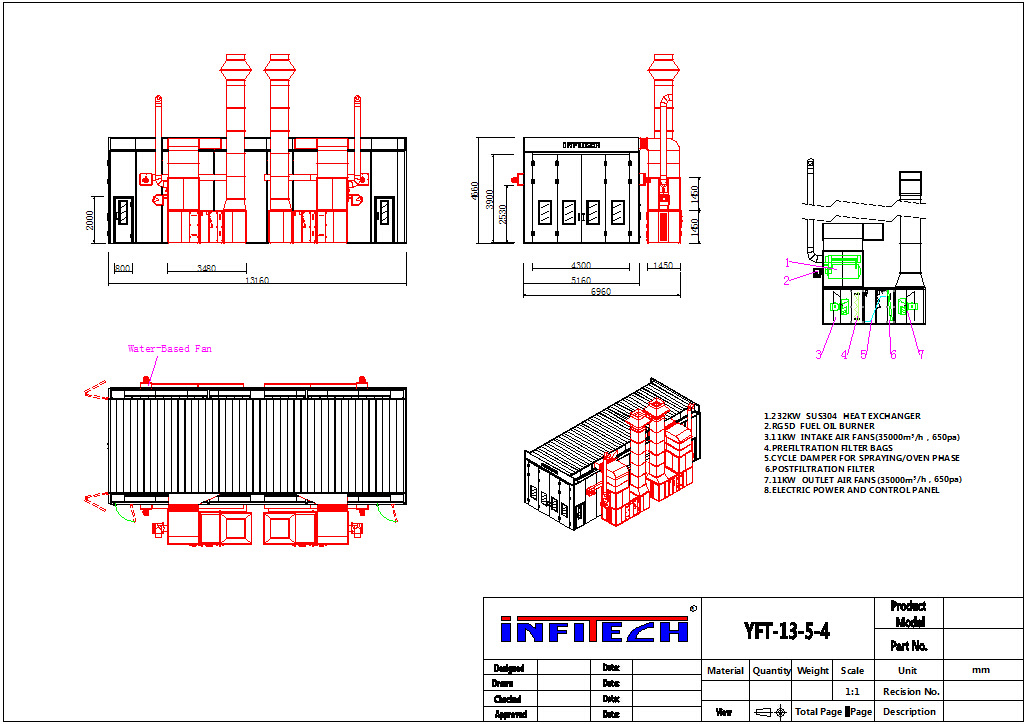

Design sketch

Why Choose Us
1.More than 10-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Excellent pre-sales and after-sales service.

Company Information

Prod Model:	YFT-13-5-4
Optional Colour:	White, Blue, Orange and Red
Heating Exchange Capacity:	232kw
Total Fan Capacity:	70000m3/H
Brightness:	>1500 Lux
Empty Loaded:	+/- 0.32m
Service Time:	Lifelong Maintenance
Motor Brand:	Siemens
Light:	Explosion-Proof
Air Exhaust:	Optional
Voltage:	380V/400V/415V, Your Special Voltages Are Accepted
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.

Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
