Bulldozer Rear View System with Auto Shutter CCD Camera (DF-729T0411)
| Price: |
Negotiable/Piece |
| Trade Terms: |
EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |

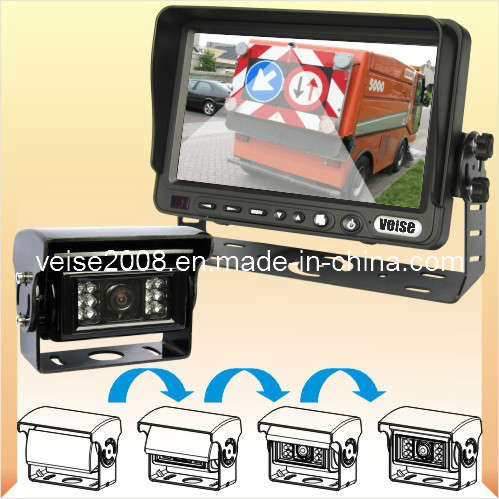

Bulldozer Car Camera Monitor System with Auto Shutter Camera
*Built-in Day/Night Sensor for Illumination of the Control Knobs
*It Features an On-Screen Menu for All Settings: Normal/Mirror view, Reversing Image Delay, Priority of Reverse Camera, Automatic switch ON (by reverse gear and or by direction lights)
*Rear view camera with waterproof IP69K
*Auto shutter heating CCD Camera system suitables for Garbage Trucks, Cleaning Truck, Trailer, Car, Truck, Bus, SUV, Motorhome, Farm, Boat and CCTV rear view/forward camera system
| Bulldozer Rear View PRODUCT SPECIFICATION(Model: DF-729T0411) |
| Waterproof Color CCD Auto shutter heating Backup Camera ( MODEL: DF-8093 ) |
| Monitor With One Camera View Input |
| Image Type: 1/3 Color SHARP CCD |
| Horizontal Resolution: 420TV Lines |
| Effective pixel: NTSC: 510(H)X492(V); PAL: 500(H)X582(V) |
| Backup Camera Usable Illumination: 0Lux (12 pcs LEDs for night vision 10M ) |
| Free viewing angle: 130 ° |
| Backup Camera Waterproof: IP69K |
| Shockproof: 10G |
| Video Output: 1.0Vp-p75Ω |
| Power supply: DC12V from Reversing Monitor |
| Dimensions: 96(W) x 70(H) x 78(D) mm (without mounting) |
| |
| 7 Inches TFT LCD Reversing Monitor (Model: SP-729) |
| 5" Color Reversing Monitor with Removable Sun Visor |
| Setting up the camera image normal or mirror |
| With one video input, set up the priority of reverse camera |
| Setting up the reversing image delay time: 0-30" |
| Responsing time less than 2" when reversing |
| Color System: PAL/NTSC |
| Display Resolution: 960(H) X 234(V) dot |
| Wide view angle(CR> 10): (up/ down): 60/70 (left/right): 75/75 |
| Brightness (cd/m2): 400 |
| Contrast ratio: 500: 1 |
| Back-light: Single LED |
| Operating temperature: -20º Cto +70º C |
| Storage temperature: -30º C to +80º C |
| Power suply: DC8~32V |
| External dimensions: W*H*D(185X124X23)mm |
| Weight Approx: 279g |
| |
| Product Accessories |
| Monitor bracket, 15m cable, Electrical connecting cable |
| Prod Model: |
DF-729T0411 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
400(CD/M2) |
| Free Viewing Angle: |
130 Degree |
| Shockproof: |
10g |
| Free Operating Voltage: |
DC8-32V |
| Interface: |
Air Plug |
| Definition: |
420TVL |
| Chip: |
CCD |
| Shell Material: |
ABS+PC |
| Waterproof Grade: |
IP69k |
