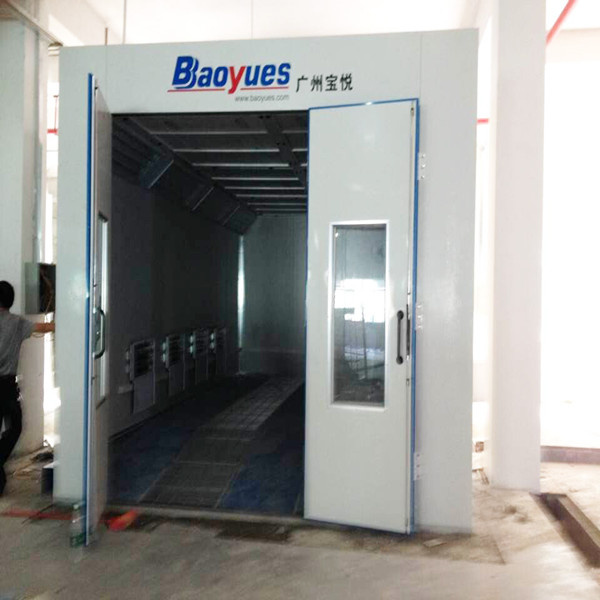

Best Quality Car Spray Oven Bake Booth (professional manufacturer)
| Price: |
US $ 6880set |
| Trade Terms: |
FOB,EXW |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
non-standard |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Namber: |
Non-Standard |
| Color: |
Optional |
| Safety: |
with Auto Pressure Emergency Door |
| Voltage: |
220V,380V,50Hz |
| Purification: |
≥95% |
| Noise Db(a): |
≤75 |
| Heating: |
Infrared Lamp Heating |
| Usage: |
for Car Spraying and Baking |
| Max Working Temprature: |
80 |
| Warranty: |
1 Year |
| Heating Mode: |
Infrared Ray |
| Paint Mist Treatment: |
Dry-type |
| Certification: |
CE |
| Condition: |
New |
| Type: |
Car Spray Oven Bake Booth |
| Brand: |
Baoyue |
Product Description
Clear advantage
1. Good after sale service
2. Professional design team
3. Experienced installing team
4. Abord installation service
5. Life-long technical support service
Product
Heating: Awith 10 unit short wave infrared lamp heating, total power: 30KW
Inside dimension: 6900x3900x2650
Base ment: Full grilles
Wall panels: 0.376mm color steel with EPS
Heating: RIELLO G20
Intake: 2x3kw Exhaust: 1x4kw
Company:
As Professional manufacturer and competitive factory price, we can control of the production cycle and product quality very good
Installation:
Deliver with detailed specification of installation and operation
Payment terms:
T/T, 30% for deposit and the balance 70% before loading into container
|
Inside dimension |
6900×3900×2650 mm (L×W×H) |
|
Outside dimension |
7000×5050×3400 mm(L×W×H) |
|
Front door |
Folding door, 3 folds, 3000×2600 mm(W×H), without frame cover, colour : blue. |
|
Emergency door |
1 unit, 650×1800mm (W×H), colour: white. |
|
Basement |
G alvanized steel assemble, 300mm high, quadrate steel support, 2 rows of grilles made by flat bar and twisted steel, painted , 3 rows of indented plates, painted. 2 pcs ramps, 520×2000mm(W×L) |
|
Wall Panels |
Thickness: 50mm, width:1150mm, tongue and groove structure, 0.376mm colour steel with polystyrene (EPS) insulation inside, colour: white . |
|
Light |
Ceiling Lights: 8Units ×4 Pcs= 32 Pcs × 36W, with electronic ballast, without s ide lights, illuminate ≥700LUX |
|
Generator cabinet |
Intake from side upper, exhaust from back upper, quadrate steel frame, white coated steel cover, filled with heat preservation material inside. |
|
Intake and exhaust system |
Inlet: 2× 3 KW double-intake centrifugal fans, model YDW4.5 M 1, air capacity for each fan: 1 0 500m 3 /h. |
Outlet: optional. |
|
Heating system |
With 10 units short wave infrared lamp heating, 3pcs/unit, 1KW/pcs, total power: 30KW, Max temperature: 80 °C |
Purification system |
Pre-filter, ceiling filter, exhaust fibreglass filter |
|
Roof |
Galvanized steel |
Control system |
Spraying, baking, time setting, lighting switch, thermostat, power supply switch, emergency stop, all motors are normal start. |
|
Total Power |
38KW |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
