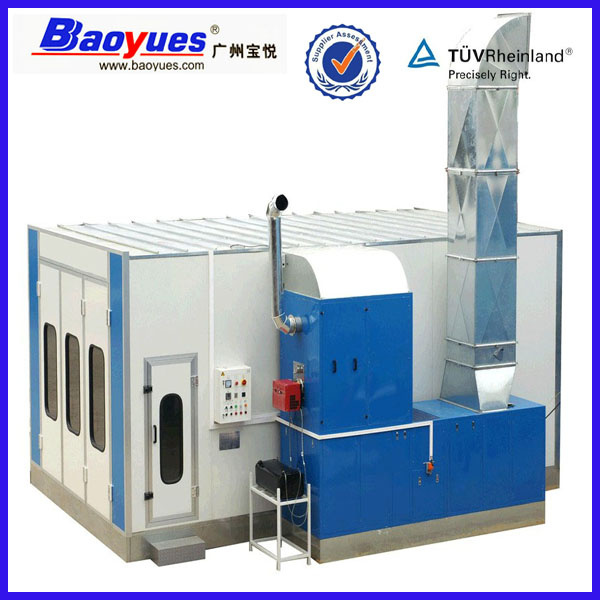

Best Quality! ! ! Bus Spray Booth
| Price: |
US $ 9000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
BY-X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Spray Painting Booth |
| Usage: |
for Car(or Furniture) Painting,Baking |
| Specifications: |
Customise Acceptable |
| Certificate: |
CE,CCS,TUV,SGS |
| Service: |
Professional Team for Installation Abroad |
| Warranty: |
1 Year |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Certification: |
UL |
| Condition: |
New |
Product Description
Bus spray booth:
1. For bus or truck spary baking.
2. CE, CCS, TUV, SGS certificate
3. Low noise, no pollution
4. Powerfrugal system
5.1 year warranty
6. Professional team for installation abroad
Bus spray boothbus spray boothbus spray booth
The details:
The inside dimension and outside dimension can be design as your requirement. Baoyue offter the warranty about 1 year, with professional technical and best service in this line.
Certificates:
Bus spray boothbus spray boothbus spray booth
Introduction of Baoyues:
Paint boothPaint boothPaint boothPaint booth
Guangzhou Baoyue Electromechanical Equipment Co., Ltd, which specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, has sucessfully exported our products to Europe, Africa, America ect. And get a positive feedback. We own the factory in Guangzhou of China, all the customer are welcomed to visit our factory. The competitive price and high quality of our products can be very helpful to your business.
Guangzhou Baoyues, the leader manufacturer of spray booth in China! ! !
|
Outside dimension |
15000×5000×5000mm(L×W×H) |
|
Inside dimension |
15144×6896×5600mm(L×W×H) |
|
pit |
Without basement; Exhaust air from 2 rows of pit in the ground; dimension of each pit is 13000*840mm(L*W) |
|
Main door |
4-fold,4000×4500(W×H; white color or optional |
|
Personal door |
2 units,700×2000(W×H);inside is polystyrene.white color or optional |
|
Wall panel |
4 units supporting steels and 4units profiled bars in the roof to strengthen the room body. EPS insulation wall panels:70mm thick.1150mm wide. tongue and groove interlockingconstruction,thickness:70MM EPS.width:1150mm.0.476mm,white color |
|
Lighting |
Inclined ceiling lights:4pcs×26units=104Pcs×36W,side lights: 4pcs×18units=72pcs×36W, Philip tube with electronic ballasts; verticalset(left side 2 units, right side 8 units; rear side have 2 units.).illuminance:450Lux |
|
Generator setting type |
Sideupper intake air; and exhaust air from back upper.Quadrate steel frame;outside is white power coated steel; inside is galvanized steel.with 30mm rock wool insulation inside. |
|
Intake and exhaust air system 3sets |
4pcs 7.5KW double-intake centrifugal fans for intake air;model:YDW:5.6M.air capacity:20000m³/h. |
|
2pcs11KW double-intake centrifugal fans for exhaust air,model:TAE-710H,belt-drive,air capacity:36000m³/h. |
|
Heating system 2set |
2setsRIELLO RG5s diesel burner,Maximum heat productivity:520000Kcal/h,2sets Stainless steel heat exchanger,highest working temperature 80°C, 2pcselectricdamper from spraying to baking cycle. |
|
Filtering system |
Pre-filter.High efficiency filter(ceiling filter)floor filter(fiber glass)M-shape activated carbon filter, exhaust fiberglass replace by level side |
|
Roof panel |
Galvanized steel |
|
Control system |
Spraying,risen-temperature spraying, baking; baking temperature, time setting, lighting switch, emergency stop, failure-alarm.Limited temperature device.Timeaccumulator.Temperature regulator |
|
Power supply |
As request |
Highest working temperature |
80°C |
|
illuminance |
450Lux |
Free air speed |
>=0.25m/s |
|
Total power |
57.5kw |
|
color |
White, blue, orange for your option |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
