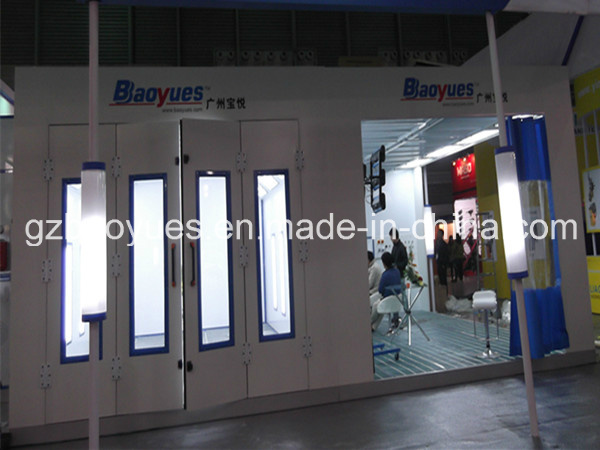

Beautiful Design Show Auto Prep Station and Auto Paint Oven
| Price: |
US $ 5995-10900set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
BY-5, BY-3O |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Baoyues |
| Color: |
White |
| Voltage: |
220V,380V,50Hz/60Hz |
| Purification: |
≥95% |
| Noise Db (a): |
≤70 |
| Certificate: |
CE,CCS |
| Air Capacity: |
25000m3/H |
| Safety: |
with Pressure Emergency Door |
| Free Air Speed: |
≥0.3m/S |
| Wararanty: |
1years |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Certification: |
CSA |
| Condition: |
New |
| Type: |
Auto Paint Oven |
| Brand: |
Baoyue |
Product Description
Description
A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.
Our service
1. Professional vehicle equipment supplier.
2. Continuous development of new products.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system & good reputation in the market.
Company: Professional manufacturer and competitive factory price, we can control of the production cycle and product quality very good
Our products had sold to Australia, Germany, Nigeria, Philippine, Romania, Singapore, Russian Federation, Kingdom of Saudi Arabia, The United Arab Emirates, etc...
Other trading conditions and terms, please find below:
A: Payment term: T/T 50% in advance after order confirmed, 50% in balance before shipment.
B: Delivery time: To effect shipment within 15 days after receipt of deposit.
C: Warranty time: 1 years. During the warranty time, any time, any problem caused by products' quality, BAOYUE has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier. Enclosed please kindly find the BAOYUE guarantee & after-sales services clause.
|
Item |
Detailed Specification |
|
Inside dimension |
6900×3900×2750 mm(L×W×H) |
|
Outside dimension |
7000×5700×3500 mm(L×W×H) |
|
Front door |
Folding door, 3 folds, 3000×2700 mm (W×H), without frame, colour: white, tempered glass window with galvanized steel frame |
|
Emergency door |
1 unit, 800×2000mm (W×H), colour: white, tempered glass window with galvanized steel frame. |
|
Basement |
Galvanized steel assemble, 300mm high, quadrate steel support, with adjustable bolt, full grilles made by flat bar 30×4 & 10×4, hot galvanized, 2 ramps, 750×2000mm |
|
Wall panel |
Thickness: 50mm, width: 1150mm, tongue and groove structure, 0.426mm colour steel with EPS insulation inside, colour: white. |
|
Light |
Ceiling Lights: 8Units×4Pcs=32Pcs×36W, side light: 8Units×4Pcs=32Pcs×36W, with electronic ballasts. |
|
Generator cabinet |
Intake from side upper, exhaust from back upper, aluminium alloy frame; machine-made panel covered, filled with heat preservation material in the middle. |
|
Intake and Exhaust system |
Inlet: 2×4KW centrifugal fan, motor outside, belt drive, Model: TAE-400H, air capacity for each fan: 12500m 3 /h |
|
Outlet: 1×7.5KW centrifugal fan, motor outside, belt drive, Model: TAE-560H, air capacity for each fan: 23000m 3 /h, with manual damper |
|
Heating system |
RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 260000kcal/h, maximum temperature: 80 degree |
|
Purification system |
Pre-filter, ceiling filter, fibreglass filter, activated carbon filter. |
|
Roof |
Galvanized steel. |
|
Control system |
Spraying, heat spraying, baking, time setting, lighting switch, thermostat, failure indicator, power supply switch, emergency stop. |
|
Total power |
18KW |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
