Basement Scissor Car Lift for Car Easy Parking
Price: |
US $ 5500-6200/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union |
Basement Scissor Car Lift for Car Easy ParkingThe scissor car lift has been designed and constructed for lifting vehicles. The scissor lift is suitable for lifting motor vehicles having a maximum total weight listed in the technical specifications and placarded on the lift itself, according to the specific model.scissor hydraulic car parking system can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.Main Features:> Operation is easy, and the lifts run very smoothly and steady!
> The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car.
> The limit switch system ensure the lift to stop at accurate position.
> Hydraulic system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
> Control system adopt elevator control system,very convenient and safety.
> Emergency button is available on each control box, when emergency occurs, the immediate stop can be realized.
> Emergency Descending:When there is no power or malfunctions, manually descend the device
> Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design a suitable lift for you soon.Load capacity: 5000kg
Platform size: 5.5*2.5m
Lifting height: 3500mm
Hydraulic drive systemDescriptions:1) Scissor hydraulic car parking system can be used to lift cars with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor. Operation is easy, and the lifts run very smoothly. There are also explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The limit switch system helps the lift to stop at accurate position.
3)The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure safety of car.
4) Emergency button is available on each control box, when emergency occurs, the immediate STOP can be realized.
5) Control system adopt elevator control system, very convenient and safety.
6) Custom-made products are done according to detailed request, please tell us load capacity, lift height, and platform size you need, our engineer will design a suitable lift for you soon.Parameters: Model | SJG5-6 |
Lifting capacity | 5000kg |
Lifting height | 6000mm |
Size of platform | 5500 X 2500 mms.
( Diamond steel sheet metal )
|
Motor power | 5.5kw |
Power supply | AC 220V/380V 50HZ/60HZ |
Speed | 100mm/s |
Weight | 2950KG |

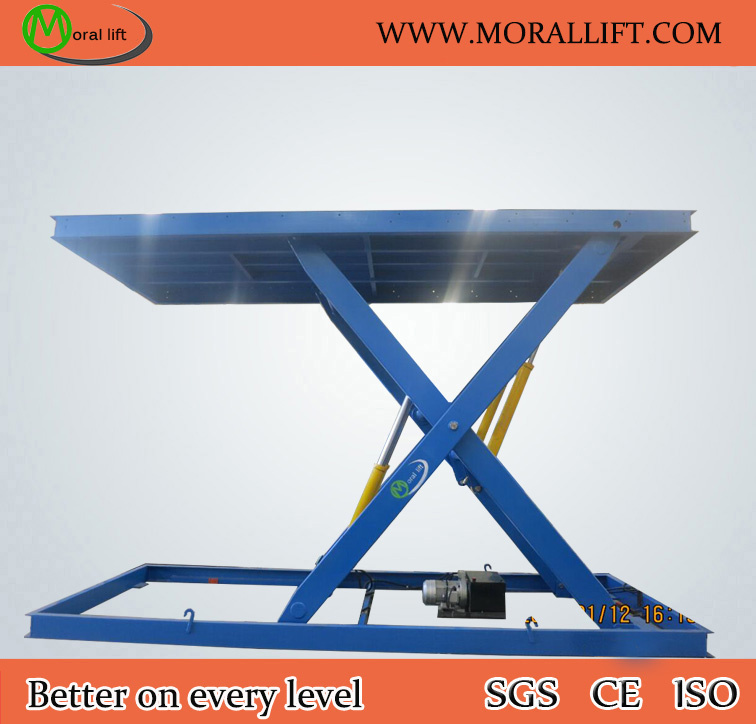

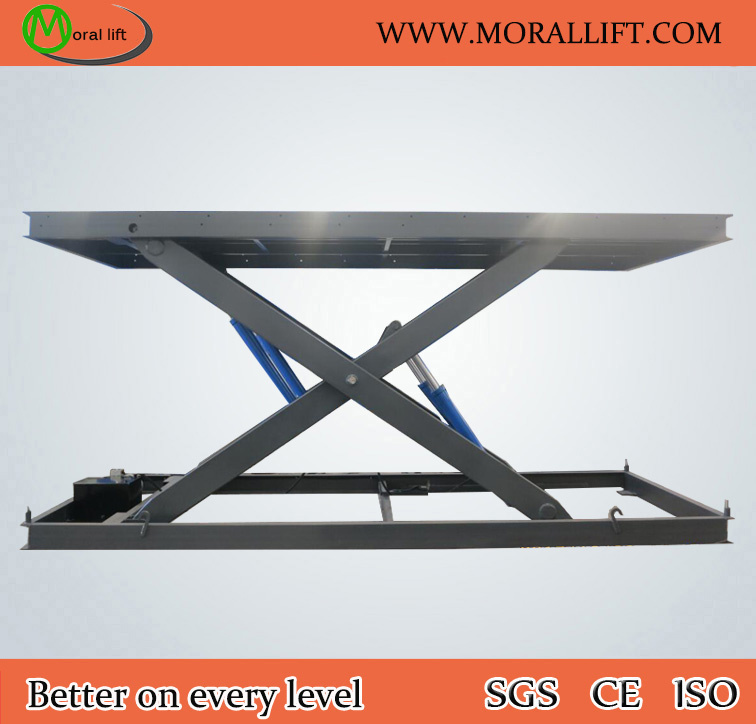

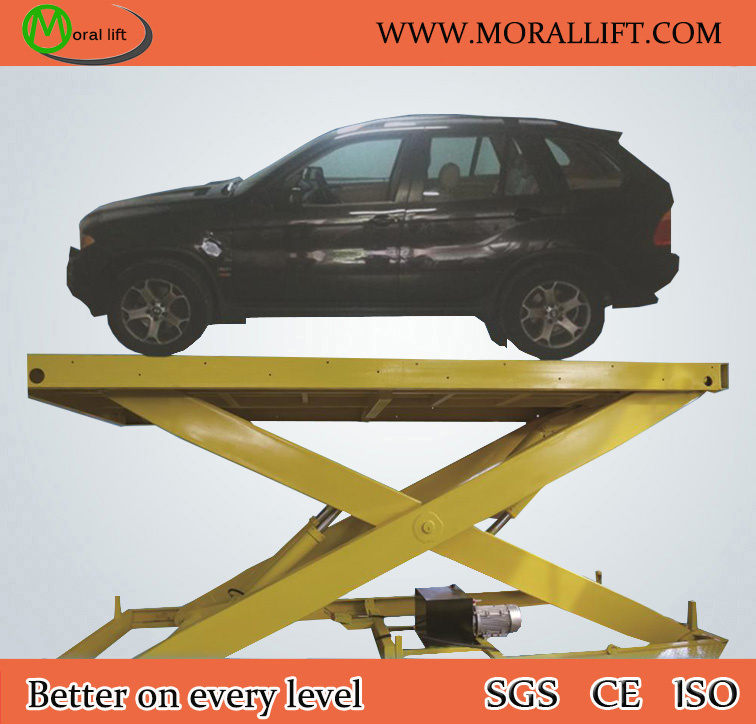

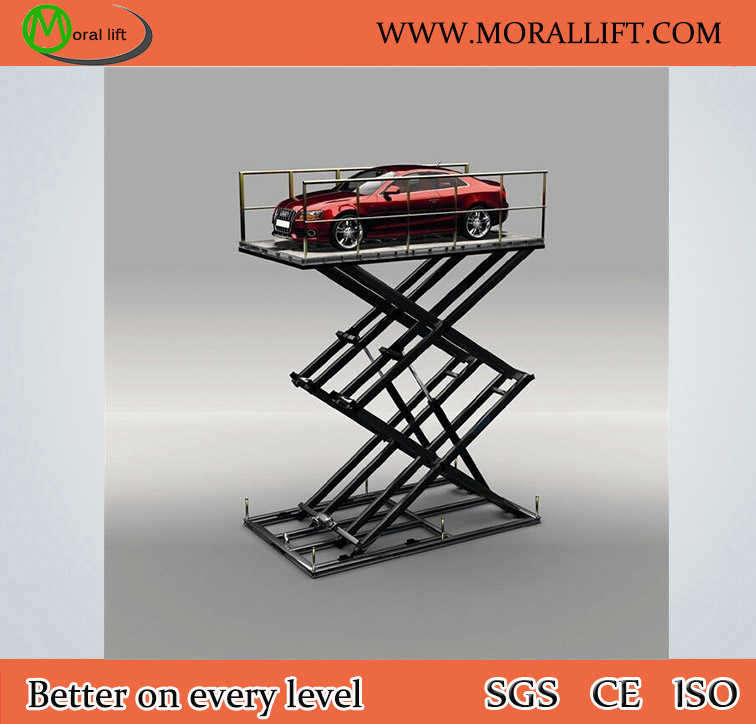

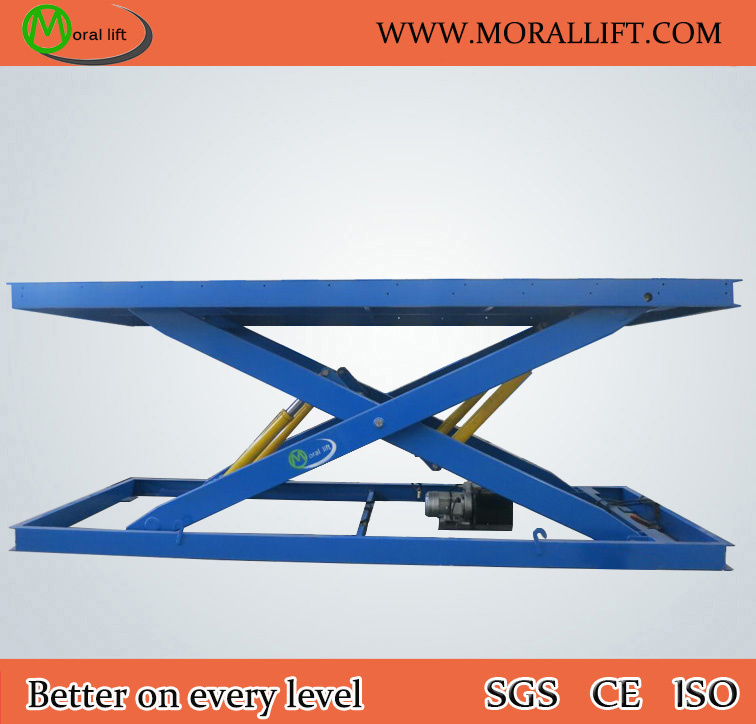

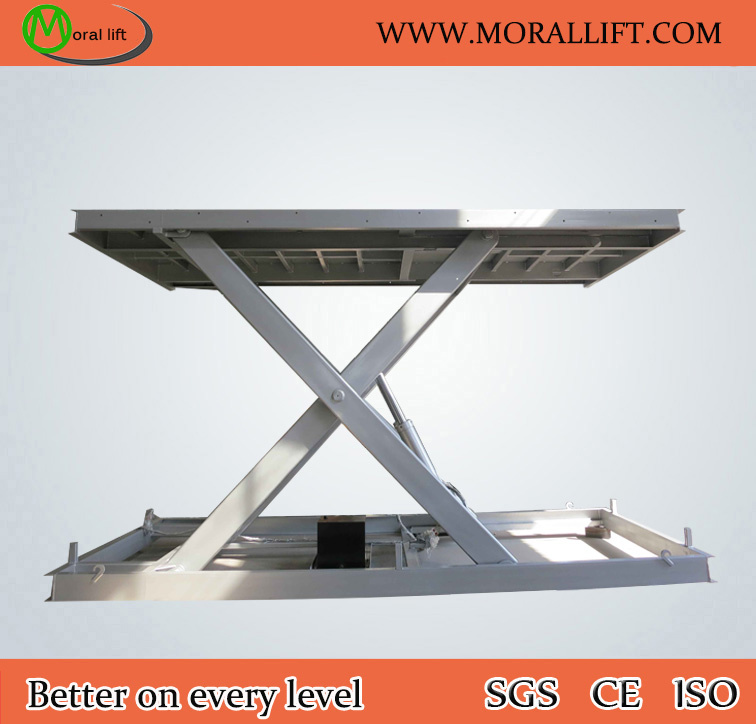

Pictures:
Prod Model: |
SJG |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Load Capacity: |
5000kg |
Platform Size: |
5500*2500mm or Customized |
Lifting Height: |
3000mm or Customized |
Speed: |
5--6m/Min |
Power: |
7.5kw |
Materials: |
Mn Steel |
Working Condition: |
Inddor or Outdoor |
Driving Mechanism: |
Hydraulic |
Control: |
Button/Remote control |
Warranty: |
12 Months |
Type: |
Double Cylinder Hydraulic Lift |
Lifting Capacity: |
≥5T |
Certification: |
CE |
Design: |
Scissor |
Brand: |
Moral |
