Automotive Spray Booth Paint Booth with Ce
Price: |
US $ 5000-19800/Piece |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union,Paypal |
Detailed SpecificationsItem | Detailed specification |
Inside dimension | 6900×3900×2700 mm(L×W×H) |
Outside dimension | 7000×5350×3400 mm(L×W×H) |
Front door | Folding door, 3 folds, 3000×2600mm,(WxH), metal sheet, color : blue, red, white, orange |
Emergency door | 1 unit, 750×1800mm(W×H), color: white |
Basement | Galvanized steel assemble, 300mm high, quadrate steel support, 3 rows grilles made by flat bar and twisted steel, galvanized, 2 rows diamond plate , galvanized; 3ramps, 900×2000mm/pc. |
Wall panel | Thickness: 50mm, width:950mm, tongue and groove structure, 0.5mm color steel with EPS inside, color: white. |
Light | Ceiling Lights: 8Units×4Pcs=32Pcs×16W, Side Lights: 8Units×2Pcs=16Pcs×16W, LED lights. The lighting boxes open outside, and with powder coating. illumination≥1200Lux |
Generator cabinet | Intake from back upper, exhaust from back upper, white coated steel outside covered, galvanized steel inside, filled with heat preservation material inside. |
Intake and Exhaust system | Inlet: 2×4KW centrifugal fan, air capacity: 25000m3/h. |
Outlet: 1×5.5KW centrifugal fan, power: 5.5KW, air capacity: 20000m3/h. |
Heating system | RIELLO G20diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 200000Kcal/h. |
Spray to baking switch | Auto Pneumatic damper |
Chimney ducting | 304 Stainless ducting and one safe fireproof chimney elbow. |
Purification system | Pre-filter, ceiling filter, fiberglass filter, activated carbon filter |
Roof | Galvanized steel |
Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, emergency stop, hour meter, temperature limit controller. |
Total power | 16 KW |
Pictures

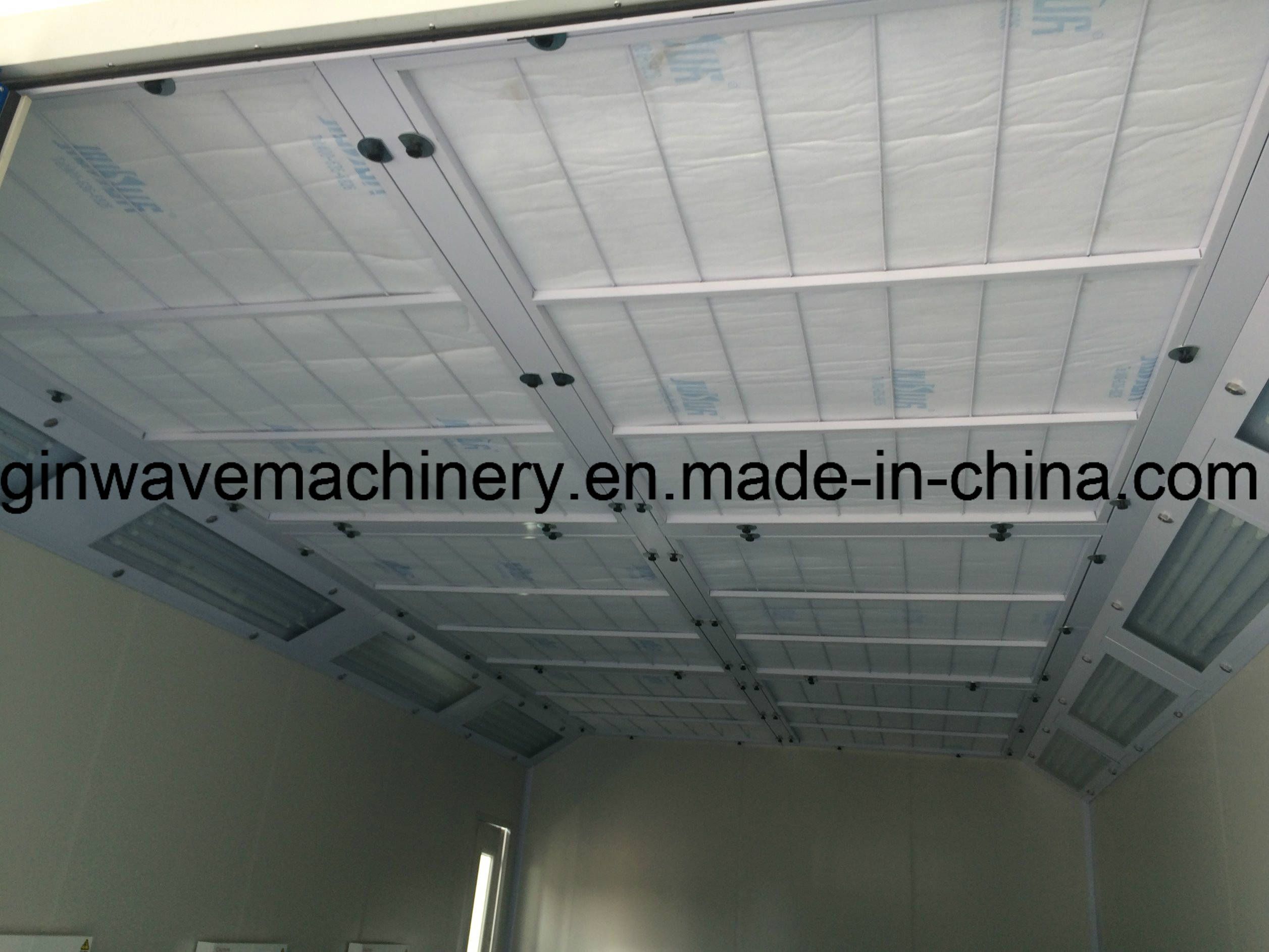

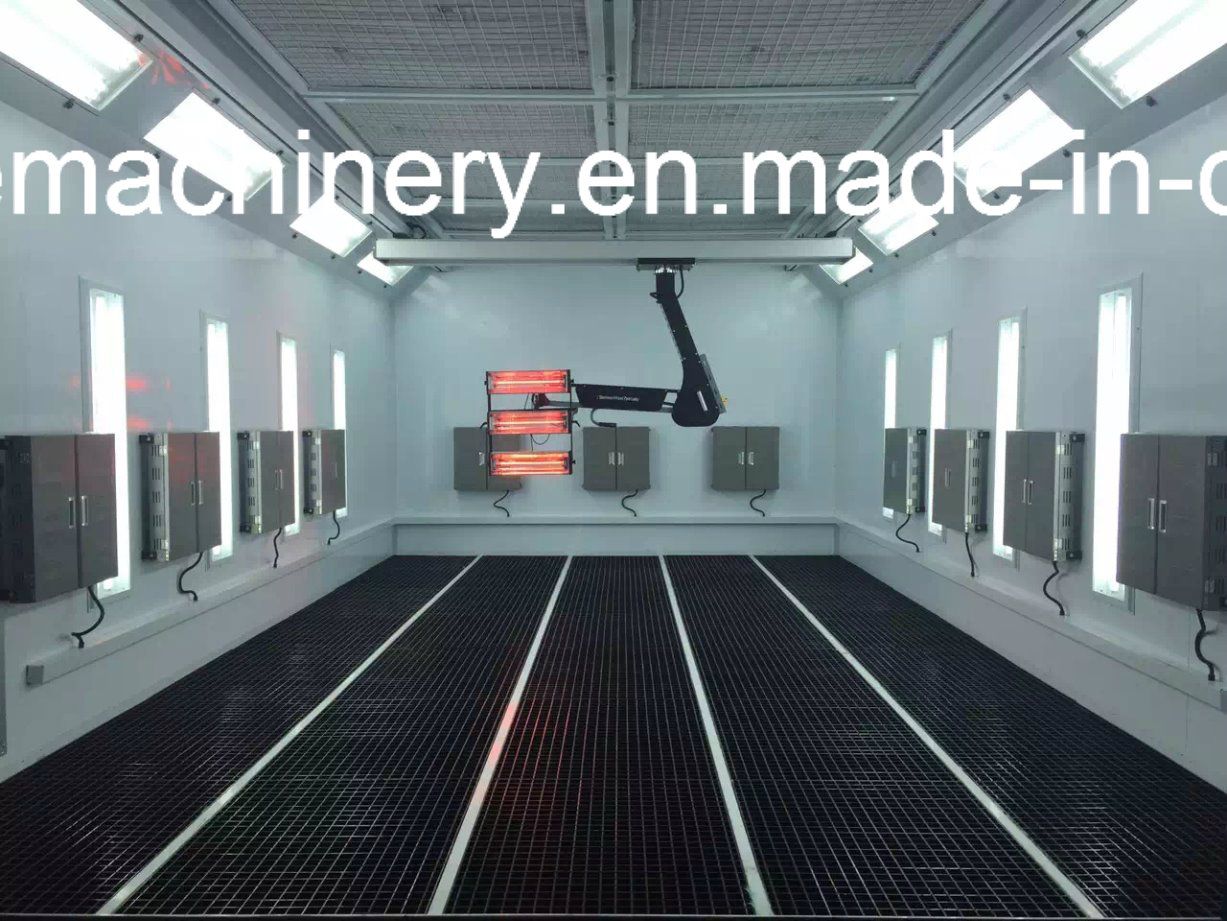

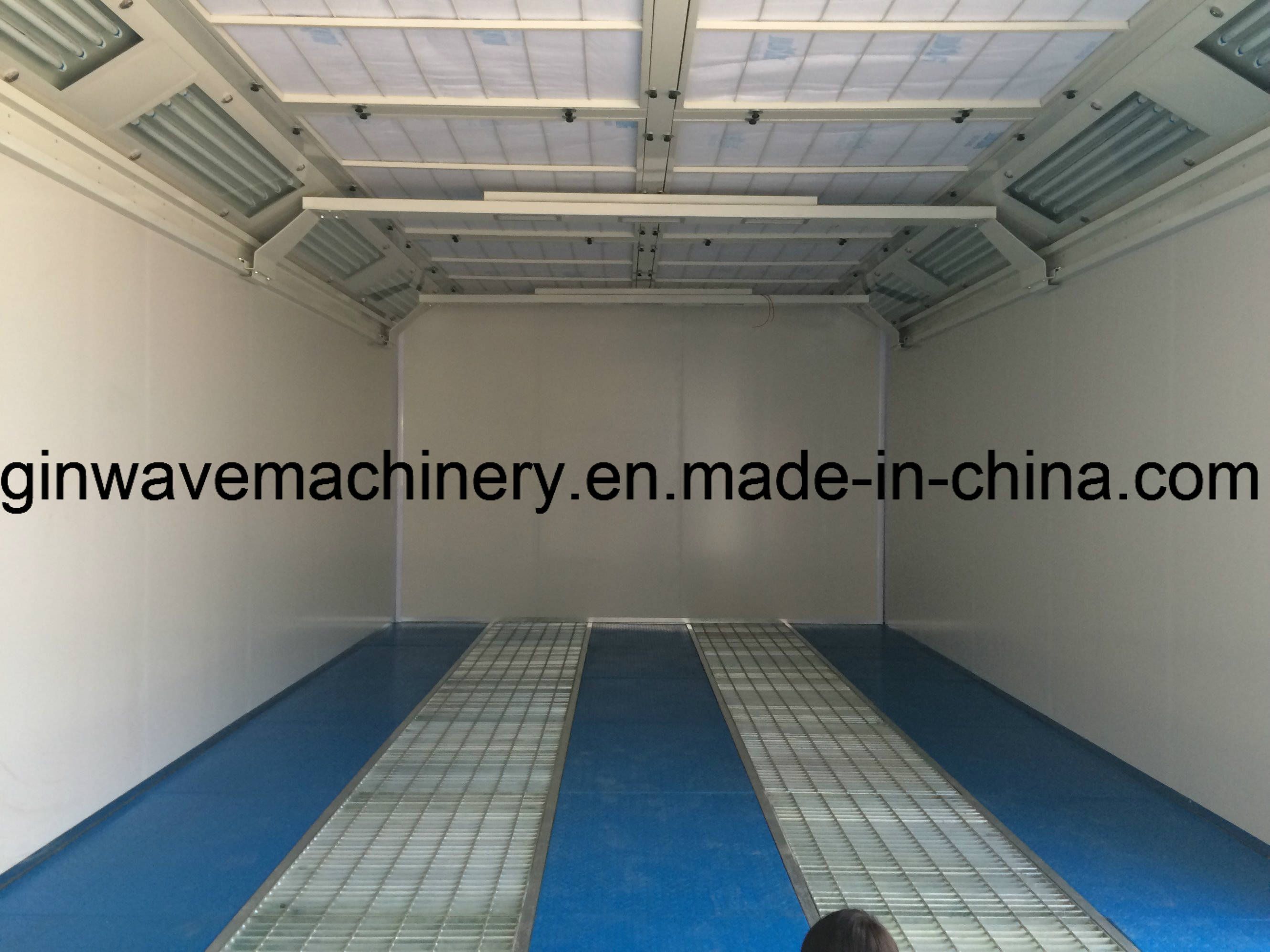

inside viewCeiling

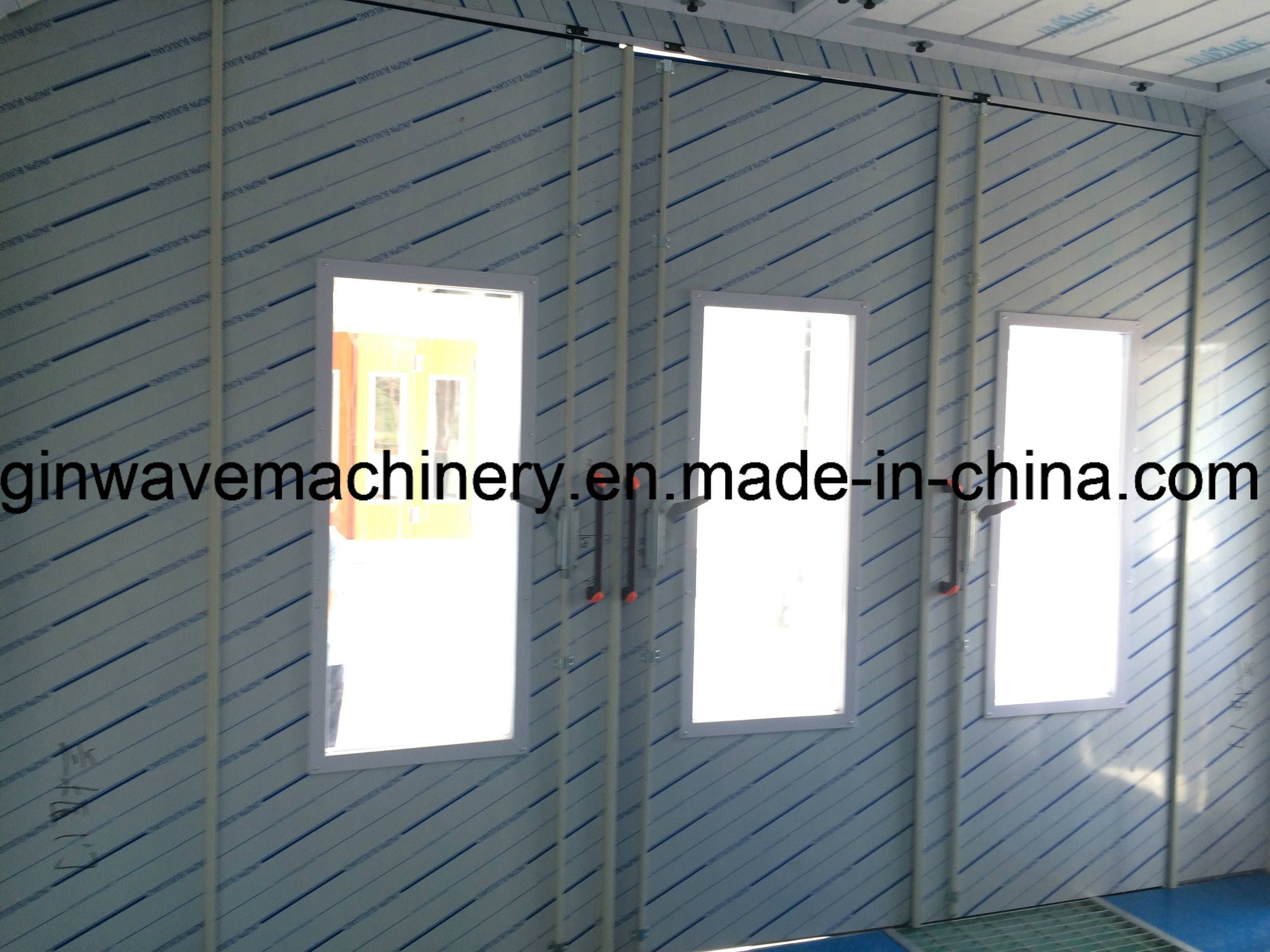

Main Door Inside View

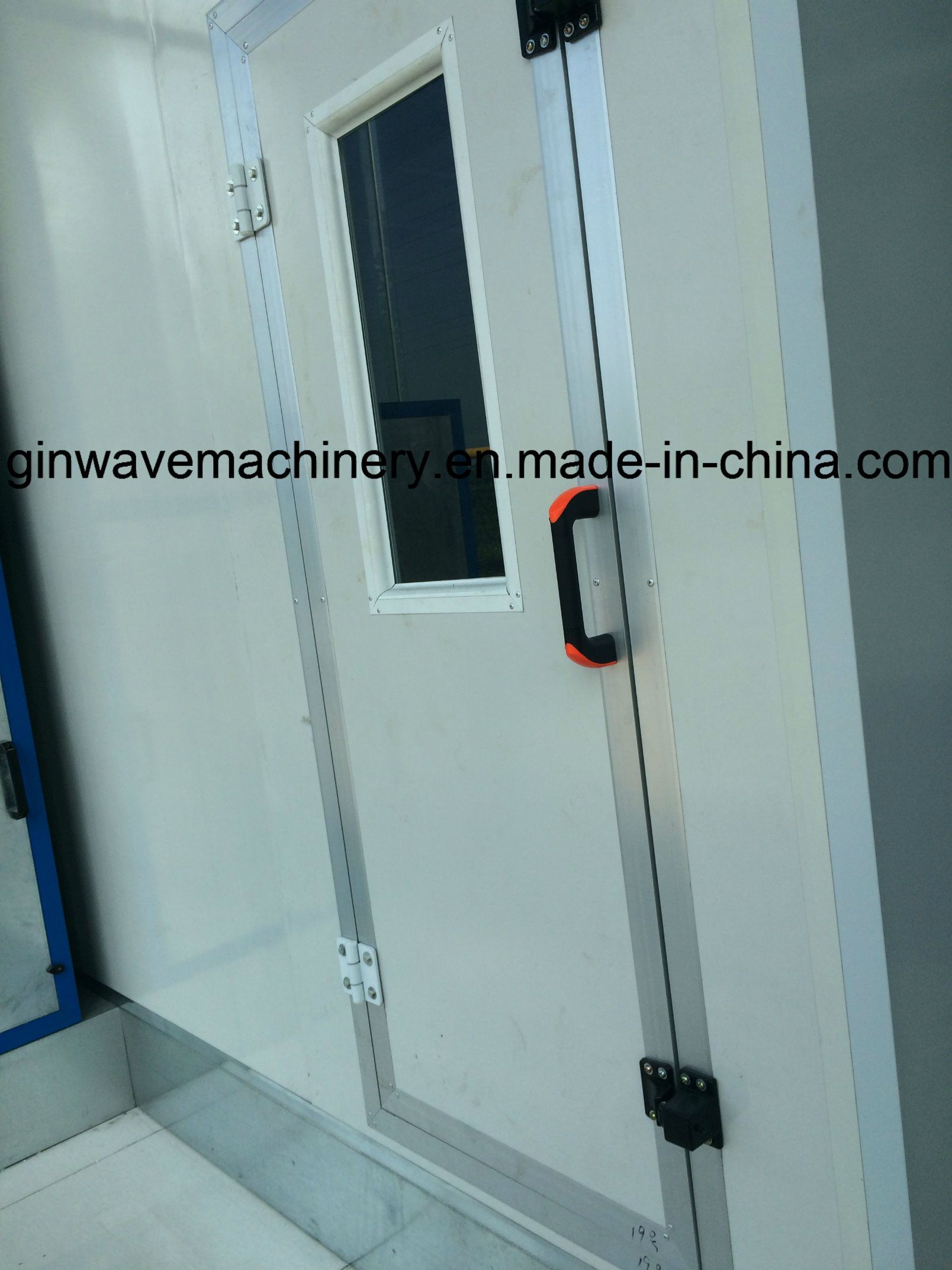

Service Door

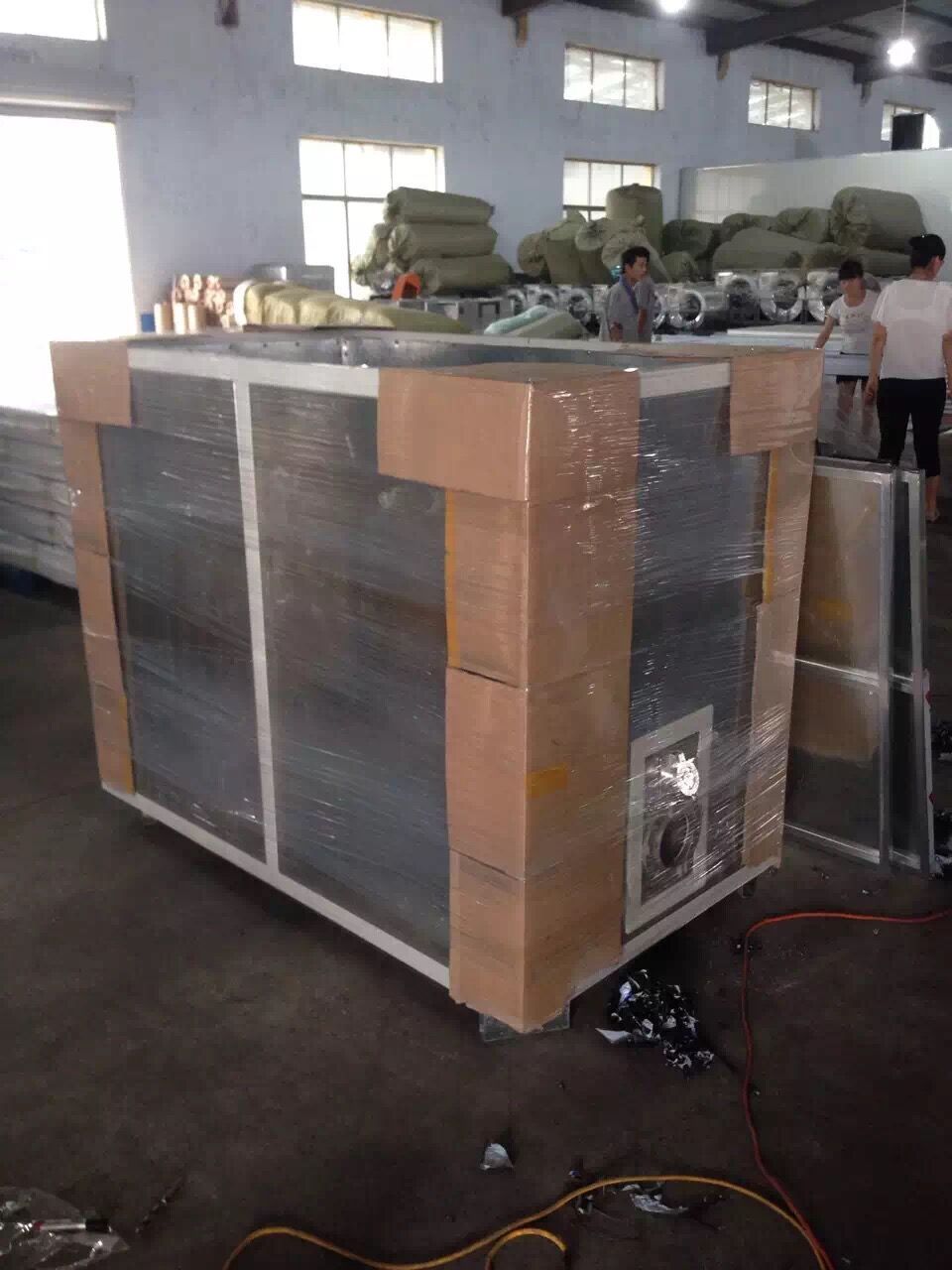

package and loading
We supply 2 years warranty!
Professional team from design to installation! Warmly welcome to visit our factory!
Prod Model: |
GW-ST20 |
Inside Dimension: |
6900X3900X2700mm |
Outside Dimension: |
7000X5350X3400mm |
Main Door: |
3000X2600mm, 3 Folds Metal Sheet |
Emergency Door: |
750X2000mm with Pressure Lock |
Basement: |
300mm High, 3 Rows Diamond Plate 2 Rows Grids |
Inlet Fan: |
2 Sets 4kw Centrifugal Fan |
Exhausting Fan: |
1 Set 5.5kw Centrifugal Fan |
Heating Method: |
Diesel, Gas, Electricity |
Lighting: |
Famous Brand LED Lights |
Wall Panel: |
50mm EPS with Double Sides 0.5mm Color Steel |
Certification: |
CE |
Airflow Direction: |
Fully Undershot-type |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Substrate: |
Sandwich Panel |
Brand: |
Ginwave Forest |
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
We are a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. We developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, we established Qingdao Commercial Center, responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
We have professional designed team, who can give you the most suitable project according to your need. And our production manager studied in Japan for 3 years. He control all the parts to make the quality good and QC team will check again before delivery.
We have exported to more than 20 countries in the world, and have distributors in Europe, Australia and Asia. Good quality and reasonable price will gain more buyers.
We supply different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
We are a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. We developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, we established Qingdao Commercial Center, responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.
We have professional designed team, who can give you the most suitable project according to your need. And our production manager studied in Japan for 3 years. He control all the parts to make the quality good and QC team will check again before delivery.
We have exported to more than 20 countries in the world, and have distributors in Europe, Australia and Asia. Good quality and reasonable price will gain more buyers.
We supply 3 years warranty, good after sale service will let you have insurance for using our product.
