Automotive Power Steering Hoses for Fluid Pipelines

Name: Automotive Power Steering Hoses for Fluid Pipelines
Brand: ibuyautoparts.com
SKU: 731951462
Availability: InStock
Rating: 4.4 (28 reviews)

Price:	US $ 1.98/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product introduction

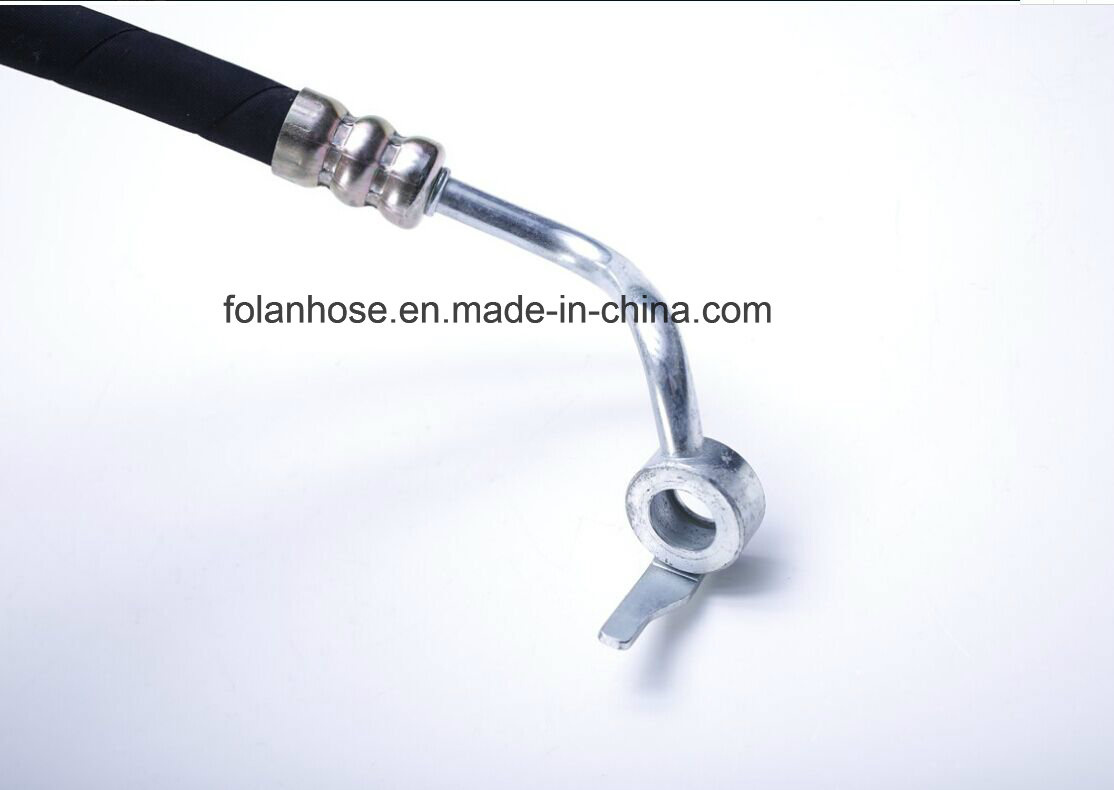

Power steering hose is applied in automotive steering system, to connect steering oiler, steering, steering pump and other major components. By conveying power steering oil in different pressures to control the steering,thus to increase the steering force from steering wheel.

ID mm	First layer	Second layer	Third layer	Fourth layer	Fifth layer	Low temperature ºC	High temperatureºC (long time)	High temperature ºC (short time)	Note
8~16	ACM	AR line	ACM	--	--	-40	160	175	medium pressure side
8~16	AEM	AR line	AEM	--	--	-40	160	175	medium pressure side
8~16	CSM	AR line	CSM	--	--	-35	100	130	medium and low pressure side
8~16	CSM	PA line	NBR	PA line	CSM	-35	100	130	high pressure side
8~16	NBR	AR line	CR	--	--	-40	100	125	high pressure side
8~16	NBR	PA line	NBR	PA line	CR	-35	100	125

Material:NBR+PVC/CSM
Application: Fuel tank filler hose
Technologic Index:Fuel Permeability Resistance 200g/m2/day
Ozone Resistancce,80pphm×72h, no crack

Trade Terms
Date of Delivery:Based on order quantity
Minimum Quantity:100 m
Packaging:Cartons
Payment:Irrevocable L/C
Port of Loading:Tianjin OR QINGDAO

Prod Model:	GLPS002
Fuel:	Gasoline
Body Material:	Alloy
Certification:	RoHS
Stroke:	4 Stroke
Cylinder:	Multi-cylinder

Qingdao Folan Trade Co., Ltd was found in 2016. Since 2008, our factory are exported and supplied in the fitting of engine Parts. We have two foundries and 20-30 fully automatic CNC machining centers in order to meet our customer's production capacity.

Such as automotive coolant/fuel hose assembly, automotive air-condition hose assembly, automotive power steering hose assembly, automotive turbo charger hose assembly, automotive sunroof drain hose and automotive molding press hose assembly and other series over 2000 kinds of specifications. Its main customers are: FAW Volkswagen, DFCV, SAIC Volkswagen, Nissan(China), JAC group, Volkswagen AG, Italy FIAT, etc., integrated product market share up to 30%.
