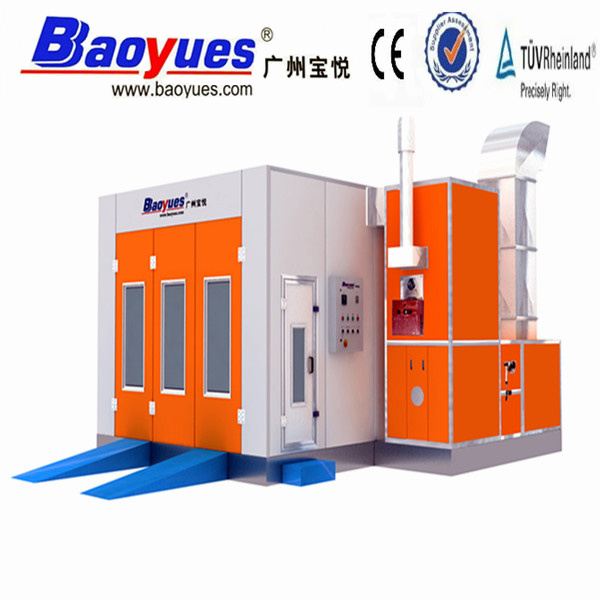

Automotive Paint Spray Booth, Car Paint Oven
| Price: |
US $ 6000-8000set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
BY-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Types: |
Car Paint Oven |
| Color: |
Orange |
| Voltage: |
1X220V,3X380V,50Hz |
| Purification: |
≥95% |
| Noise Db (a): |
≤70 |
| Air Capacity: |
25000m3/H |
| Free Air Speed: |
≥0.24m/S |
| Frequency Of Air Change: |
294 Time /H |
| Safety: |
with Pressure Emergency Door |
| Max Heating Productivity: |
200000kcal/H |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Certification: |
CSA |
| Condition: |
New |
| Type: |
Car Paint Oven |
| Brand: |
Baoyue |
Product Description
Description
A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.
Spray booth conveying and storage
As spray booth are in big size, they're conveyed in bulk while loading and unloading. The parts in frame should be loaded and unloaded by fork vehicles while the small parts are conveyed by manpower. The finished parts of spray booth are usually stored in the finished products warehouse, and marked on the outside packages for checking before delivery. After being sent to the destination, all the parts should not be put in the open air but in store house to prevent from rusting and oxidized by the moisture.
Our service
1. Professional vehicle equipment supplier.
2. Continuous development of new products.
3. Good Service: We treat clients as friends.
4. Good Quality: We have strict quality control system & good reputation in the market.
Company: Professional manufacturer and competitive factory price, we can control of the production cycle and product quality very good
Our products had sold to Australia, Germany, Nigeria, Philippine, Romania, Singapore, Russian Federation, Kingdom of Saudi Arabia, The United Arab Emirates, etc...
Other trading conditions and terms, please find below:
A: Payment term: T/T 50% in advance after order confirmed, 50% in balance before shipment.
B: Delivery time: To effect shipment within 15 days after receipt of deposit.
C: Warranty time: 1 years. During the warranty time, any time, any problem caused by products' quality, BAOYUE has responsibility to offer free spare parts to customers freely and bear the delivery cost for DHL or TNT Carrier. Enclosed please kindly find the BAOYUE guarantee & after-sales services clause.
|
Item |
Detailed Specification |
|
Inside dimension |
6900×3900×2650 mm (L×W×H) |
|
Outside dimension |
7000×5350×3400mm (L×W×H) |
|
Front door |
Folding door, 3 folds, 3000×2600 mm (W×H), without frame, aluminium alloy window frame,
orange colour, door head and two batten on both sides white colour |
|
Emergency door |
1 units, 650×1800mm (W×H), colour: white. |
|
Basement |
Galvanized steel assemble, 300mm high, quadrate steel support, 2 rows grilles made by flat bar and twisted steel, galvanized, 3 rows indented plate, silver colour, 2 ramps, 750×2000mm/pc,
silver colour. |
|
Wall panel |
Thickness: 50mm, width:1150mm, tongue and groove structure, 0.376mm colour steel with EPS
inside, colour: white. |
|
Light |
Ceiling Lights: 8Units×4Pcs=32Pcs×36W, side lights: 8Units×2Pcs=16Pcs×18W, with electronic
ballasts, lighting boxes are powered coated, illumination ≥1000LUX |
|
Generator cabinet |
Intake from back upper, exhaust from rear upper, galvanized steel frame; orange machine-made
panel covered, filled with heat preservation material inside. |
Intake and Exhaust
system
|
Inlet:1×7.5KW turbo fan, air capacity for each fan: 25000m3/h. |
Outlet: 1×7.5KW turbo fan, air capacity for each fan: 25000m3/h. Manual damper, 4m ducts, 1
pcs 900 bend, 1 pcs 300 bend. |
|
Heating system |
Italy RIELLO G20 diesel burner, stainless steel heat exchanger, pneumatic damper actuates from
spraying to baking cycle. Max. heating productivity: 200000kcal/h, max temperature: 80°C, 4pcs
chimney, 1 pcs bend. |
|
Purification system |
Pre-filter, ceiling filter, fibreglass filter, activated carbon filter. |
|
Roof |
Galvanized steel |
|
Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power
supply switch, emergency stop, all motors is normal start. |
|
Total power |
17.5KW (Power supply 1×220V, 3×380V, 50HZ) |
