| Prod Model: |
FQZ-2A |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Certification: |
ISO |
| Update Method: |
by Email |
Product Description

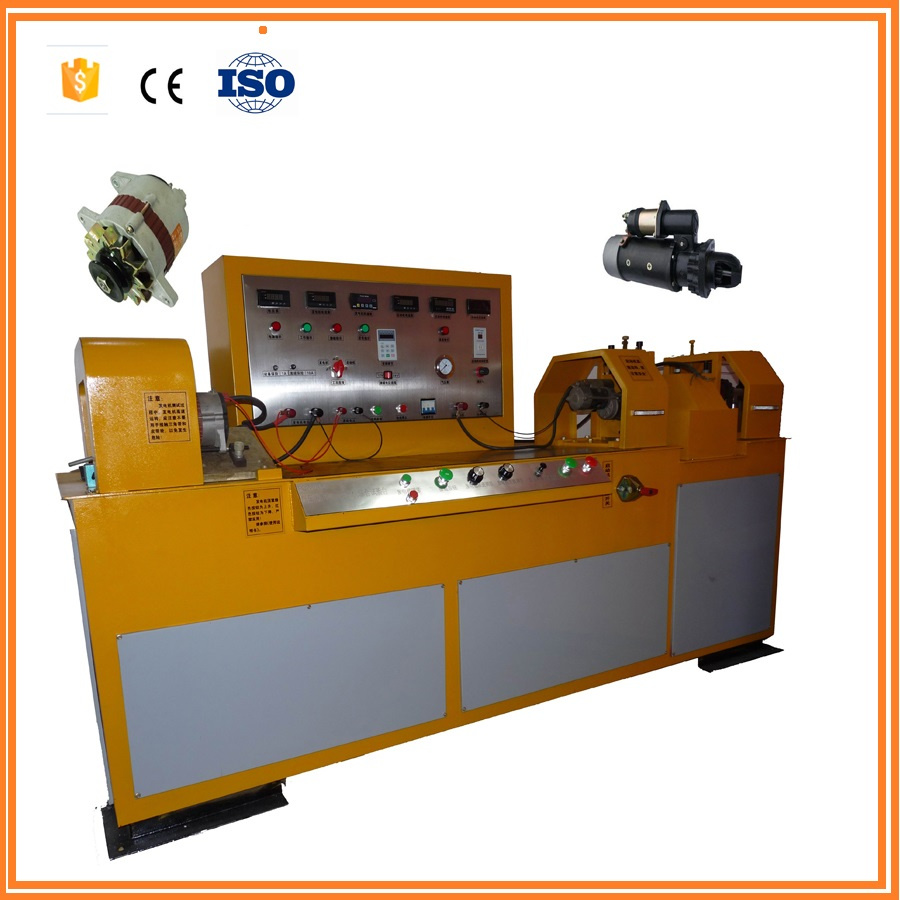

FQZ-2A Model Integration Test Bench of Automobile Generator (Alternator) & Starter
Test Bench, Generator Test Bench, Starter Test Bench, Automobile Test Bench, Alternator test bench
1. Function Introduction
This test bench using variable frequency speed regulation and digital display is special electrical equipment used for testing large power automobile generator and starter and possesses high control sensitivity and strong controllability. Display instrument uses digital display mode, reads data directly and is electronic load module type, domestic first. This test bench is especially applicable for testing large vehicles generator and starter used for Bus Company and oil field etc. It is also matched with computer to process data, display on the computer, store & print test results and wave form curve and achieve dynamic test of various models generators and starters.
2. Technical Parameter
Input working voltage 380V AC50Hz three-phase four-wireDC12V24V or 48V
Motor power7.5KW Frequency converter power7.5KWthree-phase AC
Speed adjustable range of generator no load 0-12000r/min load 0-10000r/min
Load mode Electronic module type DA (0~200A)
Working current of starter0-2000A
Torque of starter0~200 N.
Air pressure setting 01MPa (random adjustment)
3. Applicable Scope
Generator and starter of various large load carrying vehicles, passenger car and bus;
Maximum test power of generator: 5.5KW
Maximum test power of starter: 15KW
| Model no | FQZ-2A |
| Color | yellow |
| Voltage | 380V 50 Hz 3P (other voltage acceptable) |
| Motor power | 7.5KW |
| Frequency converter power | 7.5KW |
| Alternator testing: | |
| Maximum power | 7.5KW |
| Maximum current | 200A |
| Maximum voltage | 80V |
| Excitation voltage | 12V/24V |
| Speed range | No load:0-1000Rpmad; Load:0-6000Rpm |
| Load mode | Electronic module (advance) |
| Motor drive style | Belt connect |
| Clamp style | Mounting clamp, fasten or loosen with button control, easy to mount or remove |
| Starter testing: | |
| Maximum Power | 15KW |
| Maximum current | 2000A |
| Maximum torque | 200M.M |
| Test solenoid excitation voltage | 12V/24V |
| Need external battery | 12V/24V/48V |
| | |
| | |
