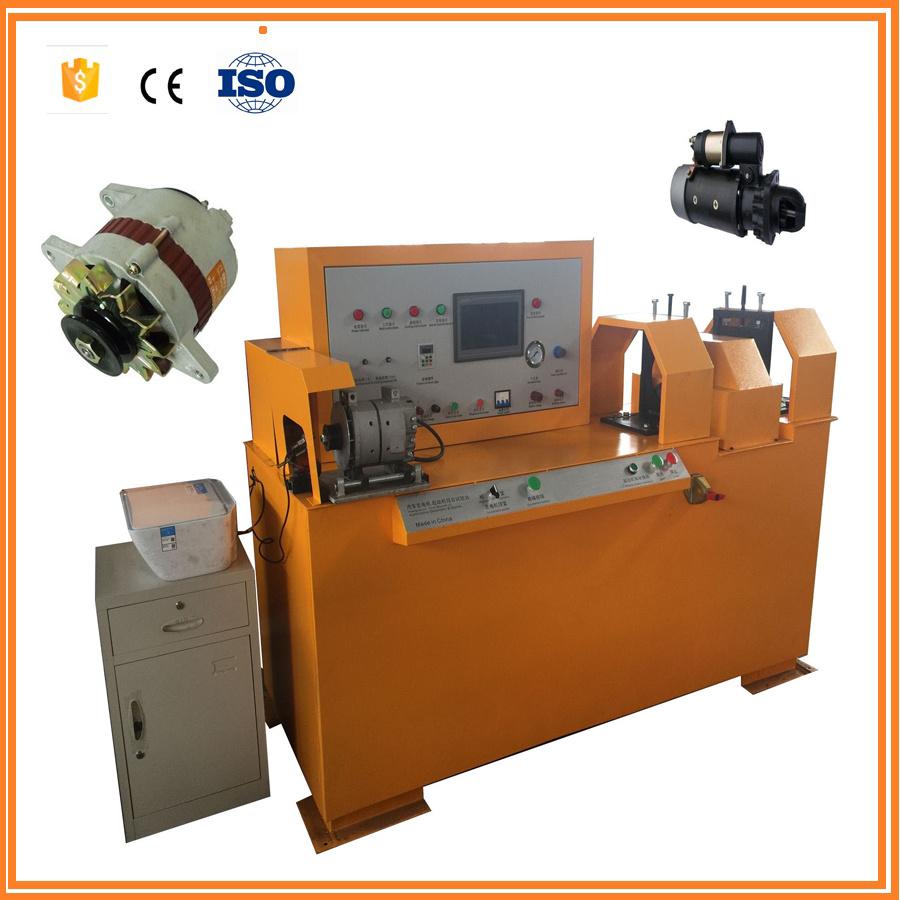

General introduction:
a. It can be used to test Alternators and Starters of various vehicles (Car, Truck, Bus, Tractor, Excavator, etc);
b. Test Alternator (Generator): 5.5KW, 0-200A, 12V or 24V,6000RPM
Test item: Speed, Voltage, Current (Load or no-load)
c. Test Starter: 15KW, 0-2000A, 0-200N.M, 12V or 24V or 48V
Test item: Torque, Voltage, Current (Load or no-load)
Advantages:
a. It uses variable frequency speed regulation
b. It displays result by digital instrument, the test result is accurate and can be read directly.
c. It is easy to learn and operate.
d. It is with fuse protection.
e. It is with indicator lamp following each step and warn you the problems.
f. It does not need battery to test alternator, it can excite voltage itself.
g. It needs external battery to test starter.
h. High quality speed sensor.
i. It possesses high control sensitivity and strong controllability.
j. It can be matched with PLC computer to operate, display, save & print test results and curves.
| Model no | FQZ-2AC |
| Color | yellow |
| Voltage | 380V 50 Hz 3P (other voltage acceptable) |
| Motor power | 7.5KW |
| Frequency converter power | 7.5KW |
| Alternator testing: | |
| Maximum power | 7.5KW |
| Maximum current | 200A |
| Maximum voltage | 80V |
| Excitation voltage | 12V/24V |
| Speed range | No load:0-1000Rpmad; Load:0-6000Rpm |
| Load mode | Electronic module (advance) |
| Motor drive style | Belt connect |
| Clamp style | Mounting clamp, fasten or loosen with button control, easy to mount or remove |
| Starter testing: | |
| Maximum Power | 15KW |
| Maximum current | 2000A |
| Maximum torque | 200M.M |
| Test solenoid excitation voltage | 12V/24V |
| Need external battery | 12V/24V/48V |
| print: | yes |
| | |
