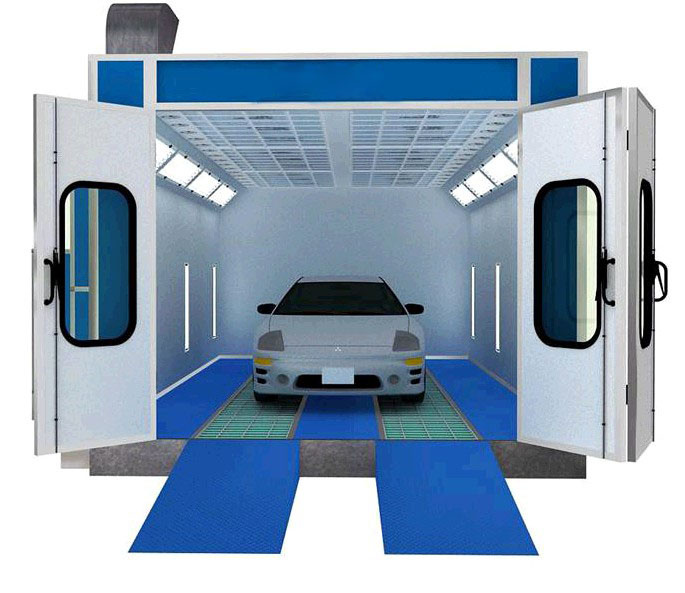

Automatic! ! ! Auto Spray Booth
| Price: |
US $ 7300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: |
BY-X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Brand Name: |
Baoyues |
| Products Name: |
Auto Spray Booth |
| Function: |
Car(or Furniture)Painting and Baking |
| Certificate: |
CE,CCS,SGS,TUV |
| Service: |
Professional Team for Installation Abroad |
| Warranty: |
1 Year |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Certification: |
UL |
Product Description
Auto spray booth:
1. Powerfrugal system
2. Auto pressure system
3. CE, CCS certificate
4. Professional install team abroad
5.1 year warranty
Auto spray boothauto spray boothauto spray booth
Auto spray boothauto spray boothauto spray booth
The inside dimension and outside dimension can be design as your requirement. Baoyue offter the warranty about 1 year, with professional technical and best service in this line.
The detailes:
Spray booth conveying and storage:
Auto spray boothauto spray boothauto spray booth
As spray booths are in big size, they're conveyed in bulk while loading and unloading. The parts in frame should be loaded and unloaded by fork vehicles while the small parts are conveyed by manpower. The finished parts of spray booth are usually stored in the finished products warehouse, and marked on the outside packages for checking before delivery. After being sent to the destination, all the parts should not be put in the open air but in store house to prevent from rusting and oxidized by the moisture.
Auto spray boothauto spray boothauto spray booth
Introduction for Baoyues:
Guangzhou Baoyue Electromechanical Equipment Co., Ltd, which specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, has sucessfully exported our products to Europe, Africa, America ect. And get a positive feedback. We own the factory in Guangzhou of China, all the customer are welcomed to visit our factory. The competitive price and high quality of our products can be very helpful to your business.
Auto spray boothauto spray boothauto spray booth
|
Inside dimension |
6900 × 3900 × 2650mm (L×W×H) |
|
Outside dimension |
7000 × 5350 × 3400mm (L×W×H) |
|
Front door |
F olding door, 4 folds, 3000×2600 mm(W×H), without frame cover, colour : white . |
|
Emergency door |
1 unit, 650×1800mm (W×H), colour: white |
|
Basement |
Galvanized steel assemble |
|
Wall Panels |
Thickness:50mm, width:1150mm, tongue and groove structure, 0.376mm colour steel with polystyrene (EPS) insulation inside, colour: blue |
|
Light |
Ceiling l ights:8Units × 4Pcs=32Pcs × 36W,Side l ights:8Units ×2 Pcs= 16 Pcs ×18 W, with electronic ballasts, lighting boxes are powered coated. Illuminate: ≥1000LUX |
|
Generator cabinet |
Intake from side upper, exhaust from back upper, quadrate steel frame; white coated steel covered, filled with heat preservation material inside. |
|
Intake and Exhaust system |
Inlet: 2×3 KW double-intake centrifugal fans, model YDW4.5M1, air capacity for each fan: 10500m 3 /h. |
|
|
Outlet: 1× 4KW double-intake centrifugal fan, model YDW4.5L1 , air capacity: 12500m 3 /h . |
|
Heating system |
RIELLO G20 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 200000kcal/h, Max temperature: 80 degree |
|
Purification system |
Pre-filter, ceiling filter, fibreglass filter, activated carbon filter |
|
Roof |
Galvanized steel. |
|
Control system |
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, temperature limit controller, exhaust with manual damper, all motors are normal start. |
|
Total Power |
12KW |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
