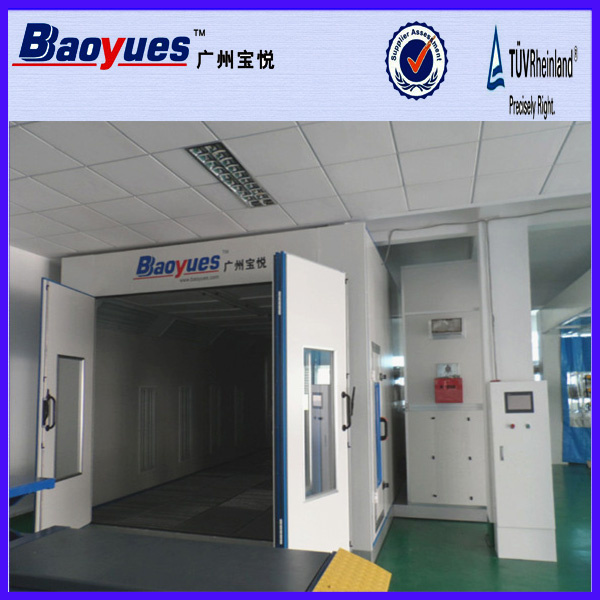

Auto Paint Spray Booth
Price: |
US $ 10000-11000set |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1set |
Pay Type: |
T/T |
Prod Model: |
BY-5 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Panel: |
Rock Wool |
Heating: |
Riello Diesel Burner |
Intake And Exhaust Unit: |
Turbo Fan |
Design: |
European Design |
Heating Mode: |
Diesel |
Certification: |
CE |
Condition: |
New |
Product Description
spray booth for car painting and baking
1, CE approved, ISO 9000 safety control
2, Real export manufacture
3, Active carbon filter system
4, Car Paint Room
Model: BY-5 nonstandard
Inside dimention:6900*3900*2650mm L*W*H
Any Size Requirements Can Be Made.
with waterborne paint system
A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.
Detailed Image
Manufacturing Process
Certificate
Inside dimension | 6900×3900×2650 mm(L×W×H) |
Outside dimension | 7000×5300×3450 mm(L×W×H) |
Front door | Folding door, 4 folds, 3200×2600 mm(W×H),without frame cover, colour : blue. |
Emergency door | 1 unit, 800×2000mm(W×H), colour: white |
Basement | Galvanized steel assemble, 300mm high, with adjustable bolts, quadrate steel support, full grilles made by flat bar and twisted steel, galvanized. 3ramps, 900×2000mm/pc. |
Wall Panels | Thickness: 50mm, width:1150mm,tongue and groove structure, 0.476mm colour steel with rock wool inside, colour: white. |
Light | Ceiling Lights: 8Units×4Pcs=32Pcs×58W, Side Lights: 13Units×4Pcs=52Pcs×18W, with electronic ballasts, lighting boxes are powered coated, illumination≥1500Lux |
Generator cabinet | Intake from back upper, exhaust from back upper, aluminium alloy frame; white coated steel outside covered, galvanized steel inside, filled with heat preservation material inside. |
Intake and Exhaust system | Inlet: 1×7.5KW turbofan, power: 7.5KW, air capacity: 25000m 3 /h. |
Outlet: 1×7.5KW turbofan, power: 7.5KW, air capacity: 25000m 3 /h. |
Heating system | RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 26000kcal/h. |
Purification system | Pre-filter, ceiling filter, fibreglass filter, activated carbon filter |
Roof | Galvanized steel |
Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller, pressure gauge, pressure alarm system,adjustable electric exhaust damper, all motors are normal start. |
Total power | 18.5KW |
Baoyue started since 2011, the company specilize in the design, manufacture and sale for auto spray/backing booth, industry painting equipment, high temperature drying plant, The products with international design standard, latest manufacture technology. The engineer, factory director, manager, sales director etc all engaged in this industry more than 15 year.
As a professional manufacturer, we have rich experience, supply all kinds of good quality spray booth, prep station and car lift etc, with the certificate of CE, ISO, SGS, CCS etc. Factory located Guangzhou, Huadu district, which is modern car industry production park, have convenient transport facilities. The area for working and manufacturing more than 19, 000, staff more than 90, including the techinican team more than 9, after service team more than 10. The workshop including many cutting machine, pumting machine, bending machine, welding machine etc, with water curtain paint booth, powder coating booth, high temperature oven.
We have attended Automechanika Shanghai 2012, 2013, 2014, 2015, 2016, and Beijing exhibition 2012, 2013, 2014, 2015, with large confidence to show our spray booth.
We wish to establish the good cooperation relationship with you, not for once or twice, but for the long term cooperation, looking forward to developing together with you in the near future. The paint booth and widely used for car, bus, truck, machine, furniture and other industry, already exported to EU, Middle East, Asia, Africa, Australia etc, and serviced BMW, Honda, Audi, Nissan, Benz, Honda, Toyota, etc, as well as the air plane company, Army, and bus manufacturer, furniture manufacturer.
