Asymmetric Column Clear Floor Lift (ACEL32CC/40CC)

Name: Asymmetric Column Clear Floor Lift (ACEL32CC/40CC)
Brand: ibuyautoparts.com
SKU: 782562875
Availability: InStock
Rating: 4.4 (86 reviews)

Price:	US $ 1000-2000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	ACEL32CC/40CC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Minimum Height:	95mm
Lifting Time:	40-45s/50s
Overall Height:	3726mm
Type:	Double Cylinder Hydraulic Lift
Lifting Capacity:	3.5T
Certification:	CE
Design:	Two Post

Product Description

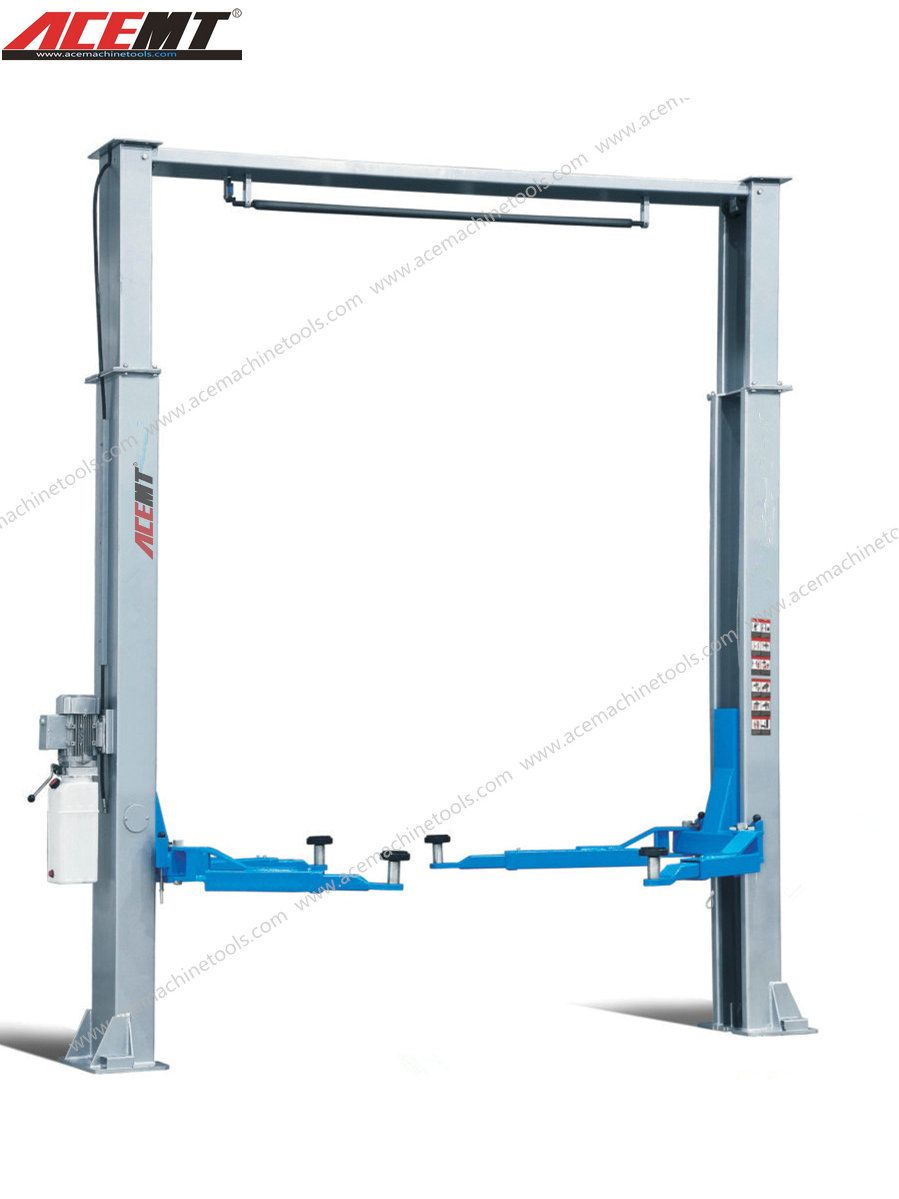

Asymmetric Column Clear Floor Lift(ACEL32CC/40CC)
FEATURES:
Clear floor design makes easy working under beneath the vehicle.
By two cylinder ,plate and wire rope chain balances system,lifting off and landing smooth.
Hydraulic power unit configuration throttling device, can always djust the rate of decline.
Manual locked release from two sides.
With 24V limit switch. Asymmetric column allows wider through clearance.
Rubber support pad with spiral adjust the heifht and in stages adjust the height, optional.
Rubber pad door-opening protection.
Toe protection
Trucks adapters can optional.
Have adopted 115% dynamic and 150%static loading tested.
CE approved.
TECHNICAL SPECIFICATION:

Lifting Capacity	3200kg/4000kg
Lifting Height	1900mm
Minimum Height	95mm
Lifting Time	40-45s/50s
Overall Height	3726mm
Overall Width	3420mm
Width Between Columns	2820mm
Motor Power	2.2kw
Power Supply	220V/240V/380V/415V
Weight	667kg/711kg
Packing Size	2900530770mm

ACE MACHINE TOOLS Co., Ltd, is a specialized exporter and manufacturer of machine tools and accessories with a long history.

Our mechanical products cover more than 80 kinds including lathe, milling machine, drilling machine, grinding machine, power press, hydraulic guillotine, hydraulic press brake, CNC & automotive machines and so on.

Our customers are widespread in more than 30 countries including U. S. A., Germany, Spain, France, England, Greece, Finland, Norway, Canada, south America, Middle East, Australia, Africa and southeast Asia etc.

Our principle to all the customers is high quality and good service. We have quality control team who will carefully inspect every machine in workshop before packing.

Welcome you to visit our website and contact us. We will give you quick response upon any of your need.
