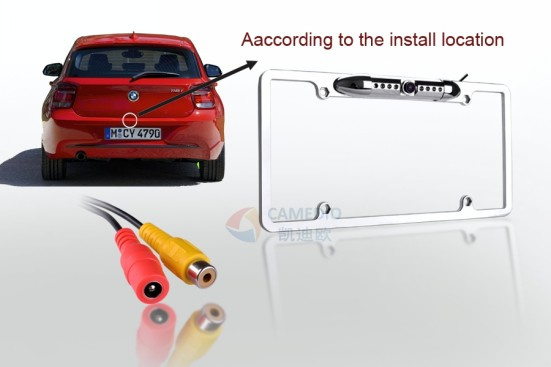

American USA Night Vision Car License Plate Frame Rearview Camera Cm-315b

Name: American USA Night Vision Car License Plate Frame Rearview Camera Cm-315b
Brand: ibuyautoparts.com
SKU: 690035142
Availability: InStock
Rating: 4.7 (79 reviews)

Price:	US $ 13.5-14.2/Piece
Trade Terms:	FOB,EXW
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

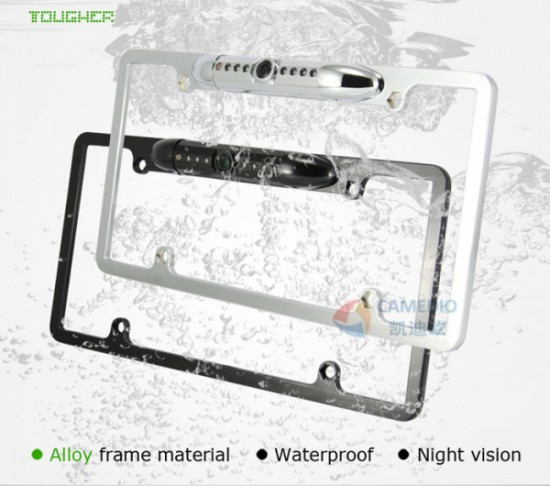

1)Exquisite high cleass Zinc alloy shell design

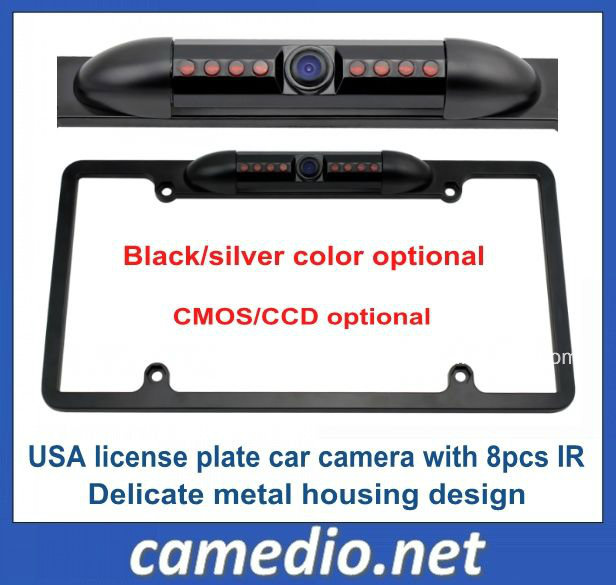

2) Built in 8pcs IR for better night vision at night

3)Waterproof design , day/night vision

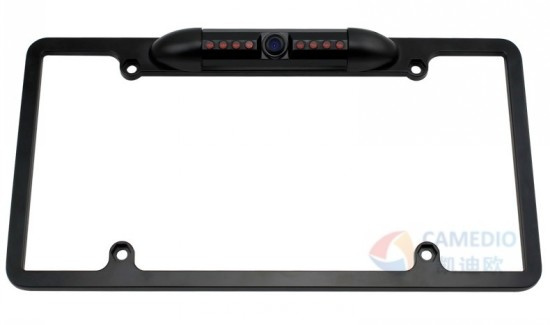

4)Black/silver housing avilable

5)4 Kinds of image sensors available

Specification:

Image device: PC7080
TV system: PAL/NTSC
Resolution: 420 TV lines
Effective pixels: 648*488 pixels
Sensing area: 4.08 mm *3.12 mm
Shutter speed: 1/60-1/5000
Video output: 1.0 VP-P, 75 OHM
Gamma consumption: 0.45
White balance: Auto
Scanning system: 2: 1 interlace
Lens angle: 135° /170°
Waterproof: IP67/68
Minimum illumination: 0.1 Lux/F=1.2(0 Lux with IR on)
Power supply: DC 12V
Operation temperature: -20° C - 75° C, RH 95% MAX
Storage temperature: -40° C - 85° C, RH 95% MAX

Image sensor :PC1089

Image sensor: PC1089
TV system : PAL/NTSC
Effective pixels: 765*652/520
Effective Image Area : 3.584 mm *2.688 mm
Max. Clock frequency : 54 MHz
SNR:≥46.4 [dB]
Sensitivity : 9.67 [V/Lux.sec]
Minimum illumination:0.005 Lux/F=1.2(0 Lux with IR on)
Lens angle:170 degree
Resolution: 540 TV Lines
Shutter speed: 1/60-1/20000
Video output: 1.0Vp- 75Ω
AE control: Auto
Waterproof: IP67/68
Power supply: DC12V±10% 20mA±10%
Operating Temp. (Fully Functional Temp) : -20ºC-75ºC,RH 95% MAX

Prod Model:	CM-315
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Image Sensor Available:	PC7070/Mt9V136/PC1089
Camera Degree:	170 Degree
IR Lights:	8
Waterproof:	Yes
TV System:	PAL/NTSC
Minimum Illumination:	0.1lux
Pixels:	628X582
Resolution:	420tvl/480 Tvl/520tvl Optional
Interface:	RCA
Chip:	CMOS
Waterproof Grade:	IP68
Definition:	480TV Lines
