Aircraft Tow Tractor Wheel (25-10.00/1.5)

Name: Aircraft Tow Tractor Wheel (25-10.00/1.5)
Brand: ibuyautoparts.com
SKU: 829162955
Availability: InStock
Rating: 4.4 (111 reviews)

Price:	US $ 200-500/Piece
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

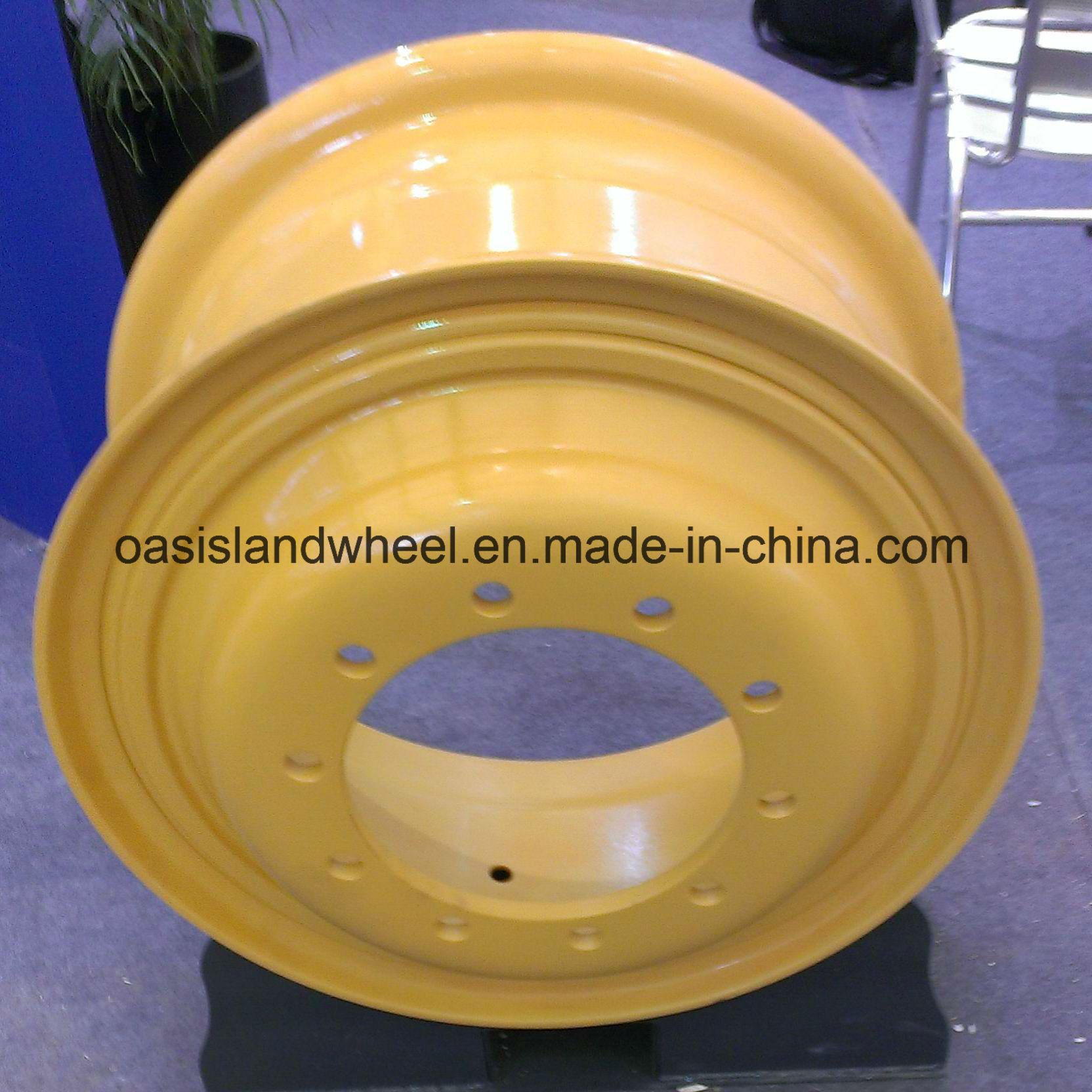

Aircraft tow tractor wheel (25-10.00/1.5)

To ensure product quality, the company established the ISO9001 quality system, and configure the universal testing machine, air tightness testing machine, chemical detector and many other test equipment. Product quality by customers.

Specification: 10/335/281
Offset: accordingly to request
Fitted tyre: 14.00-25 TL

More Sizes (3Piece 5 Piece )

Wheel Size	Recommend Tire Size
Wheel Size	Recommend Tire Size
25×10.00/1.5	14.00-25
25×11.25/2.0	16.00-25
25×13.00/2.5	18.00-25
25×14.00/1.5	17.5-25
25×15.00/3.0	21.00-25
25×17.00/2.0	20.5-25
25×19.50/2.5	23.5-25
33×13.00/2.5	18.00-33

Dia	Rim Size	Fitted Tyre	Bolt Hole		PC Dia	Center Hole Dia	Offset/ET
Dia	Rim Size	Fitted Tyre	No.	Dia.	PC Dia	Center Hole Dia	Offset/ET
29"	29-17.00/3.5	24.00-29	DOUBLE DISC A=520 B=290
	29-17.00/3.5	24.00-29	WITHOUT DISC A=40 B=648
	29-24.00/3.5	776/65R29	WITHOUT DISC A=40 B=648 C=672
	29-24.00/3.5	776/65R29	19	27	500	451.5	117.8

Dia	Rim Size	Fitted Tyre	Bolt Hole		PC Dia	Center Hole Dia	Offset/ET
Dia	Rim Size	Fitted Tyre	No.	Dia.	PC Dia	Center Hole Dia	Offset/ET
33"	33-13.00/2.5	18.00-33	12	28	595	547	130
	33-13.00/2.5	18.00-33	16	22	480	420	100
	33-13.00/2.5	18.00-33	WITHOUT DISC A=35 B=747 C=776
	33-28.00/3.5		31	26	551	500	262
	33-28.00/3.5		38	26	693	617	347
	33-28.00/3.5		WITHOUT DISC A=45 B=740 C=775

Dia	Rim Size	Fitted Tyre	Bolt Hole		PC Dia	Center Hole Dia	Offset/ET
Dia	Rim Size	Fitted Tyre	No.	Dia.	PC Dia	Center Hole Dia	Offset/ET
34"	34-14.00/1.3		19	21	511.18	462	27
	34-14.00/1.3		24	20	375	330	135
	34-16.00/1.5	53x18-34	20	21	511.8	462	60

Dia	Rim Size	Fitted Tyre	Bolt Hole		PC Dia	Center Hole Dia	Offset/ET
Dia	Rim Size	Fitted Tyre	No.	Dia.	PC Dia	Center Hole Dia	Offset/ET
35"	35-15.00/3.0	21.00-35	WITHOUT DISC A=25 B=774 C=824
	35-15.00/3.0	21.00-35	DOUBLE DISC A=467 B=290
	35-15.00/3.0	21.00-35	12	32	710	659	110.5
	35-15.00/3.0	21.00-35	14	36	704.85	644.7	44.8
	35-15.00/3.0	21.00-35	16	22	400	350	-11
	35-17.00/3.5	24.00-35	12	32	710	659	156
	35-17.00/3.5	24.00-35	WITHOUT DISC A=45 B=795 C=825
	35-22.00/3.5		23	24	483	431	268
	35-22.00/3.5		WITHOUT DISC A=40 B=495 C=826

Dia	Rim Size	Fitted Tyre	Bolt Hole		PC Dia	Center Hole Dia	Offset/ET
Dia	Rim Size	Fitted Tyre	No.	Dia.	PC Dia	Center Hole Dia	Offset/ET
49"	49-17.00/3.5	24.00-49	DOUBLE DISC A=425 B=430
	49-17.00/3.5	24.00-49	DOUBLE DISC A=425 B=430
	49-19.50/4.0	27.00-49	WITHOUT DISC A=20 B=1120 C=1184
	49-19.50/4.0	27.00-49	36	20.6	500	460	15

Dia	Rim Size	Fitted Tyre	Bolt Hole		PC Dia	Center Hole Dia	Offset/ET
Dia	Rim Size	Fitted Tyre	No.	Dia.	PC Dia	Center Hole Dia	Offset/ET
51"	51-22.00/3.0		36	20.6	597.66	558.2	0
51"	51-28.00/4.5		38	26	693	617	405

Dia	Rim Size	Fitted Tyre	Bolt Hole		PC Dia	Center Hole Dia	Offset/ET
Dia	Rim Size	Fitted Tyre	No.	Dia.	PC Dia	Center Hole Dia	Offset/ET
63"	63-36.00/5.0	53/80R63	WITHOUT DISC A=88 B=1430 C=1498.6

Prod Model:	25-10.00/1.5
Application:	Container Stacker
Material:	Steel
Type:	Rim
Certification:	DOT
Drive Wheel:	OTR Wheel
Wheel Hub Diameter:	25"

Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials

All products we supply will be with quality and guarantee...

For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.

For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.

Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
