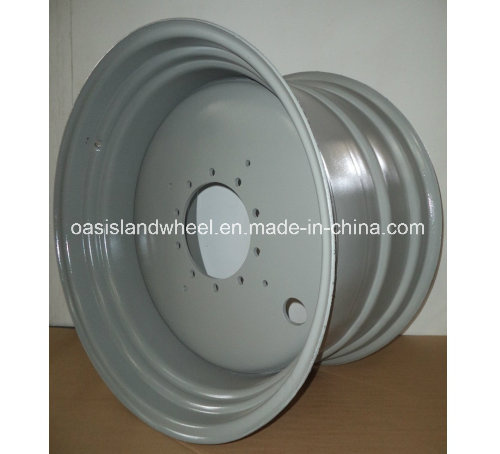

Agricultural wheels (DW23X38) for harvester tractor
Small and Large Tractors - Sprayers - Irrigation Equipment
Wheels and rims from 14" to 54" and widths from 6" to 23" in most rim profiles.
Rims with Clamps and applicable Discs
Irrigation wheels are available in diameters from 24" to 38" and widths from 8" to 15".
Fitted Tyre: 710/70R38 tractor tyre TT
Pack: in pallets
Design: Refer to ETRTO/TRA/JATMA
Data: 8/275/221
Quarantee: 2years
Paint electro coat and rust protection cost color silver or customer's request.
Specification
38xDW23B 10 M18 281 335 0
38xDW23B 12 M20 351 400 -185
38xDW23B 10 H1 281 335 -130
38xDW25B 16 M18 361 400 -60
| Rim Size | Fitted tyre | No. | Dia. | PC Dia. | Center Hole Dia. | Offset/ET. |
| DW10x38 | 11.2-38 | 8 | 16.6 | 203.2 | 152.5 | 62 |
| DW10x38 | 11.2-38 | 8 | 16.6 | 203.2 | 152.5 | -76.5 |
| DW11x38 | 12.4-38 | 8 | 21 | 250 | 199 | 115 |
| DW12x38 | 13.6-38 | 8 | | 203.2 | 152.4 | 75 |
| DW14x38 | 15.5-38 | 8 | 19 | 203.2 | 152.4 | 125 |
| DW15Lx38 | 16.9-38 | 8 | 19 | 275 | 221 | 174 |
| DW16Lx38 | 18.4-38 | 8 | 19 | 771.5 | 725.8 | 90 |
More sizes of tractor wheels
| Inch | Description | Wheels | Tyres |
| 24" | one-piece 5° DW | DW13X24 | 14.9-24 |
| DW15LX24 | 16.9-24 |
| DW18LX24 | 20.8-24 |
| 26" | one-piece 5° DW | DW12X26 | 13.6-26 |
| DW15LX26 | 16.9-26 |
| DW16AX26 | 18.4-26 18.4R26 480/70R26 |
| DW16LX26 | 18.4-26 18.4R26 480/70R26 |
| DW20X26 | 23.1-26 23.1R26 620/70R26 620/75R26 650/70R26 |
| DW20AX26 | 23.1-26 23.1R26 620/70R26 620/75R26 650/70R26 |
| DW25AX26 | 28L-26 |
| 28" | one-piece 5° DW | DW15LX28 | 16.9-28 |
| DW20AX28 | |
| 30" | one-piece 5° DW | DW12X30 | 13.6-30 |
| DWW12X30 | 13.6-30 |
| DWW13X30 | 14.9-30 |
| DWW14LX30 | 15.5-30 16.9-30 16.9R30 16.9/14-30 18.4R30 18.4/15-30 420/70R30 480/70R30 |
| TW14LX30 | 15.5-30 16.9-30 16.9R30 16.9/14-30 18.4R30 18.4/15-30 420/70R30 480/70R30 |
| DW15LX30 | 16.9-30 16.9R30 16.9/14-30 18.4R30 18.4/15-30 480/70R30 520/70R30 |
| DWW15LX30 | 16.9-30 16.9R30 16.9/14-30 18.4R30 18.4/15-30 480/70R30 520/70R30 |
| DWW16LX30 | 18.4-30 18.4R30 18.4/15-30 480/70R30 520/70R30 |
| DW20AX30 | 620/75R30 23.1-30 |
| DW23AX30 | 420/90R30 |
| 32" | one-piece 5° DW | DW21AX32 | 24.5-32 24.5R32 680/70R32 650/75R32 680/75R32 |
| DWW21AX32 | 24.5-32 24.5R32 680/70R32 650/75R32 680/75R32 |
| DWW25AX32 | 28-32 |
| DW27AX32 | 32.5L-32 800/65R32 |
| DWW27AX32 | 32.5L-32 800/65R32 |
| DW31AX32 | 900/60R32 900/65R32 900/50R32 900/65R32 |
| 34" | one-piece 5° DW | DW10X34 | 11.2-34 |
| DW13X34 | 385/85R34 |
| DW14LX34 | 420/85R34 16.9R34 16.9/14-34 |
| DW15LX34 | 480/70R34 16.9-34 16.9R34 16.9/14-34 18.4R34 18.4/15-34 520/70R34 |
| DWW15LX34 | 480/70R34 16.9-34 16.9R34 16.9/14-34 18.4R34 18.4/15-34 520/70R34 |
| DW16X34 | 18.4R34 18.4/15-34 20.8R34 480/70R34 520/70R34 |
| DWW16LX34 | 18.4R34 18.4/15-34 20.8R34 480/70R34 520/70R34 |
| DW18LX34 | 480/85R34 20.8-34 |
| DWW18LX34 | 480/85R34 20.8-34 |
| DWW21AX34 | 650/75R34 |
| DWW23AX34 | 650/75R34 |
| 38" | one-piece 5° DW | DW10X38 | 320/85R38 |
| DW11X38 | 12.4-38 12.4R38 13.6R38 14.9R38 320/70R38 360/70R38 380/70R38 |
| DW12X38 | 13.6-38 14.9-38 |
| DW14LX38 | 15.5R38 15.5-38 16.9R38 16.9/14-38 480/70R38 |
| DW15LX38 | 16.9-38 16.9R38 16.9/14-38 480/70R38 18.4R38 18.4/15-38 520/70R38 |
| DW16X38 | 18.4-38 480/70R38 18.4R38 18.4/15-38 520/70R38 20.8R38 20.8-38 |
| DW18LX38 | 20.8R38 20.8-38 520/70R38 580/70R38 |
| DW20AX38 | 650/75R38 23.1-38 |
| DW23AX38 | 650/75R38 |
| 42'' | one-piece 5° DW | DDW18X42 | 650/65R42 |
| DW23X42 | |
Assembly is available !
Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials
All products we supply will be with quality and guarantee...
For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.
For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.
Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
