Agricultural Implement Wheel 15.3X9.00

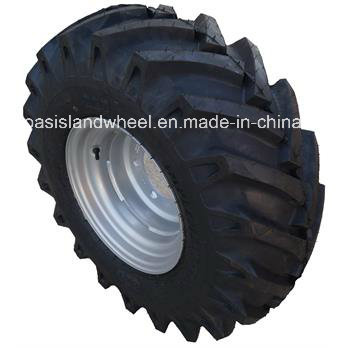

Name: Agricultural Implement Wheel 15.3X9.00
Brand: ibuyautoparts.com
SKU: 794684605
Availability: InStock
Rating: 4.7 (87 reviews)

Price:	US $ 20-23/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	15.3x9.00
Color:	Silver / Yellow / White
Valve Protector:	Available
Material:	Steel
Type:	Rim
Wheel Hub Diameter:	<16"
Certification:	DOT
Drive Wheel:	Trailer
Finishing:	Silver

Product Description

Agricultural Implement Wheel 15.3x9.00

Specification:

Steel Wheel / Rims (9.00X15.3 ET=0) Agriculture use
TS16949 Certificated / ISO9001/TUV approval
Material: SPHC steel

1. Size:	9.00x15.3
2.Thinkness of rim:	4.0mm
3.Thinkness of disc:	6.0mm/8.0mm/10.0mm
4.Offset:	0mm
5.Bolt hole number:	6holes
6.Bolt hole diameter:	21.4mm
7.PCD:	205mm
8.Central hole diameter:	161mm

Advantage

1.Full range of agricultural wheel rim apply to ETRTO/TRA from 12" to 54"
2.Optimizd 45°-rim flange shape

3.Optimized rim profile stiffness for fast driving vehicles

4. OASISLAND offer rims with flange reinforcement straight from the factory

5. Humps designed to prevent the bead of the tire dropping into the wheel well during sudden deflation

6.Kurling on 6° and 15° rim to counteract the tendency for the tire to slip on the rim

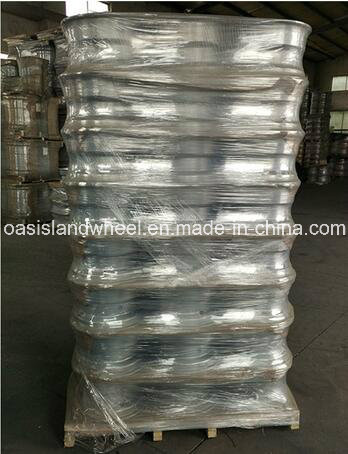

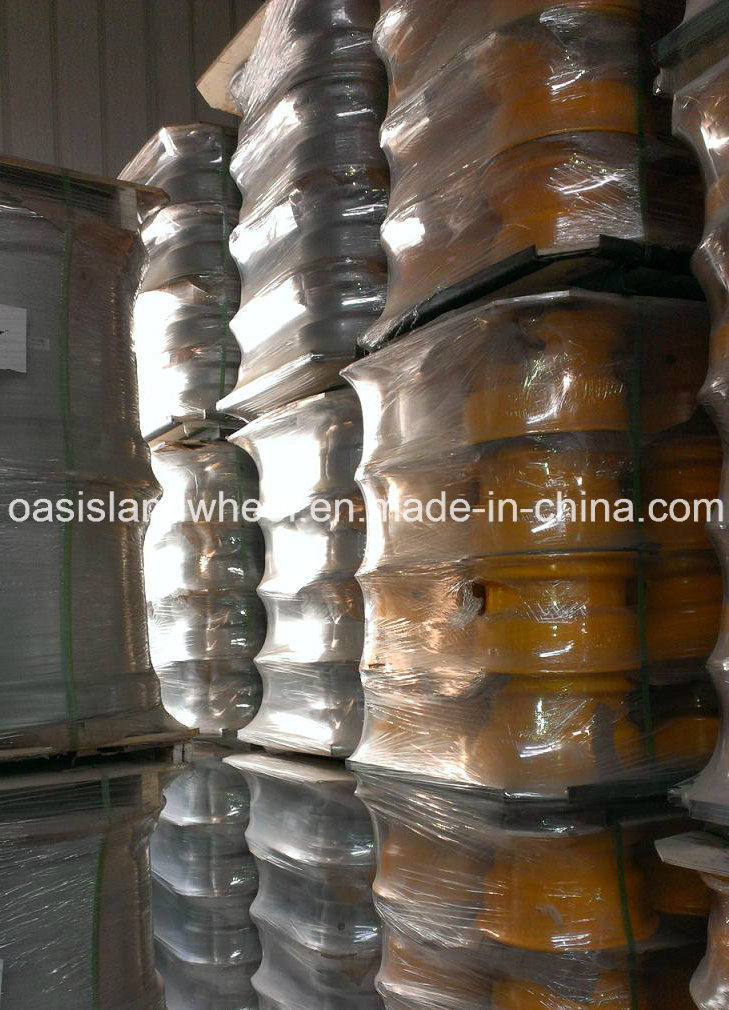

Packing:

AG Wheels Range:

Agricultural wheels with 5°- rim bead seats and DW-rim profile
Wheel	Fitted Tire	Wheel	Fitted Tire	Wheel	Fitted Tire
DW15Lx24	16.9-24	DW20x30	23.1-30	DW20x38	650/65-38
DW16Lx24	19.5L-24 18.4-24	DW20x32	23.1-32	DW23x38	710/70R38
DW18Lx24	20.5-24	DW21x32	24.5R32	DW16x42	18.4-42
DW20x26	23.1-26 24L-26	DW27x32	30.5L-32 800/65R32	DW18x42	20.8-42
DW25x26	30.5L-26 28L-26	DW10x34	12.4-34	DW23x42	710/70R42
DW15Lx28	16.9-28	DW15x34	16.9-34	DW27x42	900/60-42
DW18x28	18.4-28	DW16x34	18.4-34	DW10x46	11.2-46
DW20x28	21L-28	DW20x34	23.1-34	DW12x46	12.4-46
DW14x30	16.9-30	DW16x38	18.4-38	DW13x46	14.9-46
DW16Lx30	18.4-30 23.1-30	DW18x38	20.8-38 600/65-38	DW16x46	18.4-46

Agricultural flotation wheels with 15°-rim beat seat
Wheel	Fitted Tire	Wheel	Fitted Tire
22.5x16.00	500/60-22.5 550/60-22.5 550/45-22.5	26.5x24.00	700/50-26.5
22.5x20.00	600/50-22.5 650/50-26.5 600/55-22.5	26.5x28.00	800/45-26.5
22.5x24.00	700/50-22.5	30.5x20.00	600/50-30.5 800/60-30.5
26.5x16.00	500/60-26.5	30.5x24.00	650/80-30.5 700/50-30.5 750/60-30.5
26.5x20.00	600/55-26.5	30.5x28.00	800/45-30.5 800/55-30.5 850/50-30.5

Agricultural irrigation wheels
Wheel	Fitted Tire	Wheel	Fitted Tire	Wheel	Fitted Tire
W8x20	9.5-20	8.25x22.5	9.5-22.5	W12x24	13.6-24 14.9-24
DW10x20	11.2-20	W8x24	9.5-24	8.25x24.5	9.5-24.5
DW11x20	13.6-20	W10x24	11.2-34	W10-38	11.2-38

Oasisland International is one of the fast-growing tyre and wheel rim supplier in China specializing in the agricultural, trailer, construction, material handling, industrial, mining and other specials

All products we supply will be with quality and guarantee...

For the tyres we supply will be with certificates, such as CCC, DOT, ECE, GCC, SONCAP for different market.

For the Wheels, it will be engineering standards of the TRA and the ETRTO, as well as the testing standards established by SAE and EUWA. Further more, for some special market, our wheels will manufacture according to the local standard, such as Australia. That will guarantee all wheels can suit for different request of different markets.

Now we already provide some products to OEM client in some markets. We do sure our OEM market will be larger after testing our quality products. However we are small now, we will grow to be larger and stronger soon basic on our clients' support.
