8CH 960h Mobile Transport Security Video Recorder
| Price: |
Negotiable/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Western Union |
VC-H2 Series is a high level hard disk And SD Card mobile digital video recorder specially designed for vehicle surveillance purpose. It adopts high speed processor and embedded operating system, and applies various advanced technologies in IT field, such as A/V codec, high capacity hard disk and SD card storage, network streaming media, A/V noise reduction, wide range voltage design.
- Industrial level design;
- HIS solution,H.264 advanced audio/video compression technology;
- 4ch model support max 4ch 720P video input,4 ch audio input;8ch model support max 8ch 960H video input;
- 8-36V wide voltage with low power consumption;
- Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s;
- Exclusive pre-allocate File System protect data completeness,prevent HDD & SD Card fragment,ensure date stablely and completely;
- Central management software provided for optional;
- Built in G-sensor/GPS/BD Extension module for optional;
- Local and remote PTZ control;
- Data redundant storage technology;
- Remote control ,remote download,remote playback;
- 3G/4G, GPS, Wi-Fi function for optional and switch automaticly;
- Support 6ch I/O alrm,over speed alarm,g-sensor alarm,video lose alarm, motion detection alarm;
- support USB port data backup and device update;
- HDD+SD Card Storage ( Support 2.5" HDD, max 128G SD Card);
- Support HDD heating functions,can work in harsh environment;
- Realize real time monitor through 3G/4G;
- Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;
- Support IOS/Android Phone Remote monitor
Bus, School bus, Logistics vehicle, Taxi, Police car, Special purpose vehicle, Train/metro, Ship/boat
| ITEM | DESCRIPTION |
| System | Linux |
| GUI | Setup system parameters through the remote controller. |
| Language | Chinese / English |
| Security | Administrator and user password supported |
| Video and preview | Video input/output | 4 channel input; 1 channel output; 1.0Vp-p, 75Ω |
| OSD | Overlays letters… like date & time information and vehicle ID into video streaming |
| Video Compression Criteria | H.264.With Hisilicon technology |
| Preview |
Support 1 ch 2ch 4ch 8ch preview. |
FPS | PAL: 25Frame/s NTSC:30Frame/s |
| Resolution | Support CIF |
| Video quality | 1-4 levels, 1 is the highest level and 4 is the lowest level |
| Video Bit Rate | CIF: 256Kbps ~ 1.5Mbps, 4 quality level support,
|
Audio | Audio input/output | 4 channel input for 4ch model/8ch for 8ch model; 1 channel output |
| Audio Streaming | G.726 |
Record | Storage | SD card: support max 128G,
support USB for data export |
| File form/system | H.264/FAT32 |
| Recording Mode | Default auto recording after power on, support timed recording, alarm recording. |
| Video Search | Search video by time, type (normal or alarm), target SD card |
| Video playback | Support 1 to 4/8 channels playback simultaneously |
| Support forward and backward at the speed of: x2, x4, x8, and x16. |
| Alarm | Alarm input | Support up to 6 channels alarm input |
| Alarm record | include the recording within 15 seconds ahead of the alarm starting, and the recording after alarm dynamically adjusted |
| Alarm of storage | Support storage alarm |
| Alarm function | The alarm of video loss |
| Upgrade | Upgrade by SD card or USB |
| Power&consumption | Power management |
1.ACC ON/OFF
2. System power off according to the delay time
3.Timing ON/OFF
With overload protection, undervoltage protection,short protection, |
| Power input | DC:+8V ~ +36V |
| Power output | +12V@5*0.5A; |
| Power consumption | The normal state<10W;Standby 0W |
| Working environment | Operating temperature | -25ºC ~ +60ºC |
| Operating Humidity | 10% to 95% |
| Dimensions | 142(W) x62(H) x123(D) mm. |
| Weight | 1.1KG |

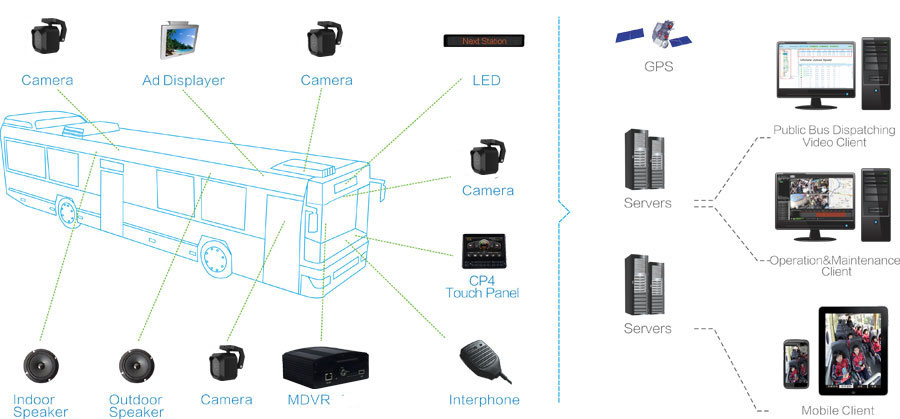

Note: following diagram only or 3G function model,not for the basic model
| Prod Model: |
VC-H2 |
| Storage: |
Support HDD&Max 128g SD Card |
| Channel: |
4 CH |
| Compression Format: |
H.264 |
| Interface: |
Aviation Connector |
| Brand: |
Vcomsky |
