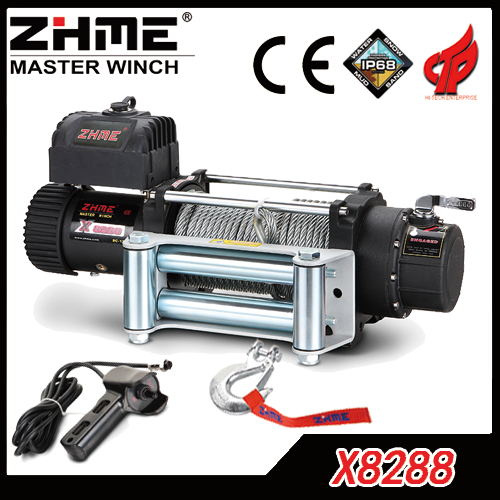

8288lbs Wire Rope Electric Winch with Ce

Name: 8288lbs Wire Rope Electric Winch with Ce
Brand: ibuyautoparts.com
SKU: 800368315
Availability: InStock
Rating: 4.9 (122 reviews)

Price:	Negotiable/Piece
Min Order:	15/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

8288lbs wire rope electric winch for Truck Trailer Jeep

Characters:
1.Waterproof IP68
2.Handle or wireless remote control
3.Automatic brake in the drum
4.Powerful winch motor(Series wound 6.8 hp /5.0kw,12V DC),fast line speed
5.Smooth hand clutch,simple and reliable operation

Specification:

Specification
Rated line pull:	8288Lbs (3760kgs) single line
Motor:	Series wound 6.8hp /5.0kw,12V DC
Gear Train:	3 stage planetary
Gear ratio:	138: 1
Clutch:	Sliding Ring gear
Braking action:	Automatic in the drum
Fairlead:	4-way Roller fairlead
Wire rope:	7.8mmX28m
Drum size:	3.0"×9.0"(76mm×228mm)
Dimensions:	23.7"×6.6"×8.7"( 603mm×168mm×220mm)
Mounting bolt pattern	10"×4.5"(254mm×114.3mm)
Battery:	Recommended 650 CCA minimum for winching 25 square mm,72"(1.83m)
N.W:	95lbs (43kgs)
Packing:	680mmx360mmx260mm(per carton) 324pcs per 20' container

Line speed and motor current (first layer)
Line pull	Lbs	0	2000	4000	6000	8288
	Kgs	0	907	1814	2722	3760
Line speed	FPM	65	19.7	14.1	12.5	11.2
	MPM	19.8	6	4.3	3.8	3.4
Motor current	Amps	58	160	220	280	360

Line pull and cable capacity
Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	8288	6400	5300	4700
Rated line pull per layer	Kgs	3760	2903	2404	2132
Cable capacity per layer	Ft.	19.6	43	72	105
Cable capacity per layer	M	6	13.2	22	32

Prod Model:	X8288
Product Name:	Electric Winch
Rated Line Pull:	8288lbs Winch
Motor:	Series Wound6.8 HP /5.0kw, 12V DC Winch Motor
Gear Train:	3 Stage Planetary Gear
Gear Ratio:	138: 1
Brake:	Automatic
Rope:	Wire Rope 7.8mmx28m
N.W:	95lbs (43kgs)
MOQ:	15 Winches
Type:	Electric Winch
Power Type:	Series Motor DC
Pull Direction:	Forward
Working Voltage Of Electric Winch:	Low Voltage
Applicable Environment:	Mountain Road
Certification:	RoHS
Brand:	Zhme
Electric Winch Model:	off-Road Winch

Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.

Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009

Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
