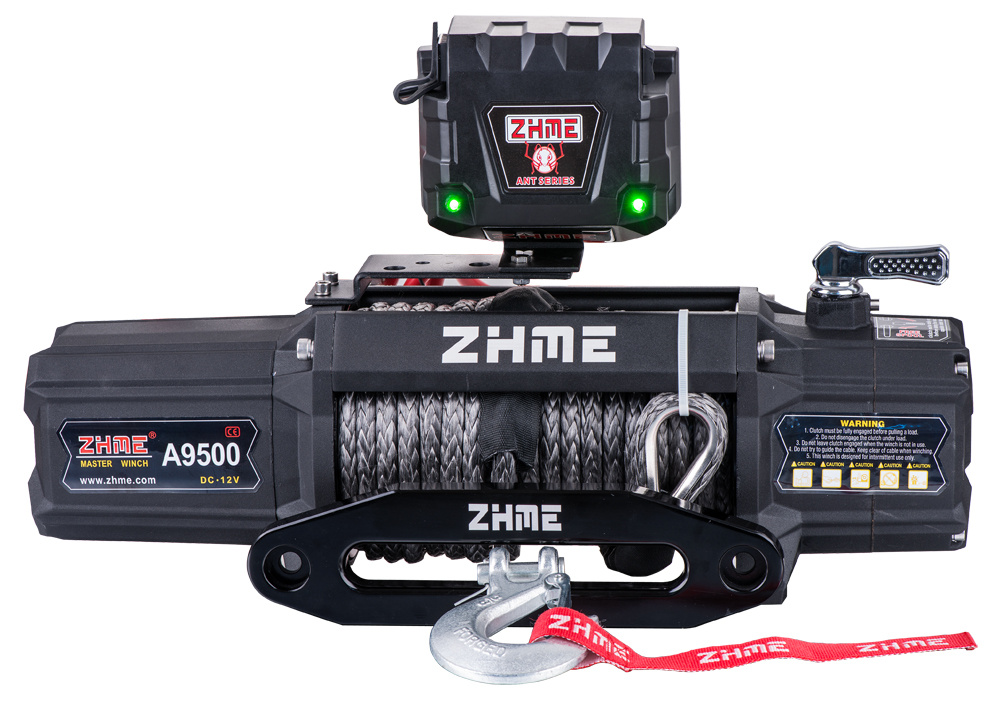

Synthetic Rope Winch with 12V DC

Name: Synthetic Rope Winch with 12V DC
Brand: ibuyautoparts.com
SKU: 812728015
Availability: InStock
Rating: 4.9 (127 reviews)

Price:	Negotiable/Piece
Min Order:	15/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Why is it called ANT series?

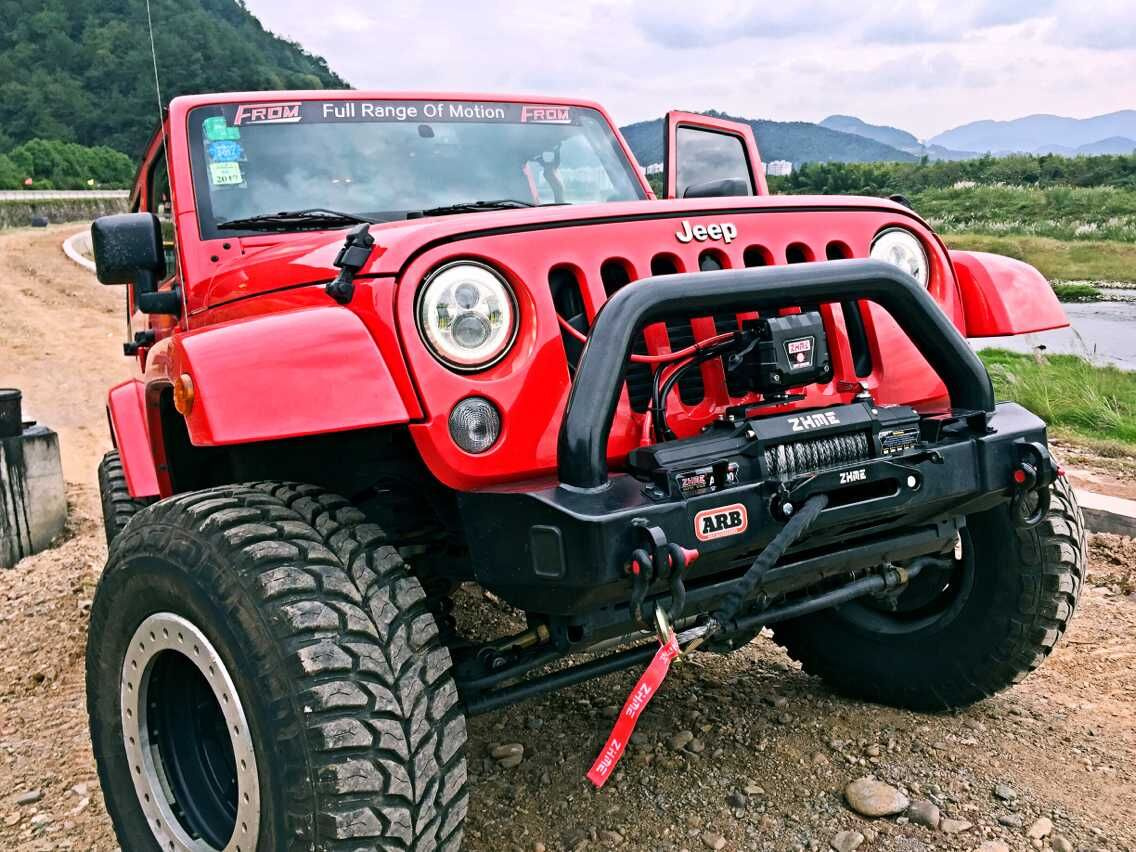

The winches with smart appearance are suitable for various vehicles, there are two indicated LED lights on the control box look like two eyes of an ant. Of course besides appearance, the main point is ant's spirit. Off road activities need strength and teamwork, just like ant, owe ANT winches, achieve success.

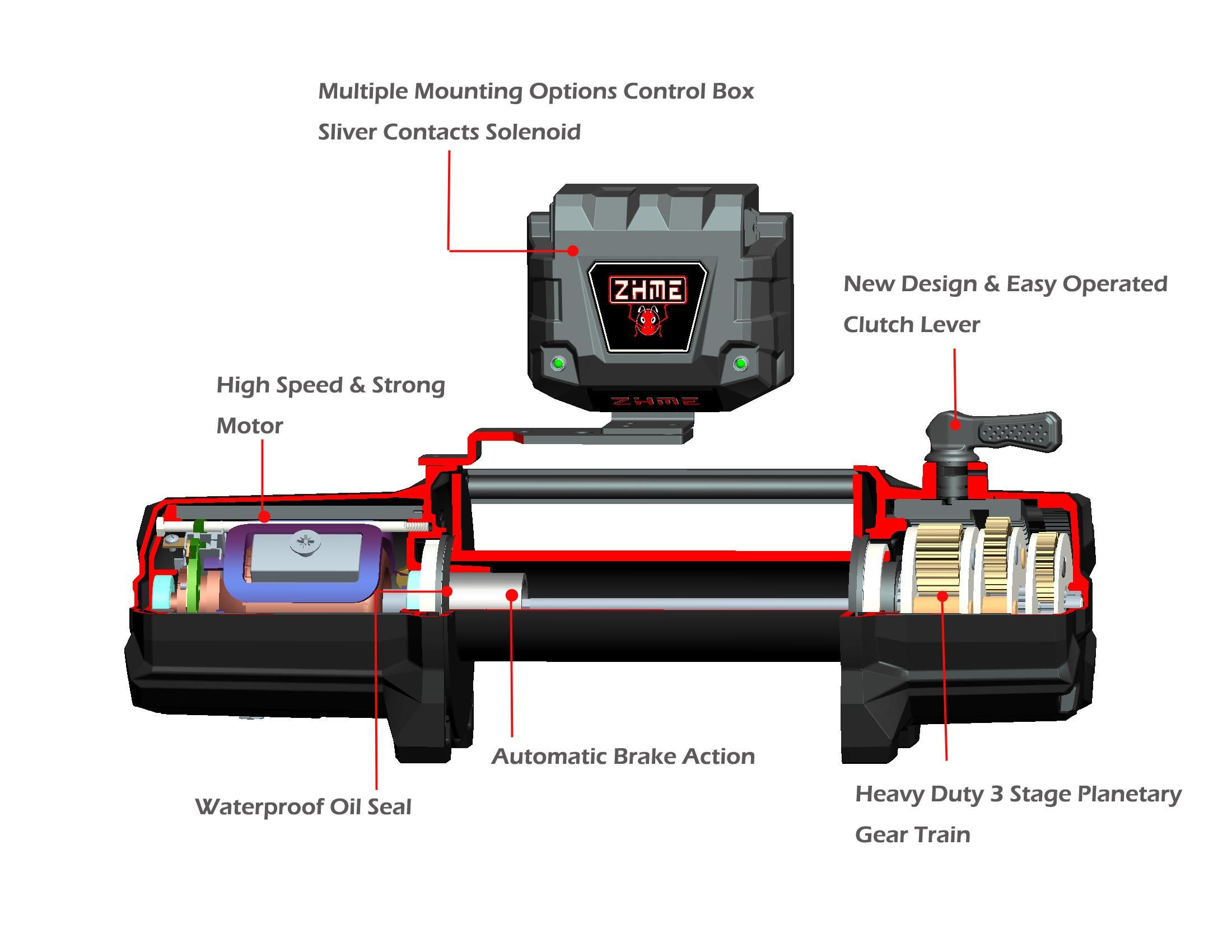

What are the shining features on ANT winches?

There are more than three mounting opitions for control box which is suitable for more vehicles.
Over sized tie rods strut for maximum strength.
3-stage planetary gear system for ultimate strength and quiet operation.
New design clutch for easier operation.

Specifications
Rated line pull:	9500 Lbs (4310kgs) single line.
Motor:	Series wound 5.5 hp /4.1kw 12V DC
Gear Train:	3 stage planetary
Gear ratio:	218 : 1
Clutch:	Sliding Ring gear
Braking action:	Automatic in the drum
Battery:	Recommended 650 CCA minimum for winching
Battery:	25mm²,72″(1.83m)
Fairlead:	4-way Roller fairlead
Wire rope:	3/10"×92'(7.8mm ×28m)
Drum size:	2.48"×8.9"( 63mm×226mm)
Dimensions:	21.5"×6.3"×7.6"( 545mm×160mm×194mm)
Mounting bolt pattern:	10"×4.5"(254mm×114.3mm)
N.W:	38 kg (84Lbs)

Line speed and motor current (first layer)
Line pull	Lbs	0	2000	4000	6000	8000	9500
Line pull	Kgs	0	907	1814	2722	3629	4310
Line speed	FPM	25.6	16	11.9	9.79	9.2	7.2
Line speed	MPM	7.8	4.88	3.63	2.98	2.5	2.2
Motor current	Amps	80	130	190	240	280	350

Line pull and cable capacity
Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	9500	8000	7200	6600
Rated line pull per layer	Kgs	4310	3629	3266	2994
Cable capacity per layer	Ft	19.6	43	72	92
Cable capacity per layer	M	6.0	13.2	22	28

Rated Line Pull:	9500lbs
Color:	Black Texture
Product Name:	Electric Winch A9500s
Type:	Electric Winch
Power Type:	Series Motor DC
Pull Direction:	Forward
Certification:	CE
Electric Winch Model:	A9500s
Working Voltage Of Electric Winch:	12V/24V
Brand:	Zhme

Ningbo Zhonghuang Machine & Electrics Co., Ltd (ZHME) is a specialized winch manufacturer situated in Ningbo, Zhejiang province, China, ZHME has 17 years experience in electric winches, our manufacturing plant has state-of-the-art assembly lines, together with in-house precision die-casting, CNC machining, heat treatment, polishing, high-pressure cleaning and finishing facilities. We also have advanced and fully-automated electric motor and winch testing facilities.

Established in 1995, ZHME has become a highly progressive and intensive R&D programmed into winch design, using the latest technology, to improve the performance and efficiency of products. We currently own patents on our many improved winch design features and strive to maintain our unsurpassed build-quality and outstanding value. ZHME has awards NINGBO high-technology enterprise since 2009

Today, ZHME has a comprehensive range of winch products and is developing more, Our philosophy is simple, To stay ahead in our business by being totally professional, but have fun doing it by remaining young in our hearts and minds.
