Shenzhen Brvision Technology Co., Ltd. >> 7 Inch TFT LCD Monitor and 1/3" CCD Sensor Camera

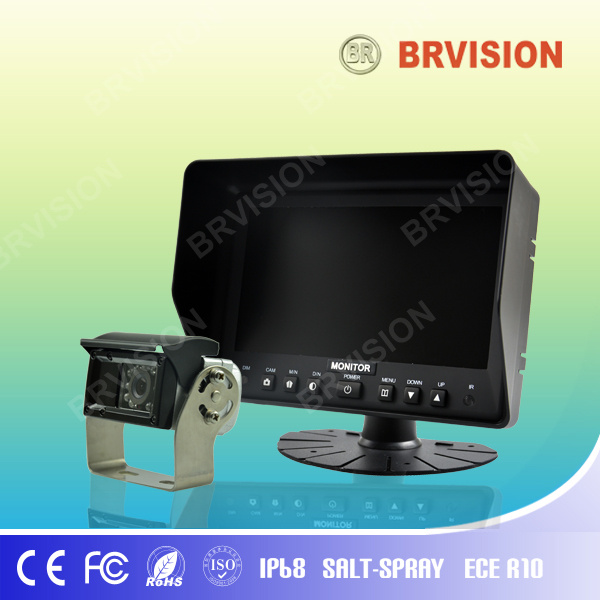

7 Inch TFT LCD Monitor and 1/3" CCD Sensor Camera

7 Inch TFT LCD Monitor and 1/3
Price: US $ 110/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T,Paypal
7" TFT built in control box System
. 7" Panel TFT LCD monitor
. Auto Shutter rear view camera
. 1/3" CCD Sensor camera
. 420TVL, 120° , IR, No Audio
. 20M extension cable ; accessories
. DC 12-24V power supply

Screen size7 inch
Resolution800*480*RGB
SystemPAL/NTSC automatically
Audio and video4 video/1audio input  Quad images,2/3/4 image optional
OSD menuLanguage,brightness, contrast, trigger priority delay display setting
Luminance250cd/SM
Working temperature-20°C-+70°C
Storage temperature-30°C-+80°C
Voltage12V-24V DC
Connector4 pin or RCA
Accessoriesuser manual/remote controller/powr calbe/sunshade/scre



Aluminum Shell Backup Waterproof Camera
Image Type: 1/3 Inch Color CCD
Horizontal Resolution:720TV Lines
NTSC:976(H)×494(V) PAL:976(H)x582(V)
Usable Illumination : 0Lux ( Built in 10 IR LED's for Picture Support in the Dark)
Free viewing angle: 130°
Waterproof:  100% Waterproof IP69K Rating
Shockproof: 10G
Video Output:1.0Vp-p75Ω
Operating temperature: -40ºC to +70ºC (Automatic heating when the camera's running temperature is below 10ºC optional)
Power supply:DC12V (from Reversing Monitor)
Dimensions: 75(W) x 43(H) x 38(D) mm (without mounting)
Weight Approx: 179g

Prod Model: BR-TM7001
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IP Rating: IP68
Vibration Rate: 10g
Monitor: 7 Inch
Brightness: 450cdm
IR: Night Vision
Mirror Type: Flat Mirror
Position: Inside
Controlling Type: Electrical
View Angle: 120??
Mirror Material: Glass
Pixel: 100Million
Color: White
Certification: ECE
Size: 7 Inch
Brand: Brvision
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products

Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.

Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.

It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.

BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.

We specialize in:

. Vehicle Rearview Camera(CCD or CMOS)

. Vehicle TFT LCD Monitor

. Wireless Transmitter and Receiver

. Surveillance Camera

. OEM and ODM Project

BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
