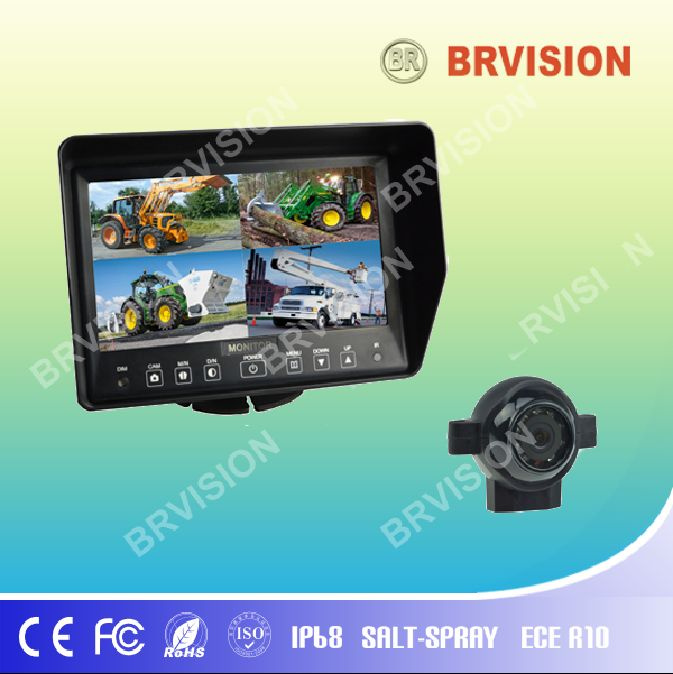

Shenzhen Brvision Technology Co., Ltd. >> 7" Digital Security Rear View Waterproof Monitor/ Front CCD Camera

7" Digital Security Rear View Waterproof Monitor/ Front CCD Camera

7
Price: Negotiable/Set
Trade Terms: FOB,EXW
Min Order: 1/Set
Pay Type: T/T,Paypal
Prod Model: QWP704&RVC07
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Screen Size: 7 Inch Digital TFT Panel
IP Rating: IP67
System: PAL and NTSC Auto Switching
Resolution: 800 X R.G.B X480
Brightness: 450CD/M2
Power Supply: 9-36V DC
Waterproof Grade: IP68
Chip: CCD
Definition: 420TVL
Interface: 4 Pin Connector

Product Description

7" Digital Security Rear View Waterproof Monitor/ Front Camera
Monitor Specification:
. Screen size: 7 inch Digital TFT panel
. IP Rating: IP67
. Aspect Ratio: 16:9 image
. Input: 4-way video input with 4 reversing cable
. System: PAL and NTSC auto switching
. Resolution: 800 x R.G.B x480
. Brightness: 450cd/m2
. Power supply: 9-36V DC
. Built-in speaker
. Operation Temperature: -20ºC~+70ºC.RH95% Max
. Storage Temperature: -30ºC~+80ºC.RH95% Max


BR-RVC07

Camera Specification:

-Image Sensor/Horizontal Resolution : 1/3 Sony Color CCD/700TVL



 1/4" Sharp Color CCD/420TVL



 1/4" CMOS Color CCD/420TVL


 - TV System: N TSC/ PAL

   - IP Rating: IP68

   - Vibration Rate: 10G

   - Night Vision function: 9pcs LED lamp

   - Ef fective Pixels N: 510×492 pixels P: 500×582 pixels

   - Video Output : 1.0vp- p,75Ohm,

   - Built-in Lens:2.8mm

   - Wide angle: 120°

   - Power Supply: 12V DC(+/-10%)

   - Power consumption: <3W

   - Silver Alluminium housing.

   - Oper at i ng Temp: - 20C° t o +70C°

  - Storage Temp: - 30C° t o +80C°

BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products

Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.

Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.

It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.

BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.

We specialize in:

. Vehicle Rearview Camera(CCD or CMOS)

. Vehicle TFT LCD Monitor

. Wireless Transmitter and Receiver

. Surveillance Camera

. OEM and ODM Project

BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
