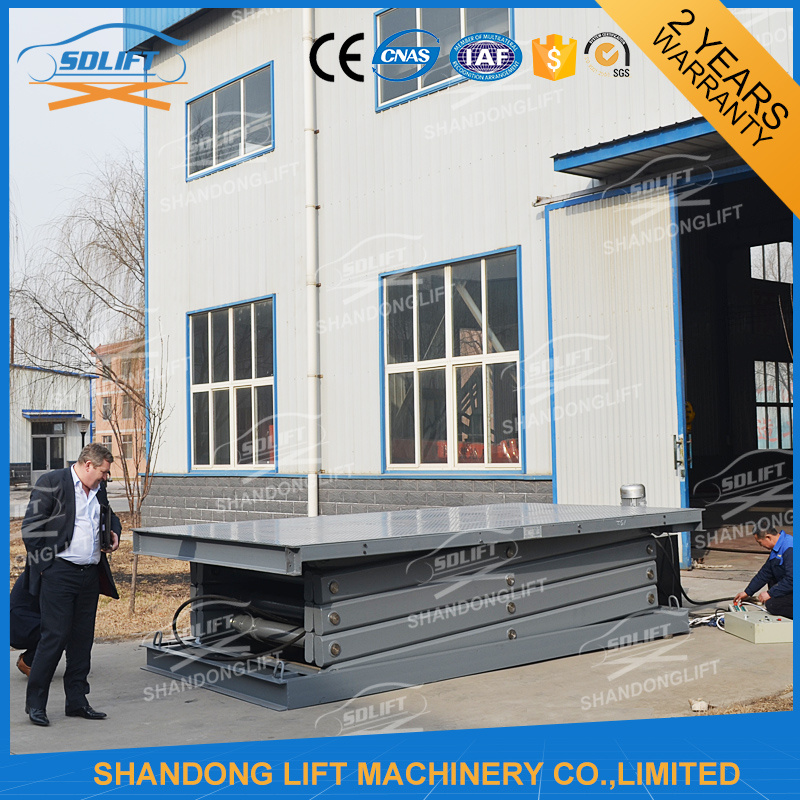

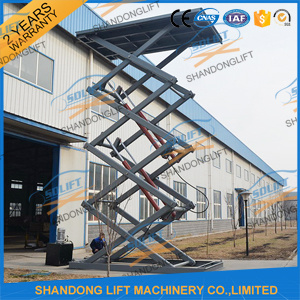

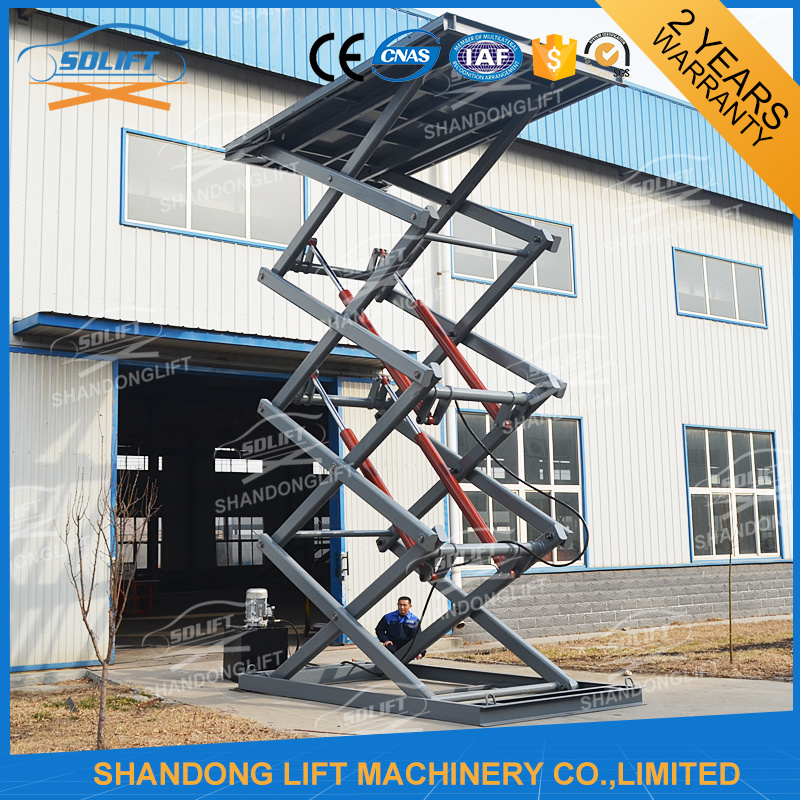

7.6m 3tons Hydraulic Scissor Electric Car Lift for Sale
Application - The electric car lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.
- Operation is easy. There are 2 sets control system installed on the electric car lift, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.
Details Images
1) Platform Material:rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/5.0Kw or as your requests.
4) High Precision Hydraulic Cylinder.
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the cars above the platform.
3) The limit switch system helps electric car lift to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the electric car lift are passed 1.2 times loading test before leaving factory.

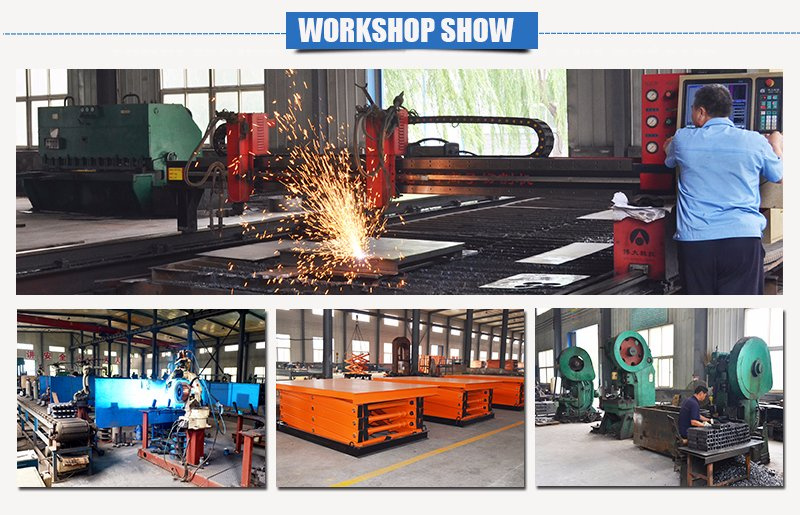

Our factory
The frequent models we supplied for our clients:
MODEL | LOAD CAPACITY | PLATFORM SIZE | LIFT HEIGHT | PIT DEPTH | POWER |
SJG2.5-3 | 2.5T | 5.2m x 2.6m | 3m | 750mm | 220V, 240V, 380V or 400V |
SJG2-6.5 | 2T | 5.2m x 2.8m | 6.5m | 800mm | 220V, 240V, 380V or 400V |
SJG2.5-3.5 | 2.5T | 5.2m x 2.6m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG2.5-5 | 2.5T | 5.6m x 3m | 5m | 800mm | 220V, 240V, 380V or 400V |
SJG3-2.5 | 3T | 5m x 2.3m | 2.5m | 750mm | 220V, 240V, 380V or 400V |
SJG3-3 | 3T | 5.2m x 2.6m | 3m | 800mm | 220V, 240V, 380V or 400V |
SJG3-3.5 | 3T | 5.6m x 2.7m | 3.5m | 800mm | 220V, 240V, 380V or 400V |
SJG5-10 | 5T | 4.5m x 2.5m | 10m | 1150mm | 220V, 240V, 380V or 400V |
SJG8-2.5 | 8T | 6.5m x 4.5m | 2.5m | 850mm | 220V, 240V, 380V or 400V |
SJG12-3 | 12T | 5.5m x 2.8m | 3m | 950mm | 220V, 240V, 380V or 400V |
SJG15-4.5 | 15T | 8m x 2.2m | 4.5m | 1150mm | 220V, 240V, 380V or 400V |
SJG20-5 | 20T | 6m x 3m | 5m | 1200mm | 220V, 240V, 380V or 400V |
The electric car lift can be customized as your detailed size. |
Certificate
Our service1) We can design the customerized electric car lift as per your requirement.
2) The most suitable electric car lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) Two year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.
9)We could reply you in 2 hours after received your any questions even on weekend and holiday. Engineers are available to your country if necessary.
Contact us
Shandong Lift Machinery Co., Ltd is one of the leading manufacturer of heavy duty scissor lifts and car parking lifts in China. Being in this field for over 59 years, and exported lift machine more than 17 years till 2017. Our main products are stationary scissor lift, mobile scissor work platform, car park lift, cargo elevator, disable wheelchair lift, aerial aluminum lift ladder, and mobile container loading ramps etc.
Now there are more than 116 staffs in our factory, and 10 production lines in 8 workshops. There is a engineer team focus on research, development and innovation. The biggest load weight of our scissor lift is 100tons. All the products are passed the test held by Check Station of China Special Equipment and Manufacture.
We regard ''reasonable prices, efficient production time and good after-sales service'' as our tenet, and hope to cooperate with more customers for mutual development and benefits. We sincerely welcome each potential customer to visit our factory!
