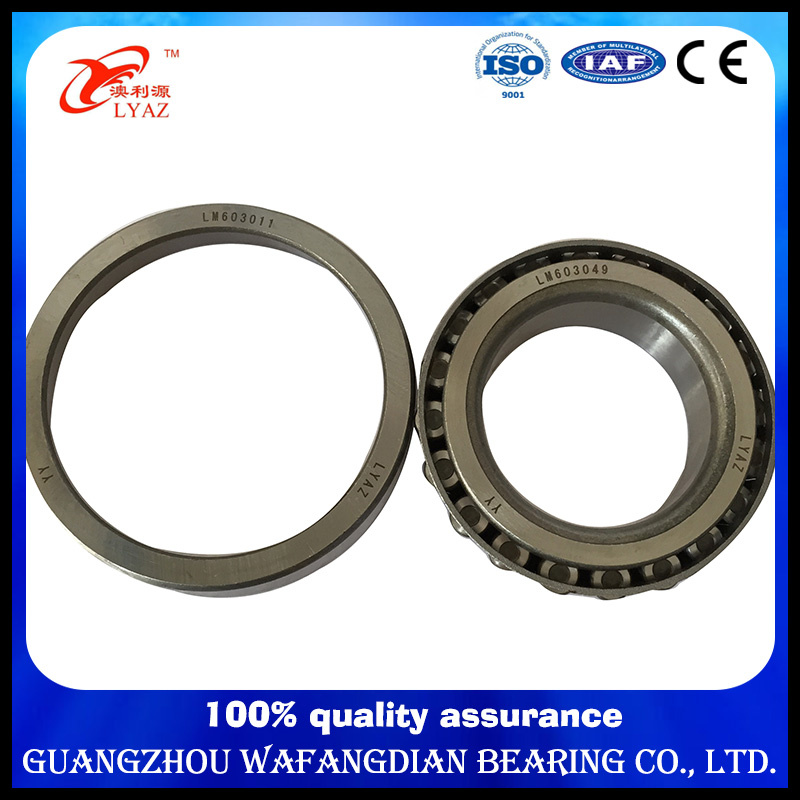

603049/11 603049 603011c Inch Auto Wheel Taper Roller Bearing

Prod Model:	603049
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outside Diameter:	42 - 360 mm
Bore Size:	15 - 170 mm
Vibration & Noisy:	Z1,Z2,Z3 V1,V2,V3,V4
Level:	Abec-1(P0),Abec-3(P6),Abec-5
Precision Rating:	P0 P6 P5 P4
MOQ:	1set
Sample:	Available
Place Of Origina:	Liaoning,China
Service:	OEM
Customer Brand:	Acceptable
Type:	Wheel Hub Bearing
Material:	Chrome Steel
Tolerance:	P0
Certification:	ISO9001
Clearance:	C0
ABS:	Without ABS
Brand:	Lyaz/OEM
Application:	All

Product Description

Quick Details

Structure:	Taper	Type:	Roller	Brand Name:	LYAZ/OEM
Bore Size:	15 - 170 mm	Outside Diameter:	42 - 360 mm	Model Number:	32205 31308 30210 33114 33212 31308
Precision Rating:	p0 p6 p5 p4	Seals Type:	open	Number of Row:	Single Row
Place of Origin:	Liaoning, China (Mainland)	OEM:	LYAZ/OEM	Material:	stainless steel//Bearing Steel(GCr15),Chrome steel
Certificate:	ISO9001:2000 ,BV	Level:	ABEC-1(P0),ABEC-3(P6),ABEC-5(P5),ABEC-7(P4),C3 V3	Clearance:	C0,C2,C3,C1,C4,C5,C6
Vibration & Noisy:	Z1,Z2,Z3 V1,V2,V3,V4	Mainly market:	American,Eastern Europe, Southeast Asia	inch auto wheel taper roller bearing:	603049/11 603049 603011 inch auto wheel taper roller bearing 603049

Packaging & Delivery

Packaging Details:	1.Carton Tubo . 2.Wrapped by oil paper and water-proof belt 3.Wooden pallets or wooden cases of free fumigation 4.According to customer's requirement  according to customer's requirements
Delivery Detail:	2-30days

1.  tapered roller bearing classification
1).single-row tapered roller bearing
2).double-row tapered roller bearing
3).four-row tapered roller bearing


 2.  Tapered roller bearing range of use:


Tapered roller bearing is widely used in automotive, rolling mill, mining, metallurgical, plastic machinery and other industries


3. About Tapered roller bearing :

1) Types: 30 series, 31 series, 32 series, 33 series, .

2) Corresponding models range :30203-30209,30302-30330, 32004x-32022x, 32204-32234,  33205-33210,  33008- 33022,
3).range of sizes:
Single row tapered roller bearing:             Inside diameter size: 20 mm ~ 1270 mm
                                                                 Outside diameter size range: 40 mm ~ 1465 mm
                                                                 The width size range: 15 mm ~ 240 mm
Double row circular cone roller bearings: Inside diameter size range: 38 mm ~ 1560 mm
                                                                Outside diameter size: 70 mm ~ 1800 mm
                                                                 The width size range: 50 mm ~ 460 mm
Four row circular cone roller bearings:     Inside diameter size range: 130 mm ~ 1600 mm
                                                                 Outside diameter size: 200 mm ~ 2000 mm
                                                                 The width size range: 150 mm ~ 1150 mm



model	ID	OD	W	Cr	Cor	Grease lubrication speed	Oil lubrication speed	weight
	(mm)	(mm)	(mm)	(kN)	(kN)	(r/min)	(r/min)	(kg)
30202	15	35	11	14.9	13.4	12000	16000	0.053
30244	220	400	73	-	-	-	-	35.5
30340	200	420	80	1120	1450	820	1100	53.5
30352	260	540	114	-	-	-	-	108
32205	25	72	24.25	-	-	-	-	0.174
30302	15	42	13	22.8	21.5	9000	12000	0.094
30203	17	40	12	20.8	21.8	9000	12000	0.079
30303	17	47	14	28.2	27.2	8500	11000	0.129
32303	17	47	19	31.9	29.9	9400	13000	0.17
32904	20	37	12	13.2	17.5	9500	13000	0.056
32004	20	42	15	25	28.2	8500	11000	0.095
30204	20	47	14	28.2	30.5	8000	10000	0.126
30304	20	52	15	30.5	28.4	8300	11000	0.17
32304	20	52	21	42.8	46.2	7500	9500	0.23
329/22	22	40	12	15	20	8500	11000	0.065
320/22	22	44	15	26	30.2	8000	10000	0.1
32905	25	42	12	16	21	6300	10000	0.064
32005	25	47	15	28	34	7500	9500	0.11
33005	25	47	17	32.5	42.5	7500	9500	0.129
30205	25	52	15	32.2	37	7000	9000	0.154
33205	25	52	22	47	55.8	7000	9000	0.216
30305	25	62	17	46.8	48	6300	8000	0.263
31305	25	62	17	40.5	46	6300	8000	0.262
32305	25	62	24	61.5	68.8	6300	8000	0.368
329/28	28	45	12	16.8	22.8	750D	9500	0.069
320/28	28	52	16	31.5	40.5	6700	8500	0.142
332/28	28	58	24	58	68.2	6300	8000	0.286
32906	30	47	12	17	23.2	7000	9000	0.072
32006X2	30	55	16	27.8	35.5	6300	8000	0.16
32006	30	55	17	35.8	46.8	6300	8000	0.17
33006	30	55	20	43.8	58.8	6300	8000	0.201
30206	30	62	17.5	43.2	50.5	6000	7500	0.231
32206	30	62	20	51.8	63.8	6000	7500	0.287
33206	30	62	25	63.8	75.5	6000	7500	0.342
30306	30	72	21	59	63	5600	7000	0.387
23334	170	360	120	-	-	-	-	-
31306	30	72	21	52.5	60.5	5600	7000	0.392
32306	30	72	27	81.5	96.5	5600	7000	0.562
329/32	32	52	14	23.8	32.5	6300	8000	0.106
320/32	32	58	17	36.5	49.2	6000	7500	0.187



AUTO bearings:


BEARING NUMBER

45449/10

12649/10

48548/10

69345/10

11949/10

603049/11

603049/12

300849/11

32207

32209

32009

30207

30208

802048/11

DAC3874/30

DAC3873/40

DAC3871/33

DAC3871/39

DAC4074/42

DAC40741/36

DAC4382/45

DAC4072/37

DAC4272/38

DAC4280/45

DAC4584/39

DAC3272/45

Wafang Dian Bearing Advantage

1. Material Advantage
All the material for Wafang Dian bearing are from the best suppliers in China.

2. Processing Advantage
we can guarantee the time spent and quality of every processing. We can do three times tempering to stabilize the dimensions of the bearings, which is quite different from other bearings manufacturers.

3. Quality control advantage
All the bearing parts are 100% strictly inspected before and during production including Metallurgical testing, crack detection, roundness, hardness, roughness and g++eometric dimensions.

4. All of bearings meet the ISO international standard.

5. Appearance Technology Advantage
we can provide light chamfer, black chamfer, black chamfer of the rollers. The bearings are produced all according to customer's requirements.

6. Service Advantage
Your satisfaction is our biggest goal. From quotation to the final packing and transport, we provide the quickest and most satisfactory services to every customer.



Why to choose Wafang Dian Bearing?

1. World Class Bearing:We provide our customers with all type of indigenous
     bearing with world class quality.
2. OEM or Non Stand Bearings: Any requirement for Non-standard bearings is
      Easily Fulfilled by us due to its vast knowledge and links in the industry. It
     specializes in.
3. Genuine products With Excellent Quality: Company has always proved the
     100% quality products it provides with genuine intent.
4.After Sales Service and technical Assistance: Company provides after sales
   service and technical assistance as per the customers requirement and
   needs.
5. Quick Delivery: The company provides just-in-time delivery with its
     streamlined supply chain.
6. Cost Saving: We provide long-life, shock-resistant and high reliability
      bearings with excellent quality and better performance. Resulting in
      increased cost saving.
7.Attending customer queries promptly: We believe that if customer are
      satisfied then it proves our worth well. Customers are always given quick
     support.


Wafang Dian Bearing Marketing Routes:

1.B2B webiste.
2.Google promotion.
3.Shipflag Shops.
4.Trade Fair and Exhibitions in domestic and aboard.


How to order?

1.Send us inquiry.
2.Order Samples after quotation confirmed.
3.Place bulk order after samples confirmed.
4.Prepare for shipment and custom clearance.


Inquiries and orders from new and old client's are always warmly welcomed !

Please contact us freely.

Thank you !
