Product Description
quick Details
| Structure: | Taper | Type: | Roller | Brand Name: | LYAZ/ NEUTRAL |
| Bore Size: | 60 mm | Outside Diameter: | 95 mm | Model Number: | 32012 |
| Precision Rating: | P0,P5,P6 | Seals Type: | OPEN | Number of Row: | Single Row |
| Place of Origin: | China (Mainland) | Noise: | V2, V3 | Cage Material: | Steel, Nylon |
| OEM Service: | Approval |
Packaging & Delivery
| Packaging Details: | 1.Industrial packaging: plastic bag + kraft paper + carton + plywood pallets; plastic tube + carton + plywood pallets; 2. Commercial packing: 1pcs/plastic bag + color box + carton + plywood pallets 3. According to your requirement |
| Delivery Detail: | 3~25 DAYS |
Specifications
Taper Roller Bearing
Model: 32012
Material: Chrome steel/GCr15
Reach ISO/ABMA/JIS/DIN standards!

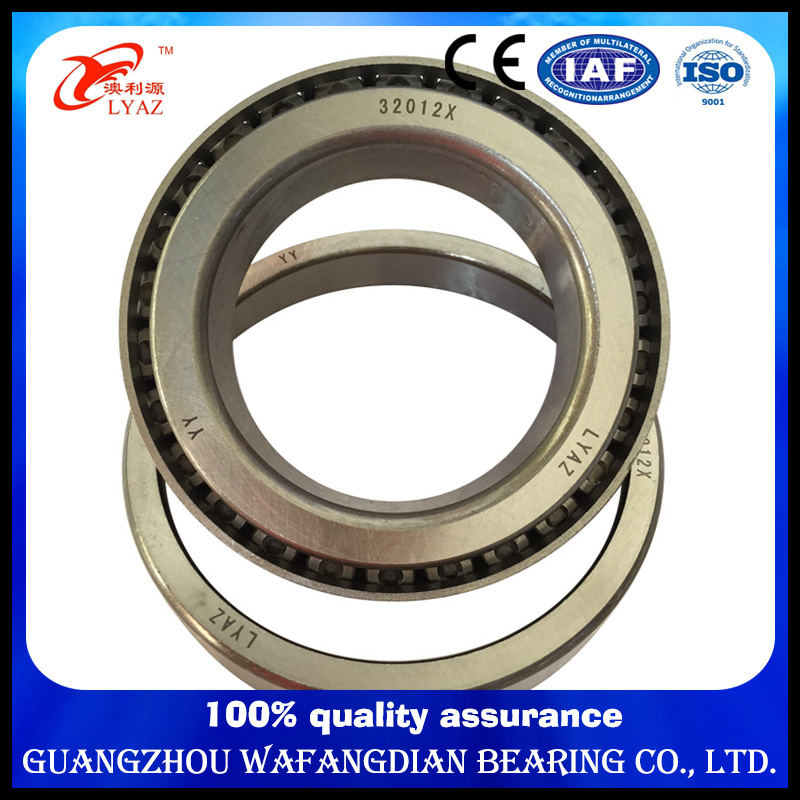

Single row Taper Roller Bearing 32012
* Descriptions of Taper Roller Bearing
Single row tapered roller bearing is the most basic and widely used tapered bearing. It consists of the cone assembly and the cup. It is usually fitted as one of an opposing pair. During equipment assembly, single row bearings can be set to the required clearance (endplay) ro preload condition to optimize performance.
* Specification of Taper Roller Bearing 32012
| 32 Series | Dimensions (mm) | Load ratings | |
| Type | d | D | B | C | Limit Speed | Reference Speed | Weight
(kg) |
| 32012 | 60 | 95 | 23 | 17.5 | 6700 | 4000 | 0.68
|
TAPER ROLLER BEARING 32012
30202 series | 30202 30203 30204 30205 30206 30207 30208 30209 30210 30211 30212 30213 30214 30215 30216 30217 30218 30219 30220 30221 30222 30224 30226 30228 30230 30232 30236 30240 30244 |
30302 series | 30302 30303 30304 30305 30306 30307 30308 30309 30310 30311 30312 30313 3031430315 30316 30317 30318 30319 30320 30321 30322 30324 30326 30328 30330 30332 30325 |
32204 series | 32204 32205 32206 32207 32208 32209 32210 32211 32212 32213 32214 32215 32216 32217 32218 32219 32220 32221 32222 32224 32226 32228 3223032232 32236 32238 32240 32244 |
32303 series | 32303 32304 32305 32306 32307 32308 32309 32310 32311 32312 32313 32314 32315 32316 32317 32318 32319 32320 32321 32322 32324 32326 32330 32334 |
31303 series | 31303 31304 31305 31306 31307 31308 31309 31310 31311 31312 31313 31314 31315 31316 31317 31318 31319 31320 31324 31326 31328 31332 |
32004 series | 32004 32005 32006 32007 32008 32009 32010 32011 32012 32013 32014 32015 32016 32017 32018 32019 32020 32021 32022 32024 32026 32028 32030 32032 32034 32036 32038 32040 32044 32048 32052 32056 32060 32064 |
32907 series | 32907 32910 32912 32913 32914 32915 32916 32917 32918 32919 32920 32922 32926 32928 32930 32932 32934 32938 32940 32944 32948 32952 32956 32960 32964 |
33005 | 33005 33006 33007 33008 33009 33010 33011 33012 33013 33014 33015 33016 33017 33018 33019 33020 33021 33022 |
33206 series | 33206 33207 33208 33209 33210 33211 33212 33213 33214 33215 33216 33217 33218 33219 33220 33221 |
33108 series | 33108 33109 33110 33111 33112 33113 33114 33115 33116 33117 33118 33119 |
| Taper roller bearing | |
| |
| Model | Dimensions(mm) | Weight(kg) | Model | Dimensions(mm) | Weight(kg) | |
| d | D | T | d | D | T | |
| 30202 | 15 | 35 | 11.75 | 0.053 | 32207 | 35 | 72 | 24.25 | 0.456 | |
| 30203 | 17 | 40 | 13.25 | 0.079 | 32208 | 40 | 80 | 24.75 | 0.549 | |
| 30204 | 20 | 47 | 15.25 | 0.127 | 32209 | 45 | 85 | 24.75 | 0.602 | |
| 30205 | 25 | 52 | 16.25 | 0.157 | 32210 | 50 | 90 | 24.75 | 0.644 | |
| 30206 | 30 | 62 | 17.25 | 0.238 | 32211 | 55 | 100 | 26.75 | 0.86 | |
| 30207 | 35 | 72 | 18.25 | 0.34 | 32212 | 60 | 110 | 29.75 | 1.18 | |
| 30208 | 40 | 80 | 19.75 | 0.438 | 32213 | 65 | 120 | 32.75 | 1.55 | |
| 30209 | 45 | 85 | 20.75 | 0.488 | 32214 | 70 | 125 | 33.25 | 1.66 | |
| 30210 | 50 | 90 | 21.75 | 0.558 | 32215 | 75 | 130 | 33.25 | 1.72 | |
| 30211 | 55 | 100 | 22.75 | 0.736 | 32216 | 80 | 140 | 35.25 | 2.13 | |
| 30212 | 60 | 110 | 23.75 | 0.93 | 32217 | 85 | 150 | 38.5 | 2.64 | |
| 30213 | 65 | 120 | 24.75 | 1.18 | 32218 | 90 | 160 | 42.5 | 3.41 | |
| 30214 | 70 | 125 | 26.25 | 1.3 | 32219 | 95 | 170 | 45.5 | 4.22 | |
| 30215 | 75 | 130 | 27.25 | 1.43 | 32220 | 100 | 180 | 49 | 5.05 | |
| 30216 | 80 | 140 | 28.25 | 1.69 | 32221 | 105 | 190 | 53 | 6.26 | |
| 30217 | 85 | 150 | 30.5 | 2.12 | 32222 | 110 | 200 | 56 | 7.35 | |
| 30218 | 90 | 160 | 32.5 | 2.6 | 32304 | 20 | 52 | 22.25 | 0.241 | |
| 30219 | 95 | 170 | 34.5 | 3.13 | 32305 | 25 | 62 | 25.25 | 0.376 | |
| 30220 | 100 | 180 | 37 | 3.78 | 32306 | 30 | 72 | 28.75 | 0.57 | |
| 30221 | 105 | 190 | 39 | 4.52 | 32307 | 35 | 80 | 32.75 | 0.765 | |
| 30222 | 110 | 200 | 41 | 5.28 | 32308 | 40 | 90 | 35.25 | 1.05 | |
| 30224 | 120 | 215 | 43.5 | 6.28 | 32309 | 45 | 100 | 38.25 | 1.42 | |
| 30226 | 130 | 230 | 43.75 | 6.83 | 32310 | 50 | 110 | 42.25 | 1.88 | |
| 30302 | 15 | 42 | 14.25 | 0.098 | 32311 | 55 | 120 | 45.5 | 2.39 | |
| 30303 | 17 | 47 | 15.25 | 0.134 | 32312 | 60 | 130 | 48.5 | 2.96 | |
| 30304 | 20 | 52 | 16.25 | 0.172 | 32313 | 65 | 140 | 51 | 3.6 | |
| 30305 | 25 | 62 | 18.25 | 0.27 | 32005X | 25 | 47 | 15 | 0.116 | |
| 30306 | 30 | 72 | 20.75 | 0.403 | 32006X | 30 | 55 | 17 | 0.172 | |
| 30307 | 35 | 80 | 22.75 | 0.538 | 32007X | 35 | 62 | 18 | 0.23 | |
| 30308 | 40 | 90 | 25.25 | 0.758 | 32008X | 40 | 68 | 19 | 0.28 | |
| 30309 | 45 | 100 | 27.25 | 1.01 | 32009X | 45 | 75 | 20 | 0.354 | |
| 30310 | 50 | 110 | 29.25 | 1.28 | 32010X | 50 | 80 | 20 | 0.38 | |
| 30311 | 55 | 120 | 31.5 | 1.63 | 32011X | 55 | 90 | 23 | 0.567 | |
| 30312 | 60 | 130 | 33.5 | 2.03 | 32012X | 60 | 95 | 23 | 0.608 | |
| 30313 | 65 | 140 | 36 | 2.51 | 32013X | 65 | 100 | 23 | 0.646 | |
| 30314 | 70 | 150 | 38 | 3.03 | 32014X | 70 | 110 | 25 | 0.869 | |
| 30315 | 75 | 160 | 40 | 3.63 | 32015X | 75 | 115 | 25 | 0.925 | |
| 30316 | 80 | 170 | 42.5 | 4.27 | 32016X | 80 | 125 | 29 | 1.32 | |
| 30317 | 85 | 180 | 44.5 | 5.08 | 32017X | 85 | 130 | 29 | 1.38 | |
| 30318 | 90 | 190 | 46.5 | 5.67 | 32018X | 90 | 140 | 32 | 1.78 |
|
Why to choose Wafang Dian Bearing?
1.Large and stable manufactuering and supply ability in accordance with ISO9001 Standards.
2.Competitive price.
3.Professional Export Service.
4.OEM & ODM orders are warmly welcomed.Your logo,design,color and various requests can be made .
5.Strict quality check and control.
6.Payment by T/T,Sight L/C,Paypal,Westunion are acceptable.
7.CE,SGS,ECO-friendly materials.Reach/ISO/ABMA/JIS/DIN standards!
8.Samples are available before orders.
Wafang Dian Bearing Marketing Routes:
1.B2B webiste.
2.Google promotion.
3.Shipflag Shops.
4.Trade Fair and Exhibitions in domestic and aboard.
How to order?
1.Send us inquiry.
2.Order Samples after quotation confirmed.
3.Place bulk order after samples confirmed.
4.Prepare for shipment and custom clearance.
Inquiries and orders from new and old client's are always warmly welcomed !
Please contact us freely.
Thank you !
Guangzhou Wafangdian Bearing Co., Ltd. is a professional bearing company, belongs to Liaoning Wafang Dian Aoli Yuan Bearing Manufacturing Co. Ltd, , locates in Wafangdian north Gongji street, covers an area of more than 50000 square meters, over 300 staffs work in the factory. The annual production is more than 10 million sets of various bearings.
We have more than 30 years bearing manufacturing experience, execute strict and responsible quality control. Our products are: Deep groove ball bearing, tapered roller bearing, cylindrical roller bearing, spherical roller bearing, thrust ball bearing, needle bearing, self-aligning ball bearing, angular contact ball bearing, pillow block bearing, wheel hub bearing, clutch bearing, composite bearing and all kinds of non-standard bearings. Our bearings are low noise, long working life, high precision, high speed, heavy duty, good temperature resistance, widely used in automobiles, machine tools, mining, oil field, paper making, cement plant, power plant, steel mill, construction machinery and many other industries.
We are strong in research and development. We can design and produce bearings with drawings or samples to meet customers' specific needs. OEM services are also provided with customers' authorization. Small orders are accepted, free samples are available. We guarantee high quality, competitive prices, on-time delivery, fast response. Welcome all distinguished guests at home and abroad to contact us for business, looking forward to working with you hand in hand, create more brilliant future together!
