Name: 4X4 off -Road Electric Winch with 9500 Lb Pulling
Brand: ibuyautoparts.com
SKU: 733767322
Availability: InStock
Rating: 4.7 (79 reviews)

Price:	US $ 235-254PCS
Min Order:	24PCS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	XM-605
Weight:	37.50 Kg
Warterproof:	IP67
Durable Cycle:	10000 Times
Warranty:	13 Months
Pulling:	9500lb
Type:	Electric Winch
Power Type:	Series Motor DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All
Working Voltage Of Electric Winch:	12 or 24 V
Electric Winch Model:	Truck Jeep Trailer

Product Description

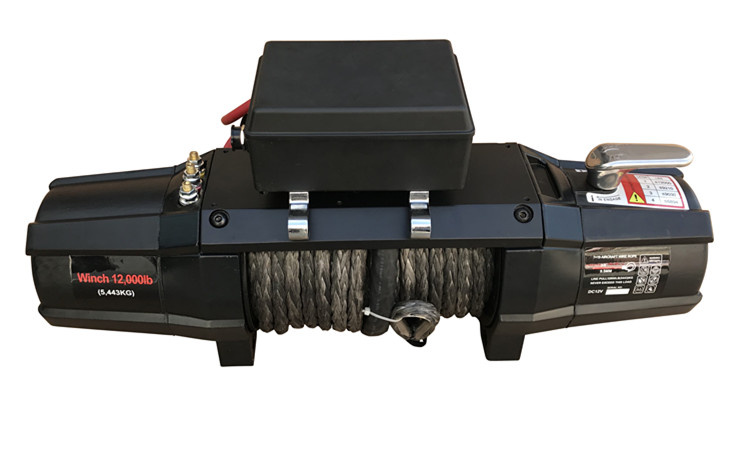

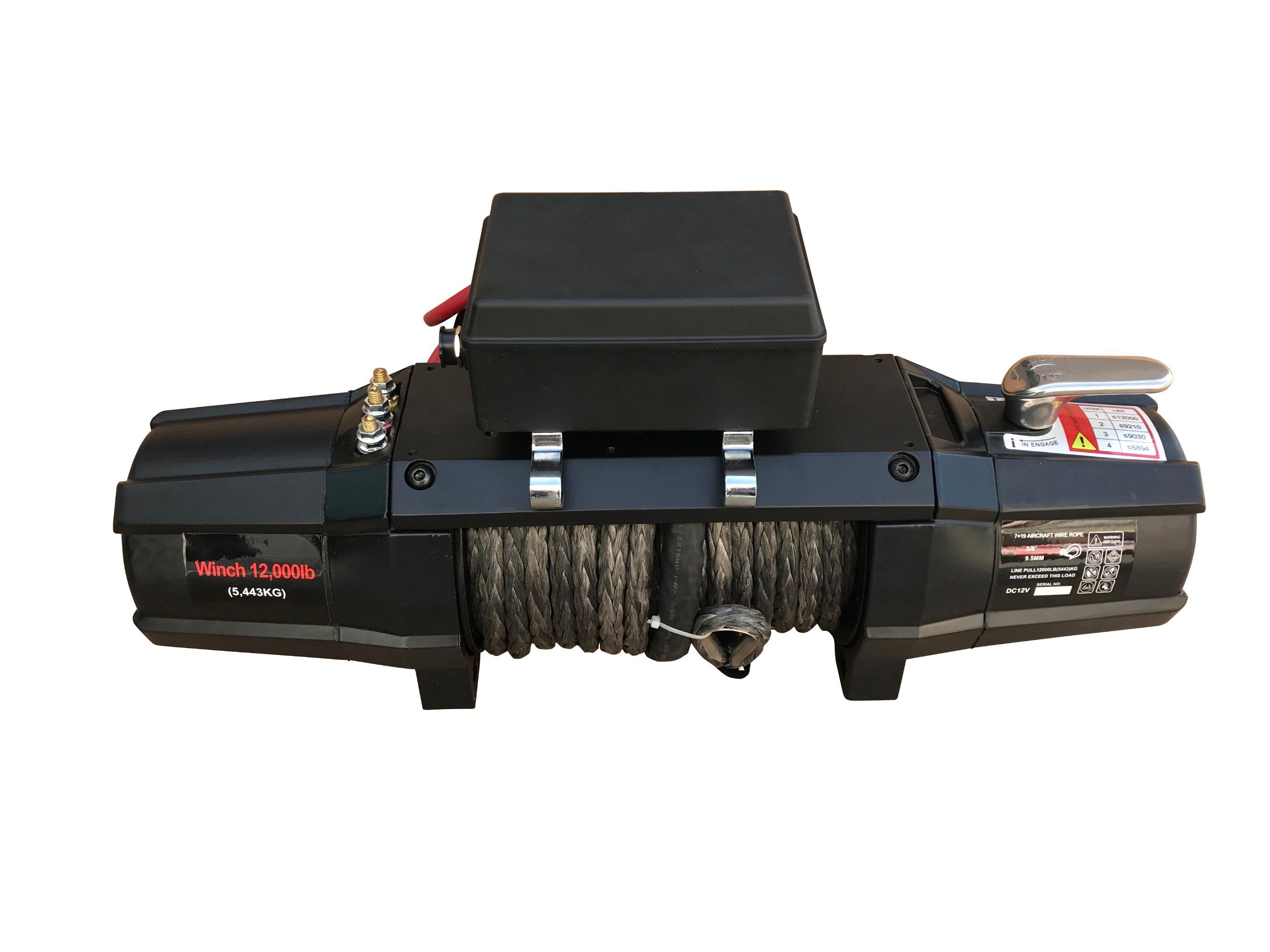

Ultimate performance winch for 4x4 off road riders .
New unique surface -look & symmetrical design ,All aluminum cover on this new winch body with all waterproof .Fast speed & high torque & big horsepower sealed series wound motor . Extra spare part of control box design .All steel gears sealed with 1.5 modular .Gear ratio : 216: 1, to increase the strength and durable .The forged steel clutch handle looks nice and powerful. Mature "Engage "and "Disengage" clutch run smoothly and quietly.

High quality air-plane plugs .Both wireless and wired remote controls are available .waterproof .Two modes of controlling easily .It's worth having it for off road lovers!

9500lbs features and specifications

Single line rated pull	9500lbs(4318kgs)
Motor	5.5hp/4.0kw,series wound
Control	Remote switch
Gear train	3 stage planetary
Gear reduction ratio	216:1
Braking	Automatic load-holding brake
Drum size	Diameter 2.5"(63.5mm)×length9.6"(224mm)
Cable	21/64"(8.3mm)×85.3'(26m)
Remote control switch	Included
Extra wireless remote	Optional
Battery	Recommended:650CCA
Net weight	23.8kgs
Overall dimension (length×width×height)	23.9"×10.6" ×7.0"(607×268×179mm)
Mounting bolt pattern	10"×4.5"(254×114.3mm)

Pull, speed, amps

Line pull lbs(kgs)	Line speed ft/min(m/min)	Current (Amps)
0	205.5(5.22)	65
2000(907)	17.1(4.34)	125
4000(1818)	122.5(3.1)	180
6000(2727)	105.6(2.68)	230
8000(3636)	90.5(2.3)	300
9500(4318)	84(2.13)	370

Line pull and rope capacity in each layer

Layer	Rated line pull lbs(kgs)	Total rope on drum ft(M)
1	9500(4318)	16.3(5.0)
2	7700(3493)	39.3(12.0)
3	6500(2954)	65.6(20.0)
4	5610(2585)	92(28.0)

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!

OEM service on winch is available all the time.

We are looking forward to hearing from you.

Thanks
