4X4 off Road Electric Winch with 12000 Lb Pulling

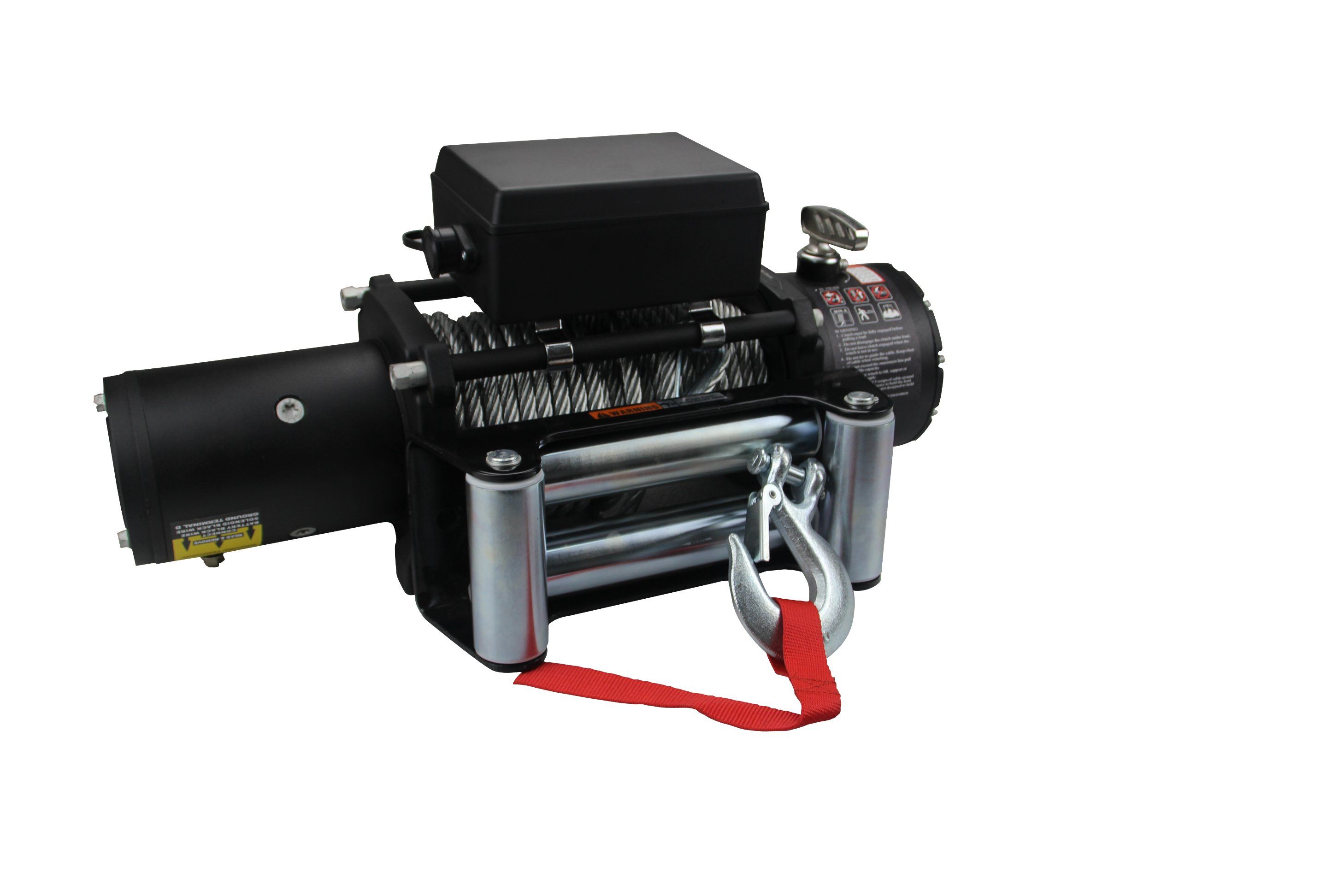

Name: 4X4 off Road Electric Winch with 12000 Lb Pulling
Brand: ibuyautoparts.com
SKU: 838955255
Availability: InStock
Rating: 4.6 (99 reviews)

Price:	US $ 159-166PCS
Min Order:	24PCS
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

It's the most popular model in the current market .Classic design ,excellent performance with not a big price ,which are the top choice for customers . high quality with brute torque series wound motor , 3 stage gear driven- train , Sliding ring gear for "engage" and "disengage" . Working at extreme hard condition , low noise ,small amps .Top recovery equipment for off-road . They are available of pulling ranges from 8500lbs-12500lbs . Welcome to further inquiries !

Synthetic rope & aluminum fairlead are available for this model !

12000LBS Features and Specifications :

Part number : XM-TE934

Performance: DC 12 V OR 24 V

Single line rated pull: 12,000lbs ( 5436kg)

Motor: 6.65hp/5.0kw series -wound

Braking action: Automatic locking with motor

Clutch: Sliding ring gear

Gear train : 3 -stage planetary

Gear ratio: 265: 1

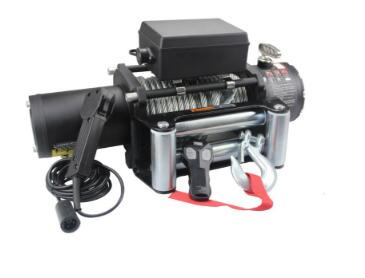

Remote Switch: 12ft ,wire remote control with black hand bar , wireless remote kits included

Battery: Recommended:650CCA minimum for winching

Battery Leads: 2 Gauge 72"(1.83m)

Fairlead: 4-way roller fairlead (Aluminum Hawse available )

Synthetic rope: Ф10 x 85 ft (Ф10x 25 m )

Weight: 92 pound (39kg )

Overall dimension: 21.3" x 8.6" x 6.3" (550mm x 220mm x 160mm)

Mounting bolt pattern: 10" x 4.5" (254mm x 114.3mm)

Line Speed And Amp Draw ( First Layer )

Line Pull	lb	NO	4000	6000	8000	10000	12500
Line Pull	kg	LOAD	1812	2718	3624	4304	5665
Line speed	ft/min	22.8	11.8	10.2	8.5	7.0	6.0
Line speed	m/min	6.95	3.6	3.6	2.6	2.13	1.83
Motor current	Amps	78	166	207	248	310	372

Line Pull And Cable Capacity

Layer of cable		1	2	3	4
Rated line pull per layer	lb	12500	9927	8250	7045
Rated line pull per layer	kg	5665	4497	3737	3191
Length of cable on drum	ft	17.8	38.2	64.2	72
Length of cable on drum	m	5.93	12.73	19.57	24.00

Prod Model:	XM-TE934
Weight:	37.50 Kg
Warterproof:	IP67
Durable Cycle:	10000 Times
Warranty:	13 Months
Pulling:	12000lb
Type:	Electric Winch
Power Type:	Series Motor DC
Certification:	RoHS
Pull Direction:	Forward and Backward
Brand:	Xi Man
Applicable Environment:	All
Working Voltage Of Electric Winch:	12 or 24 V
Electric Winch Model:	Truck Jeep Trailer

Shanghai Xi Man company is a credit and professional winch manufacturer in Shanghai, China. We starts our business from Aluminum Die Casting and Winch parts developing and offering. Along with further developments, we gradually acess to winch sector. We have business on winch designing and developing, With many years hard working and development, we achive many winch models supplying. So far we can offer wide range of winch models from Utility winch, ATV& UTV winch and Jeep and Truck winch, 4X4 trailer winch...etc. For more, welcome to contact and visit us!
