44mm (1.7'') Professional Hf Driver H44/8152 Compression Speakers Driver

44mm (1.7'') Professional Hf Driver H44/8152 Compression Speakers Driver
Price: Negotiable/Piece
Min Order: 30/Piece
Pay Type: T/T
Contact Supplier
Showroom Product Company Profile

Product Description

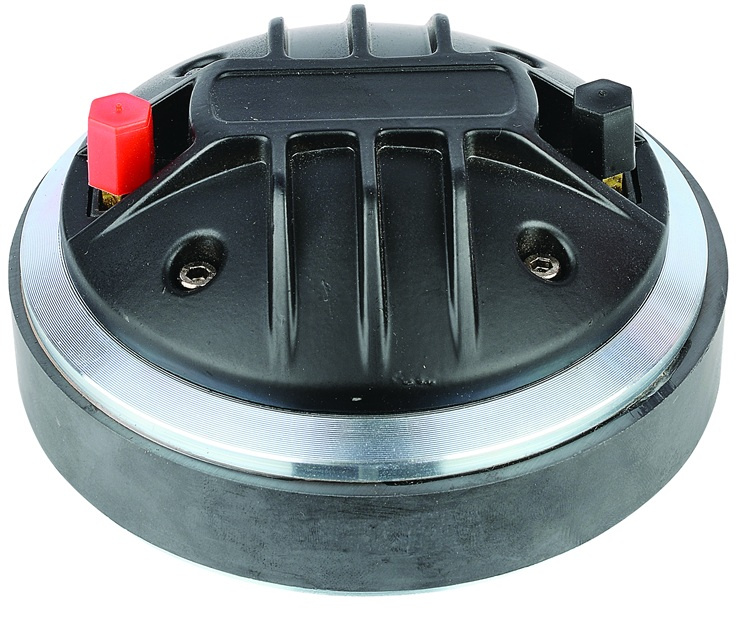

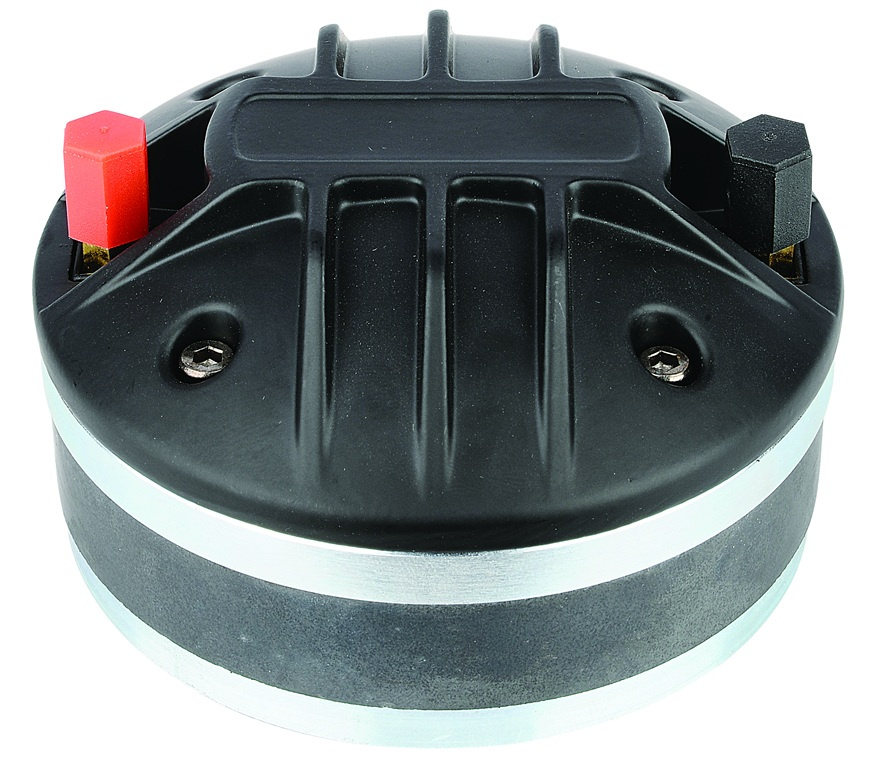

44mm Professional HF Driver H44/8152 compression speaker driver
Product main features:
1'' exit throat
100W continuous program power handling
106dB sensitivity 1w/1m
900Hz-18Khz frequency range
Polyimide diaphragm
44mm(1.7'') edgewound Aluminum
Alumium rear cover
Optimized geometry phase plug


Introduction:
We are a PA speaker factory of more than 13 years in Panyu,Guangzhou,China,occupying 2000 square meters with 3 production lines.We make Pro audio speakers from small sizes upto 24 inch.

R& D Capacity:
In the R&D, Hipower's experienced engineers and technicians carry out researches on new materials.state-of-art components and advacned product designs with the help of an anechoic chamber,test instruments and simulation sofwares.

Markets:
Ever since 2003, we have been exporting to many countries, including Southeast Asia, Europe, North Ameria and South America.

Speaker's Details:
General Specifications
Nominal Diameter25.4/1mm/inch
Rated Impedance8ohm
Nominal Power handling50Watts
Program Power100Watts
Sensitivity(lw/lm)106dB
Frequency Range900-18kHz
Minimum Impedance(Zmin)6.8ohm
Voice Coil Diameter44/1.7mm/inch
Voice Coil MaterialFlat  Copper Clad Aluminum
Voice Coil Winding FormerKapton
Phase Plug MaterialComposite
Flux Density1.4T
Magnet Material/MassCeramic

Mounting Information
Overall Diameter101mm
Overall Depth57.5mm
Net Weight1.5kg
   4xM6 holes,90°on 76mm diameter

Type: Speaker
Speaker Design: Tweeter
Sound Frequency: High Pitch
Connection Mode: Double Wire
Contact Point: With Contact Point
Energy Exchanging Mechanism: Electromagnetic
Shape: Round
Material: Aluminum and Plastic
Guangzhou HiPower Audio Co., Ltd. is located in GuangZhou, China. As a head manufacturer of high quality professional speakers, our 10000sqm factory is outfitted with 6 customized production lines, allowing us to meet the needs of OEM partners.

Hipower specializes in manufacturing high-quality and reliable loudspeakers. Our product ranges consist of professional low frequency transducers, high frequency compression drivers, and Karaoke speakers.

In the R&D, our experienced engineers and technicians carry out research on new materials, state-of-the-art components and advanced product designs with the help of an anechoic chamber, test instruments and simulation software.

Since Hipower was found, we have established a high standard of quality. Our management, manufacturing and quality standards are guaranteed by the ISO9001: 2000 system in 2008.

We are looking forward to establishing long-term relationships with you.
