34mm Professional Titanium Hf Compression Speaker Driver H34/8039 Tweeter Driver, Cheap Price

Name: 34mm Professional Titanium Hf Compression Speaker Driver H34/8039 Tweeter Driver, Cheap Price
Brand: ibuyautoparts.com
SKU: 803687625
Availability: InStock
Rating: 4.3 (143 reviews)

Price:	Negotiable/Piece
Min Order:	30/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Product Description

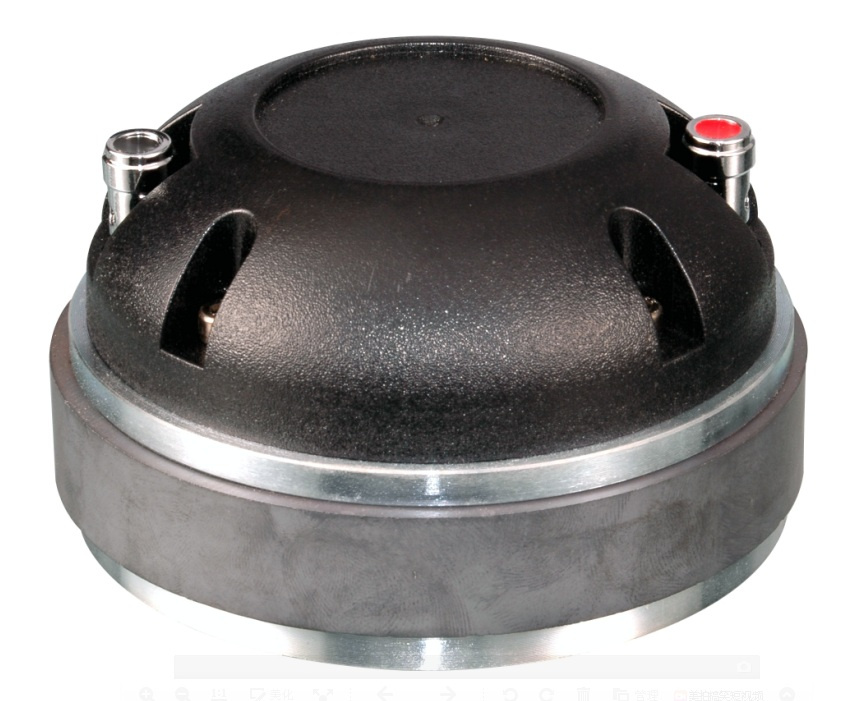

^{1.5 inch HF compression driver H34/8039 34mm speaker driver}
Product main features:
1'' exit throat
80W continuous program power handling
106dB sensitivity 1w/1m
1.2kHz-20Khz frequency range
Polyimide diaphragm
34mm(1.3'') edgewound Aluminum
Optimized geometry phase plug

Introduction:
We are a PA speaker factory of more than 13 years in Panyu,Guangzhou,China,occupying 2000 square meters with 3 production lines.We make Pro audio speakers from small sizes upto 24 inch.

R& D Capacity:
In the R&D, Hipower's experienced engineers and technicians carry out researches on new materials.state-of-art components and advacned product designs with the help of an anechoic chamber,test instruments and simulation sofwares.

Markets:
Ever since 2003, we have been exporting to many countries, including Southeast Asia, Europe, North Ameria and South America.

Speaker's Details:

General Specifications
Nominal Diameter	25.4/1	mm/inch
Rated Impedance	8	ohm
Nominal Power handling	40	Watts
Program Power	80	Watts
Sensitivity(lw/lm)	106	dB
Frequency Range	1.2k-20k	Hz
Minimum Impedance(Zmin)	7.5	ohm
Voice Coil Diameter	34/1.3	mm/inch
Voice Coil Material	Copper Clad Aluminum
Voice Coil Winding Former	Kapton
Phase Plug Material	Composite
Flux Density	1.5	T
Magnet Material/Mass	Ceramic/0.52

Mounting Information
Overall Diameter	100	mm
Overall Depth	57.5	mm
Net Weight	1.1	kg
4xM5 holes,90°on 69mm diameter

Prod Model:	H34/8039 driver
Type:	Speaker
Speaker Design:	Tweeter
Sound Frequency:	High Pitch
Connection Mode:	Double Wire
Contact Point:	With Contact Point
Energy Exchanging Mechanism:	Electromagnetic
Shape:	Round
Material:	Aluminum and Plastic

Guangzhou HiPower Audio Co., Ltd. is located in GuangZhou, China. As a head manufacturer of high quality professional speakers, our 10000sqm factory is outfitted with 6 customized production lines, allowing us to meet the needs of OEM partners.

Hipower specializes in manufacturing high-quality and reliable loudspeakers. Our product ranges consist of professional low frequency transducers, high frequency compression drivers, and Karaoke speakers.

In the R&D, our experienced engineers and technicians carry out research on new materials, state-of-the-art components and advanced product designs with the help of an anechoic chamber, test instruments and simulation software.

Since Hipower was found, we have established a high standard of quality. Our management, manufacturing and quality standards are guaranteed by the ISO9001: 2000 system in 2008.

We are looking forward to establishing long-term relationships with you.
